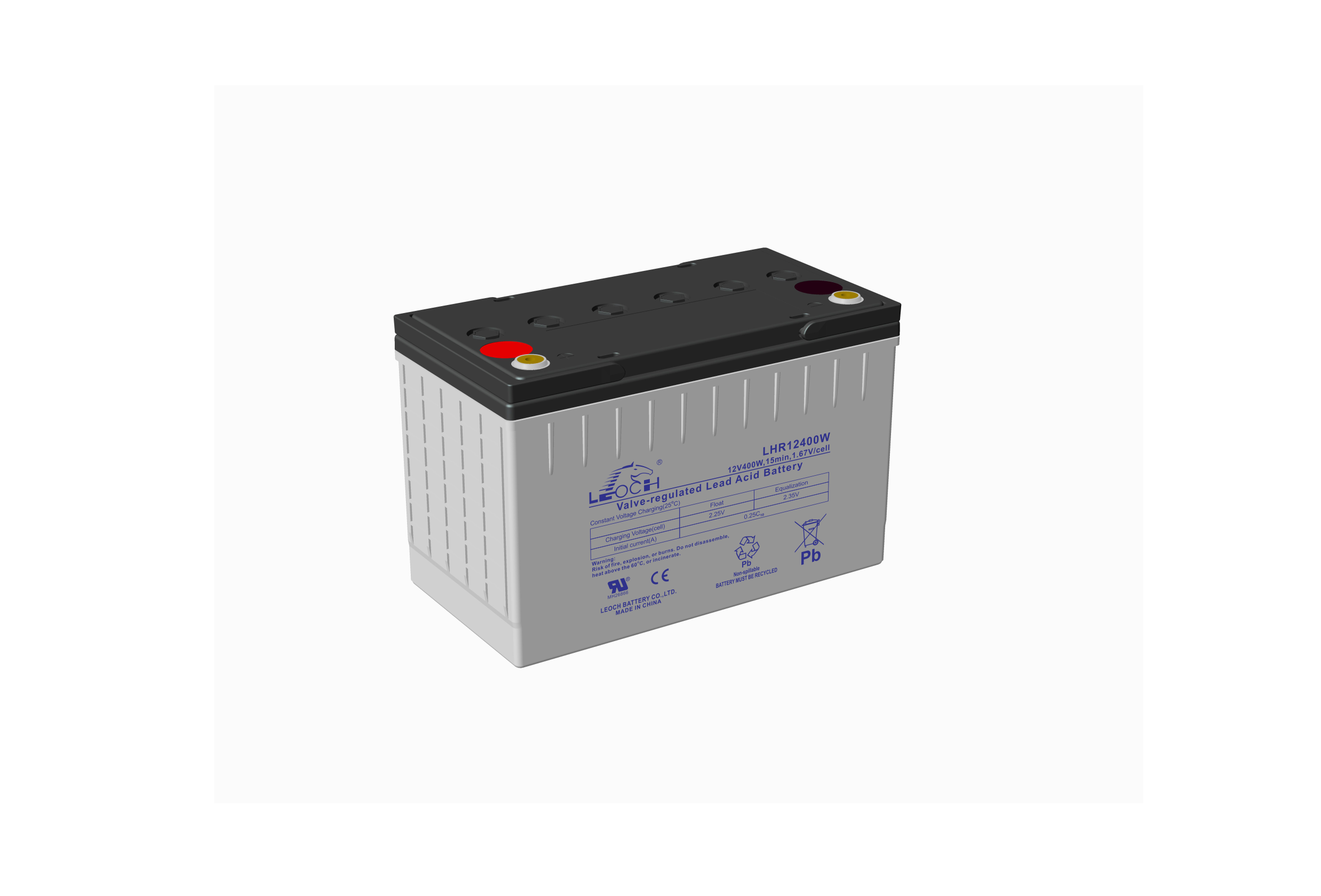

LHR Series

Special grid and plate manufacture technology, automatic manufacture line raise the life and uniformity of battery. 3D structure: optimized design of active material adhesion, fine mesh grid provides more surface area for high power output. Special paste formula, advanced welding technology to ensure excellent high power discharge capacity(W/15Mr, up 20%).

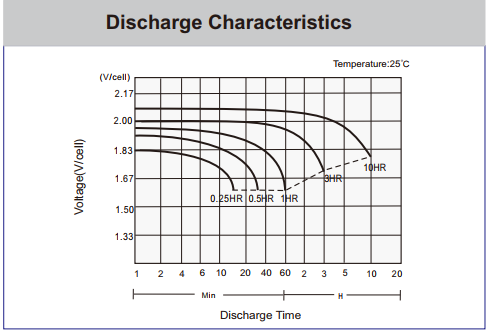

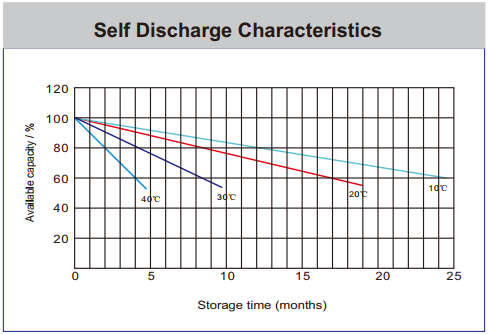

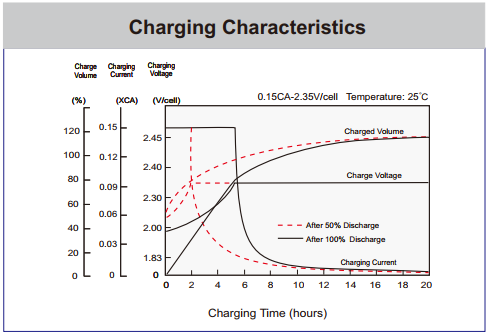

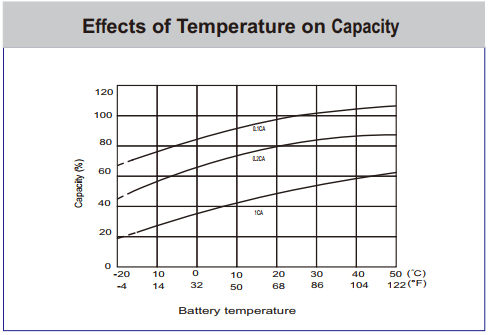

Specification Features Application Curves

12V

Model	Rated Voltage	W15min	10Hr	Length	Width	Height	TH	Gross	Terminal Type
	Rated Voltage	W15min	10Hr	Length	Width	Height	TH	Weight
	V	1.67V/cell	1.80V/cell	mm	mm	mm	mm	kg
LHR1224W(A)	12	24	6.56	151	65	93.5	99.5	2.13	T1/T2
LHR1226W(A)	12	26	6.56	151	65	93.5	99.5	2.17	T1/T2
LHR1228W(A)	12	28	7.02	151	65	93.5	99.5	2.24	T1/T2
LHR1232W(A)	12	32	7.49	151	65	93.5	99.5	2.31	T1/T2
LHR1234W(A)	12	34	7.49	151	65	93.5	99.5	2.35	T1/T2
LHR1236W(A)	12	36	8.43	151	65	93.5	99.5	2.46	T1/T2
LHR1224W	12	24	5.3	90	70	101	107	1.88	T1/T2
LHR1226W	12	26	6.51	151	65	93.5	99.5	2.08	T1/T2
LHR1230W	12	30	7	151	65	93.5	99.5	2.38	T1/T2
LHR1235W	12	35	7.8	151	65	93.5	99.5	2.5	T1/T2

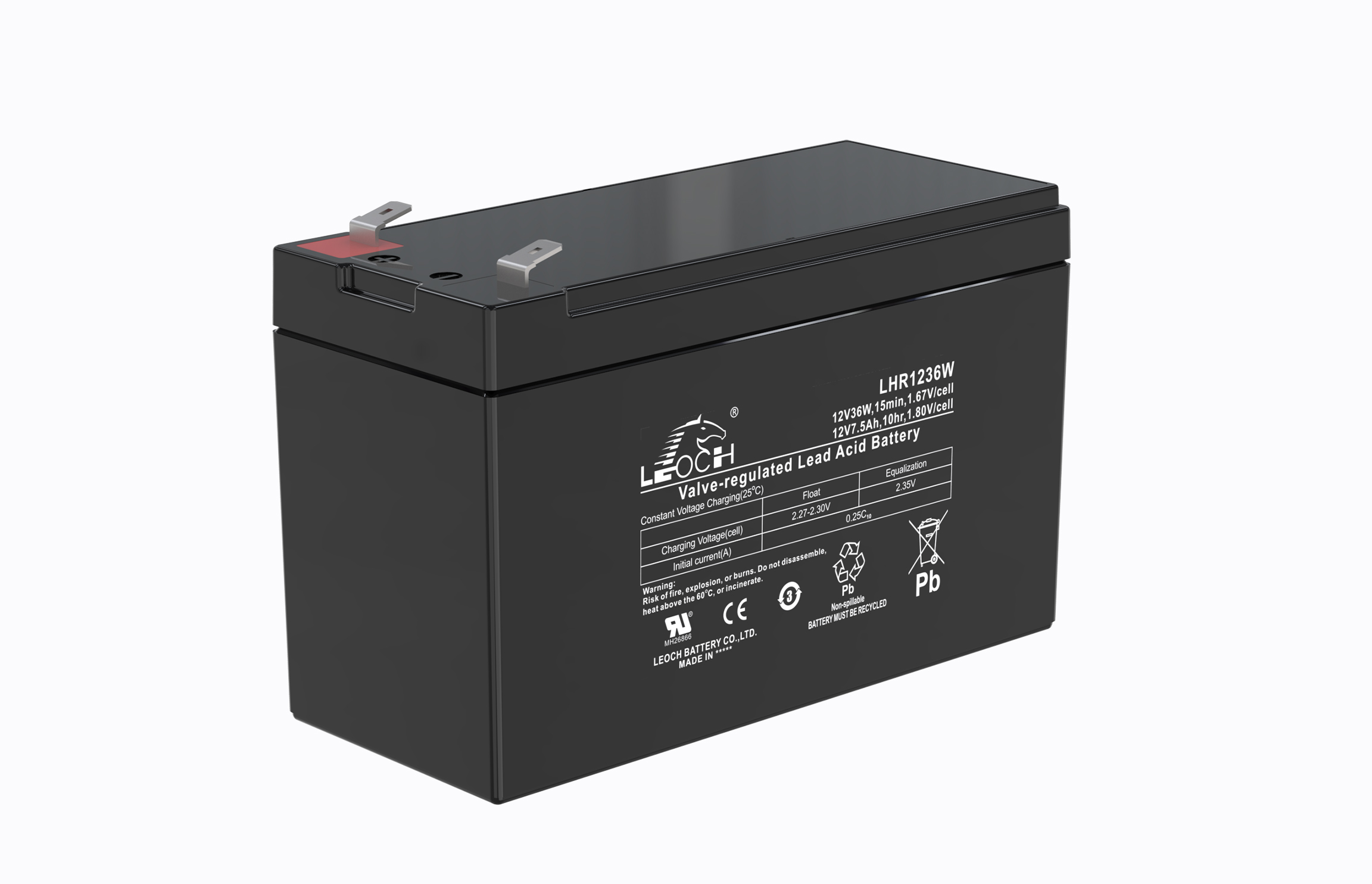

LHR1236W	12	36	7.49	151	65	93.5	99.5	2.7	T2
LHR1242W	12	42	8.43	151	65	94.5	100.5	2.80	T1/T2
LHR1255W	12	55	13	151	98	95	101	3.78	T1/T2
LHR1285W	12	85	18.6	181.5	76.5	167.5	167.5	6	T12/T12-I(M5)
LHR12120W	12	120	38	197	165	170	170	11.6	T6(M6)
LHR12160W	12	160	45	197	165	170	170	14.2	T6(M6)
LHR12185W	12	185	55	229	138	205	211	16.2	T6(M6)
LHR12215W	12	215	65	348	167	178	178	19.2	T6(M6)
LHR12255W	12	255	70	348	167	178	178	21.4	T6(M6)
LHR12300W	12	300	75	256	173	213	216	23.7	T11(M8)
LHR12330W(A)	12	330	80	293	173	213	216	26.7	T11(M8)
LHR12350W	12	350	85	293	173	213	216	27.4	T11(M8)
LHR12360W	12	360	100	330	173	213	216	30	T11(M8)
LHR12400W	12	400	100	330	173	213	216	31.2	T11(M8)
LHR12430W	12	430	100	330	173	213	216	32	T11(M8)

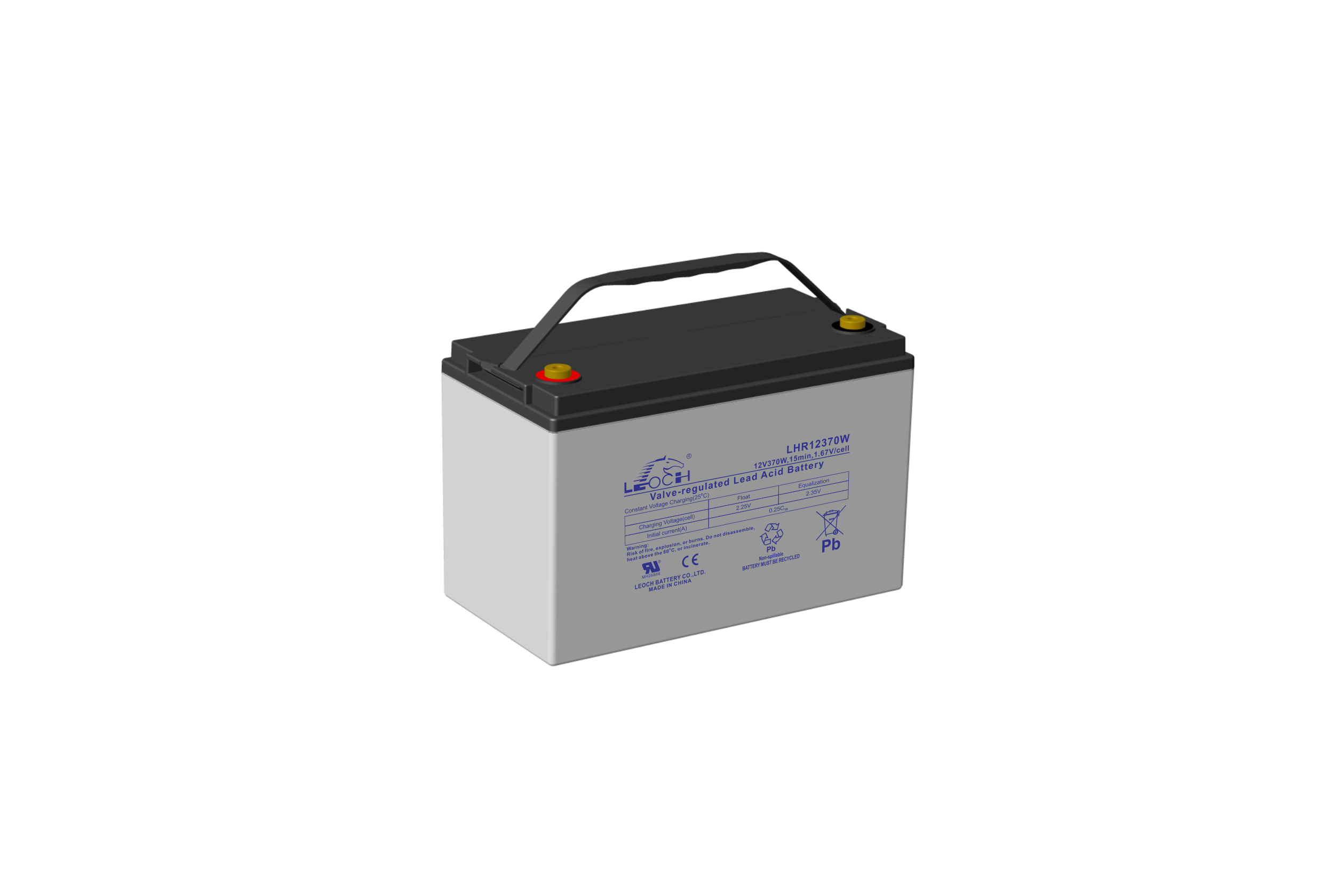

LHR12370W	12	370	100	330	173	212	220	30.7	T11(M8)
LHR12600W(A)	12	600	145	483	170	238.5	239	47.5	T11(M8)
LHR12605W	12	605	170	532	207	214	220	54.8	T11(M8)
LHR12650W	12	650	170	532	207	214	220	56.5	T11(M8)
LHR12700W(A)	12	700	180	532	207	214	220	57.5	T11(M8)
LHR12705W	12	705	190	532	207	214	220	59	T11(M8)
LHR12750W(A)	12	750	185	532	207	214	220	59.5	T11(M8)
LHR12800W	12	800	210	522	240	218	224	67	T11(M8)
LHR12820W(A)	12	820	215	522	240	218	224	69	T11(M8)
LHR12460W	12	460	120	408	177	225	225	37.5	T11(M8)
LHR12480W	12	480	115	379	174	214	217	40.5	T11(M8)
LHR12510W	12	510	140	483	170	238.5	239	43.6	T11(M8)
LHR12560W	12	560	145	483	170	238.5	239	46.5	T11(M8)
LHR12845W	12	845	225	496	259	227	233	74.5	T11(M8)
LHR12890W	12	890	235	496	259	227	233	77	T11(M8)
LHR12950W	12	950	230	521	268	220	226	77.5	T11(M8)
LHR121000W	12	1000	250	521	268	220	226	79.5	T11(M8)

Model	Rated Voltage	W15min	10Hr	Length	Width	Height	TH	Gross	Terminal Type
	Rated Voltage	W15min	10Hr	Length	Width	Height	TH	Weight
	V	1.67V/cell	1.80V/cell	mm	mm	mm	mm	kg

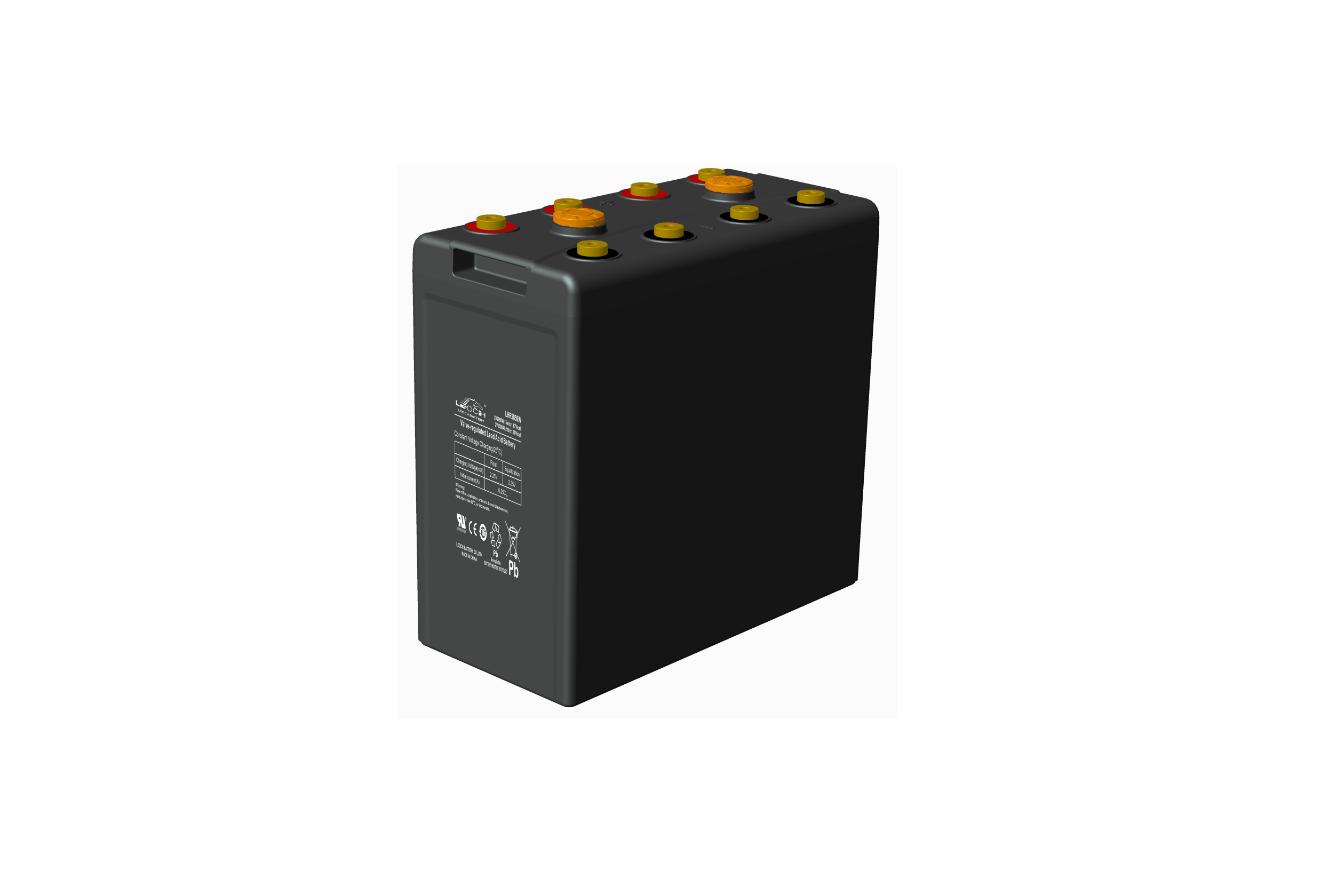

LHR500W	2	500	180	90	181	350	365	11.8	T18(M8)
LHR600W	2	600	200	90	181	350	365	12.8	T18(M8)
LHR750W	2	750	250	171	111	328	344	15	T18(M8)
LHR900W	2	900	300	124	181	350	365	18.2	T18(M8)
LHR1000W	2	1000	300	171	150	328	344	20.6	T18(M8)
LHR1200W	2	1200	400	158	181	350	365	24.1	T18(M8)
LHR1250W	2	1250	400	210	175	330	346	27.6	T18(M8)
LHR1520W	2	1520	500	210	175	330	346	30.3	T18(M8)
LHR1800W	2	1800	600	225	181	350	365	36.2	T18(M8)
LHR2000W	2	2000	600	240	175	330	346	36.7	T18(M8)
LHR2400W	2	2400	800	303	181	350	365	48.5	T18(M8)
LHR2500W	2	2500	720	300	175	330	345	46.4	T18(M8)
LHR2900W	2	2900	900	410	175	330	345	58.5	T18(M8)

Model	Rated Voltage	W15min	10Hr	Length	Width	Height	TH	Gross	Terminal Type
	Rated Voltage	W15min	10Hr	Length	Width	Height	TH	Weight
	V	1.67V/cell	1.80V/cell	mm	mm	mm	mm	kg
LHR12390FT	12	390	95	508	110	235	235	34	T6-A(M8)
LHR12550FT	12	550	140	551	110	288	288	47.9	T6-A(M8)
LHR12600FT	12	600	150	550	125	281.5	281.5	51.5	T11(M8)
LHR12700FT	12	700	180	560	125	318	318	60	T11(M8)
LHR12750FT	12	750	190	560	125	318	318	64	T11(M8)
LHR12800FT	12	800	210	541	154	322	322	75.5	T13-C(M8)
LHR12900FT	12	900	225	541	154	322	322	80	T13-C(M8)
LHR121000FT	12	1000	240	541	154	322	322	84.5	T13-C(M8)
