LDC Series

LDC battery is mainly used on various electric vehicles. It mainly includes electric bike, electric tricycles, electric bus, golf cart, tourist sightseeing vehicles, electric cleaning equipment, and they are widely used in the tourist scenic spots, hospitals, markets, industrial and mining enterprises, warehouses, docks and stations.

Specification Features Application Curves

Model	Rated Voltage	Rated Capacity(AH)			Dimension(mm)				Weight
Model	V	20hr	5hr	3hr	L	W	H	TH	kg
LDC12-13	12	13	11	10.6	152	99	97	99	3.65
LDC12-15	12	15	13.5	13	151.5	99.5	98	98.2	3.95

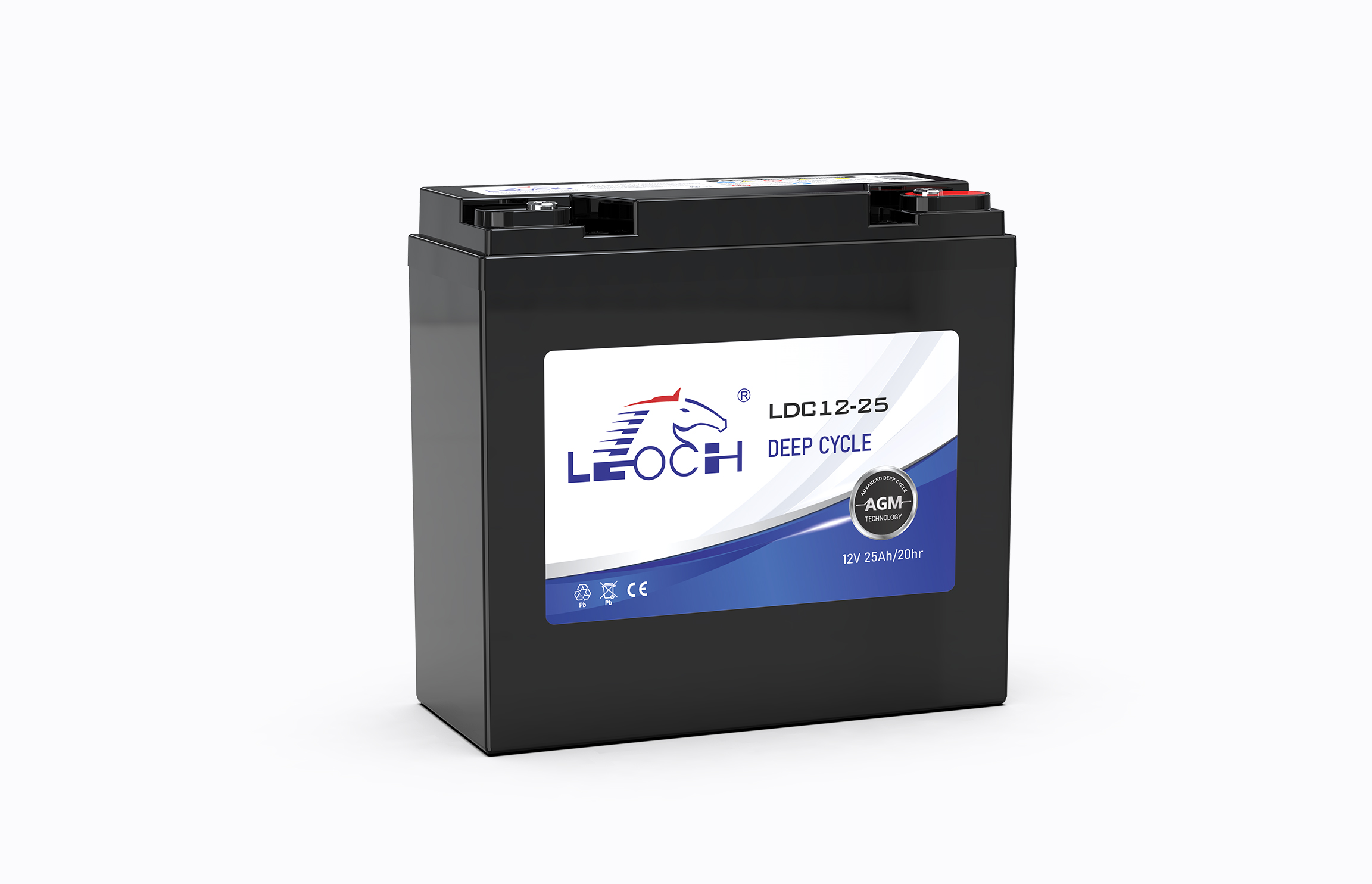

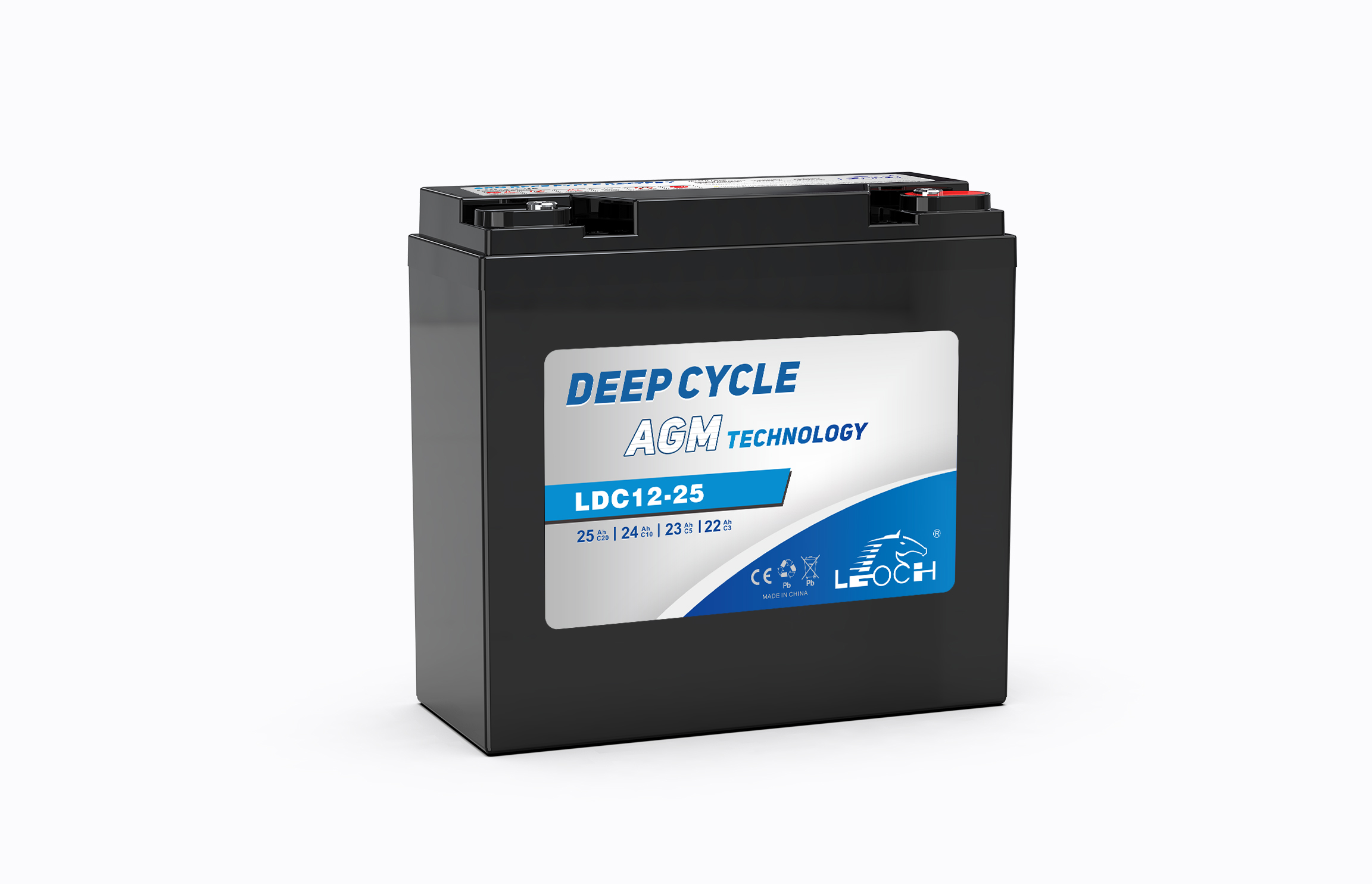

LDC12-25	12	25	22.6	21.7	181.4	77	170	170	6.4
LDC12-26	12	26	24	23	181	76.5	171	171	6.85
LDC12-26H	12	26	24	23	181	76.5	171	171	6.9
LDC12-39	12	39	35	33	195	130	164	167	11.3
LDC12-43	12	43	34	32	267.5	77.5	171	171	10.1
LDC12-44	12	44	36	34	197	166	170	170	13.4
LDC12-53	12	53	44	40	197	166	170	170	14.2
LDC12-55	12	55	48	45	223	123	175	175	13.4
LDC12-63	12	63	54	50	224	135.5	177.5	177.5	15.15
LDC12-68	12	68	57	53	229	138	210	216.5	17.5
LDC12-76	12	76	65	60	260	168	173	176	20
LDC12-90C	12	90	77	72	260	168	208	214	23.3
LDC12-90F	12	90	77	72	260	168	211.5	217.5	23.4
Parameter information subject to the contract, here for your reference only.

1.True deep cycle AGM-GEL technology-GREEN SOLUTION

2 .Over 99.99% virgin lead for grid plate

3. Carbon active material

4. Electrolyte + Gel for longer cycle life

5. Heavy duty grid/paste design for deep cycle application

6. Maintenance free, non-spillable, valve-regulated

7. Double separator configuration :long cycle life &High energy density and super anti-vibration design

8. Low self-discharge for longer shelf lifetification

1. Electric bicycle

2. Electric tricycles

3. Electric bus

4. Golf cart

5. Tourist sightseeing vehicles

6. Electric cleaning equipment

7. AWP

8. Electric scooter

9. Lawn-mower

10.Electric toys

11. Elecctric wheelchair

Leoch motive power battery

Supply the power you're looking for
