LDC Batteries are mainly used in various electric vehicles, including electric bikes (e-bikes), electric tricycles, electric buses, golf carts, tourist sightseeing vehicles, and electric cleaning equipment. They are widely used in tourist scenic spots, hospitals, markets, industrial and mining enterprises, warehouses, docks, and stations.
Contact US| Model | Rated Voltage | Rated Capacity(AH) | Dimension(mm) | Weight | |||||
| V | 20hr | 5hr | 3hr | L | W | H | TH | kg | |
| LDC12-90-G24-T | 12 | 85 | 73 | 68 | 260 | 168 | 208 | 214 | 23.5 |
| LDC12-90-G24-DT | 12 | 85 | 73 | 68 | 260 | 168 | 208 | 232.5 | 23.8 |
| LDC12-100 | 12 | 100 | 89 | 80 | 260 | 168 | 211 | 214 | 25.8 |
| LDC12-105-G27-T | 12 | 105 | 88 | 78 | 306 | 168 | 208 | 214 | 27.3 |
| LDC12-105-G27-DT | 12 | 105 | 88 | 78 | 306 | 168 | 208 | 232.5 | 27.8 |
| LDC12-115-G31-DT | 12 | 115 | 95 | 85 | 330 | 173 | 212 | 237 | 31.7 |
| LDC12-115-G31-T | 12 | 115 | 95 | 85 | 330 | 173 | 212 | 220 | 31.4 |

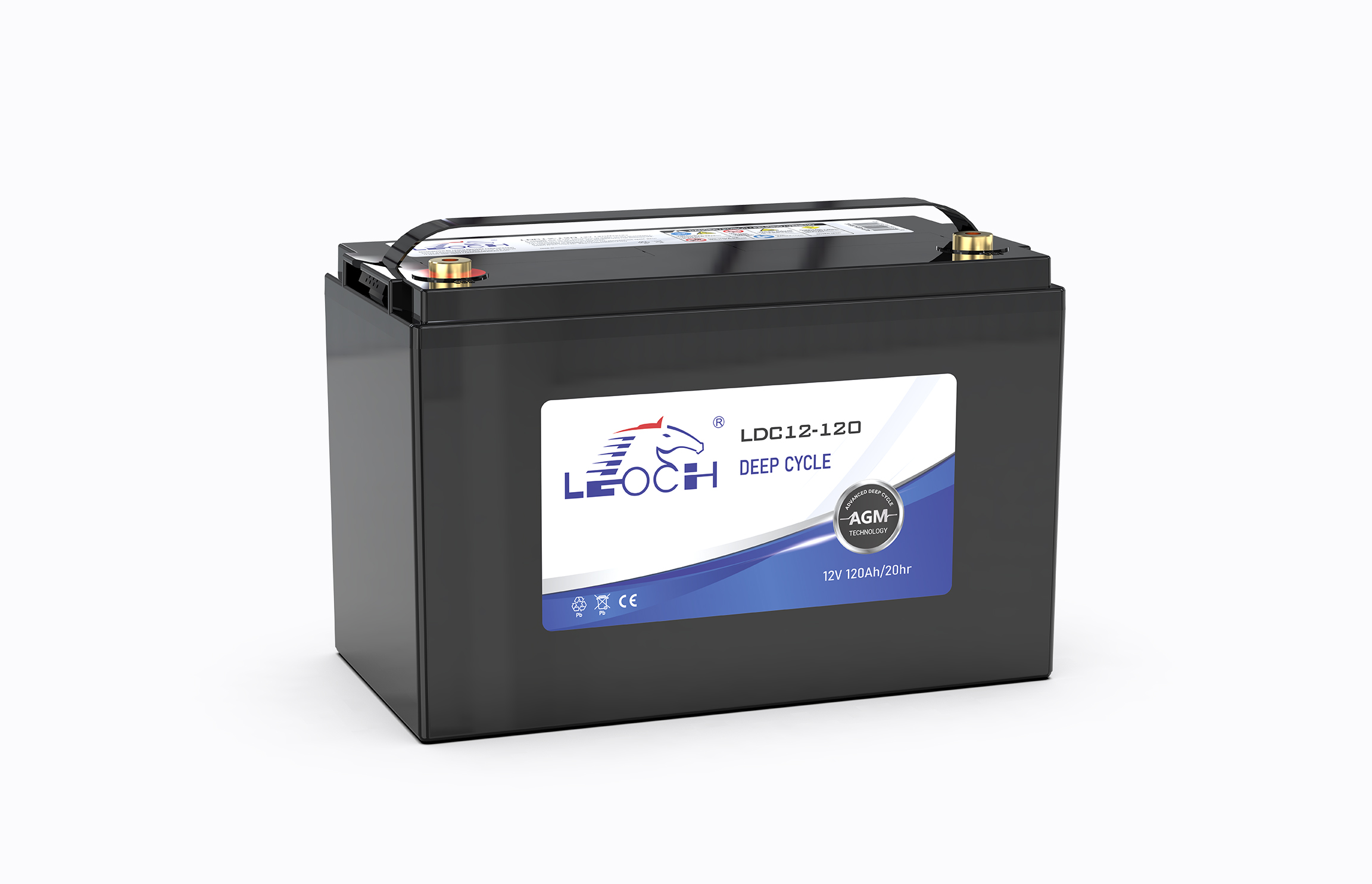

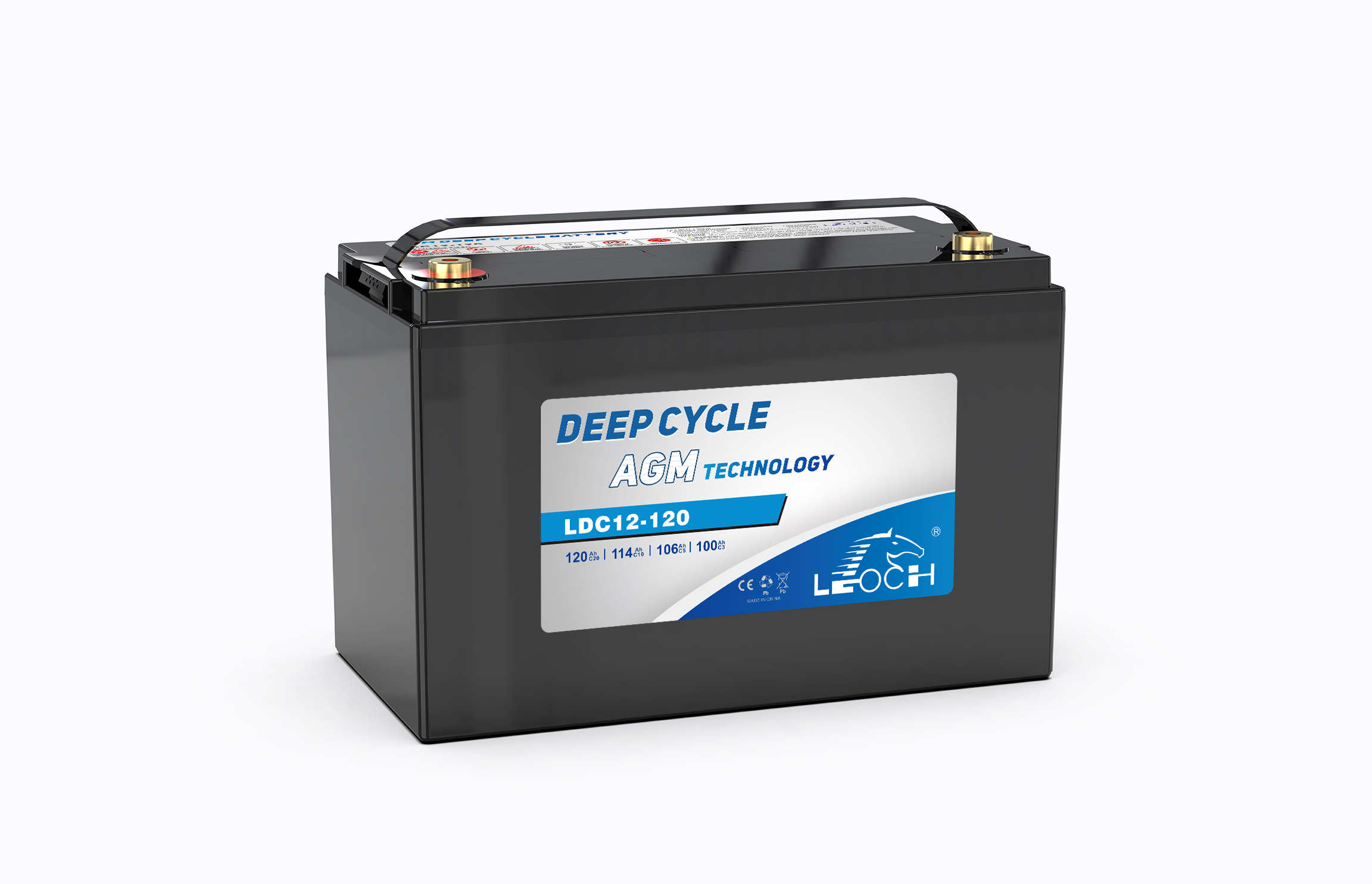

| LDC12-120 | 12 | 120 | 106 | 100 | 330 | 173 | 213 | 220 | 32.8 |
| LDC12-135 | 12 | 135 | 115 | 105 | 327 | 180 | 274 | 274 | 37.7 |
| LDC12-140 | 12 | 144 | 126 | 120 | 408 | 176 | 224.5 | 224.5 | 39.2 |
| LDC12-145 | 12 | 148 | 122 | 118 | 340 | 172 | 280 | 286 | 42.5 |
| LDC12-150-GC12 | 12 | 150 | 136 | 125 | 327 | 180 | 274 | 274 | 42.2 |
| LDC12-180 | 12 | 180 | 162 | 150 | 483 | 170 | 238.5 | 238.5 | 50.1 |
| LDC12-220 | 12 | 220 | 190 | 170 | 387 | 180 | 346 | 368 | 59.7 |
| LDC12-245 | 12 | 245 | 210 | 185 | 387 | 180 | 346 | 368 | 64.3 |
| LDC6-210-GC2 | 6 | 210 | 175 | 165 | 260 | 180 | 252 | 274 | 27.2 |

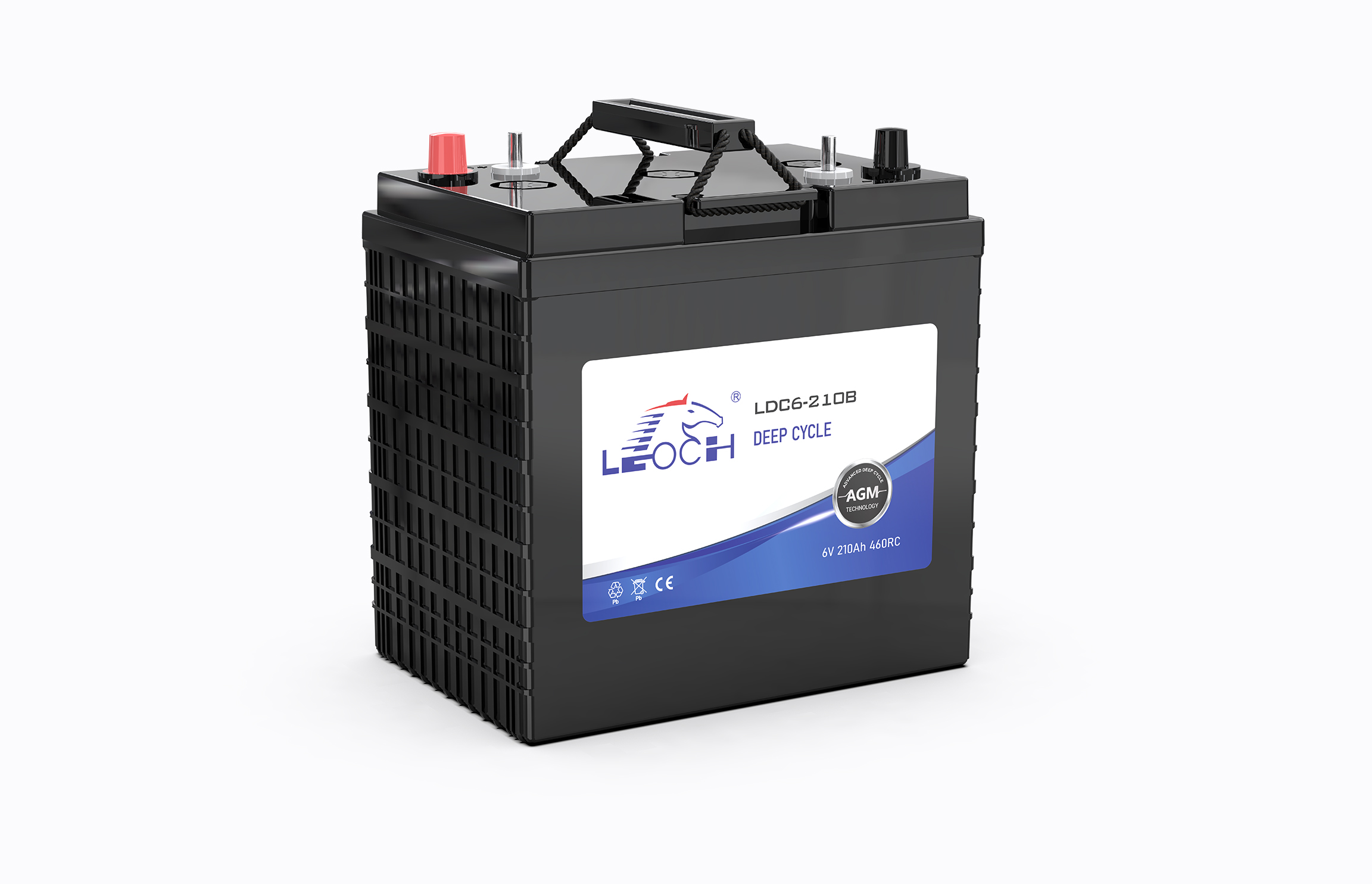

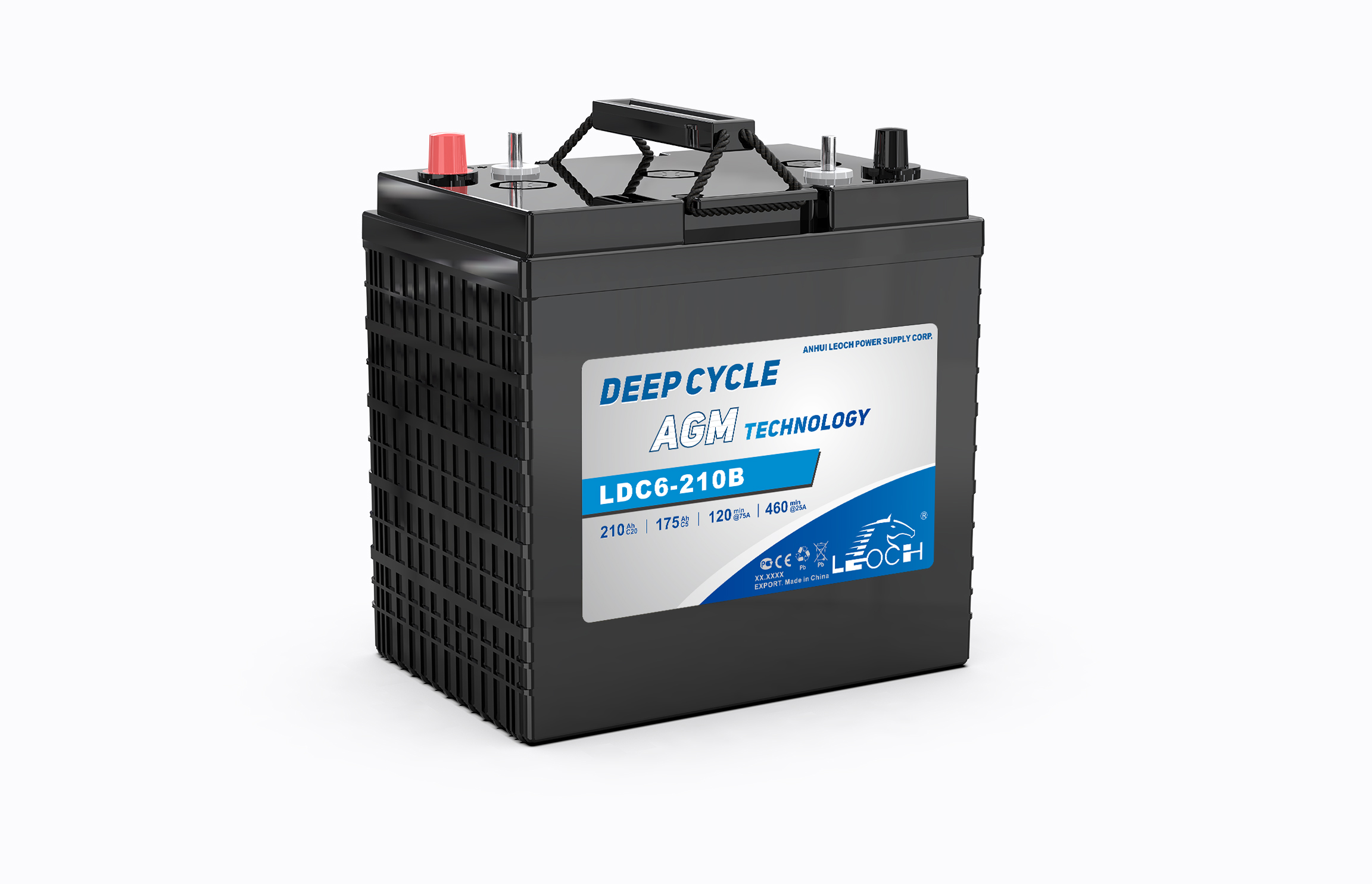

| LDC6-210B | 6 | 210 | 175 | 165 | 260 | 180 | 252 | 274 | 30.4 |
| LDC6-210C | 6 | 210 | 175 | 165 | 260 | 180 | 252 | 275 | 30.4 |
| LDC6-400C | 6 | 400 | 342 | 310 | 295 | 180 | 406 | 428 | 54.2 |

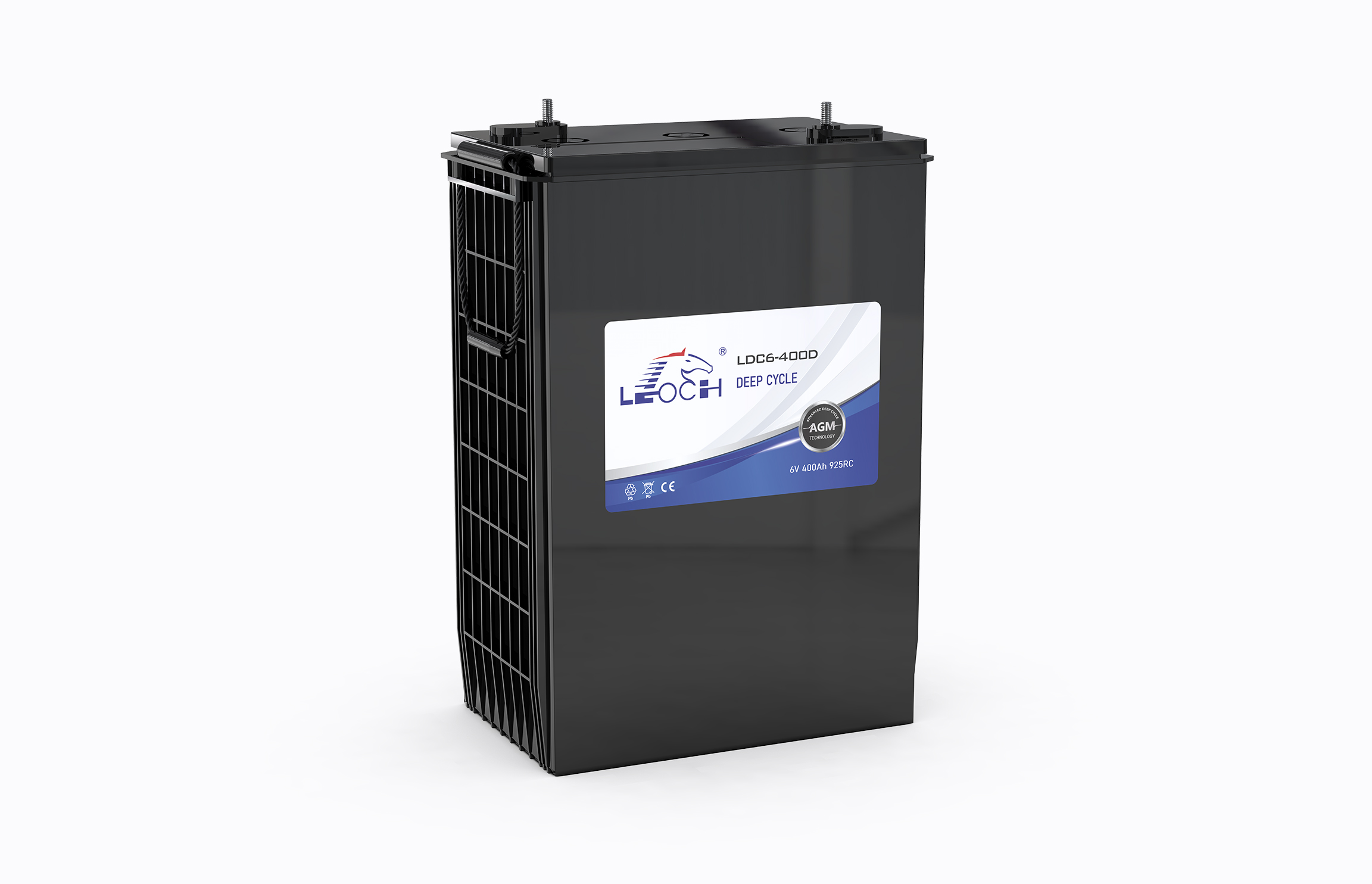

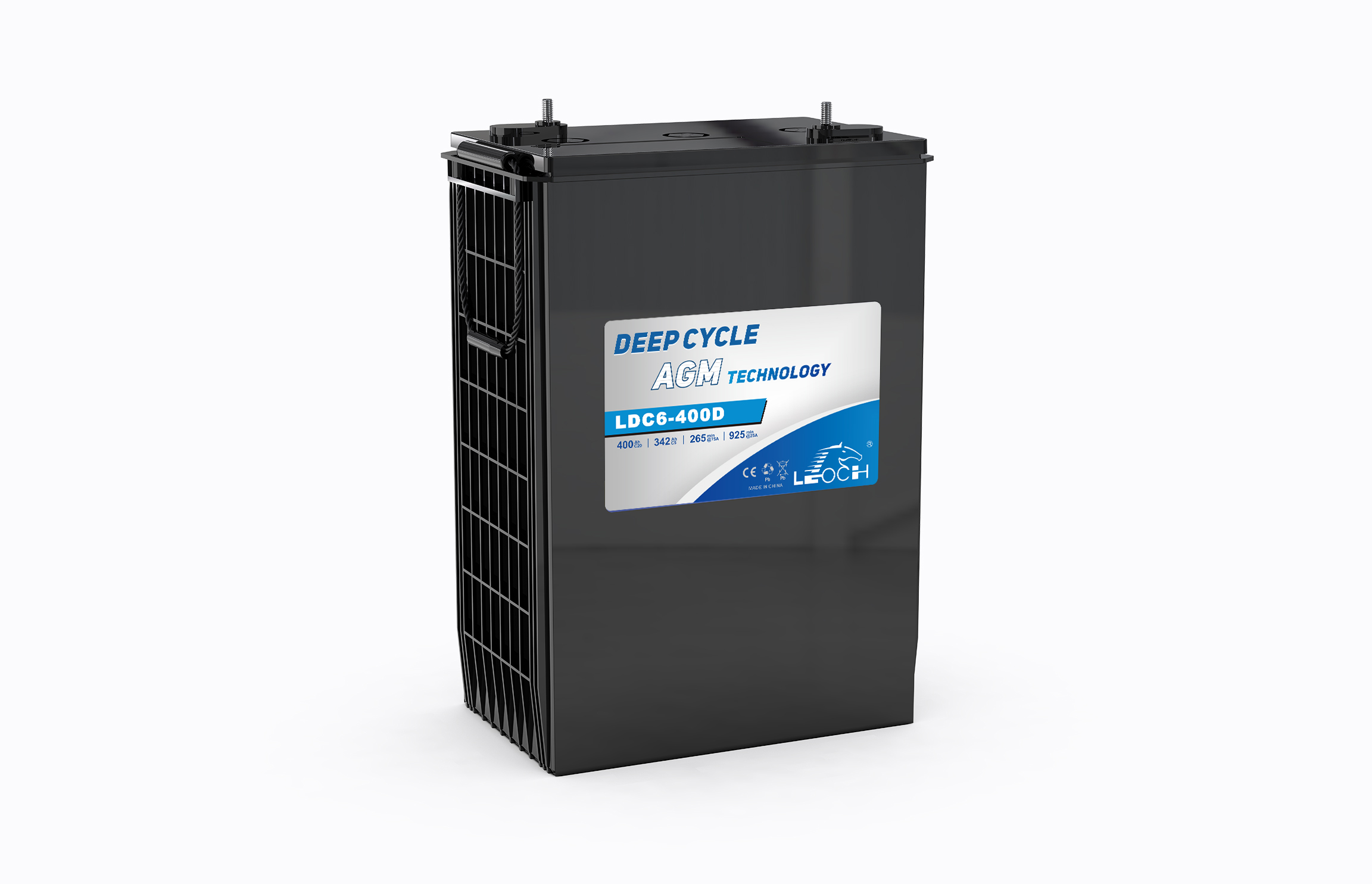

| LDC6-400D | 6 | 400 | 342 | 310 | 295 | 180 | 406 | 429 | 54.2 |
| LDC6-224-GC2 | 6 | 224 | 192 | 173 | 260 | 180 | 247 | 253 | 30.5 |
| LDC6-265-GC2 | 6 | 268 | 220 | 200 | 260 | 180 | 265 | 268 | 32.9 |
| LDC6-265C | 6 | 265 | 220 | 200 | 260 | 180 | 265 | 268 | 32.9 |
| LDC6-245 | 6 | 245 | 210 | 196 | 243 | 187.5 | 275 | 275 | 32.4 |
| LDC6-270 | 6 | 270 | 235 | 219 | 260 | 180 | 263 | 268 | 34.7 |
| LDC6-275 | 6 | 275 | 240 | 225 | 295 | 180 | 274 | 296 | 36.5 |
| LDC6-315 | 6 | 315 | 250 | 235 | 295 | 180 | 346 | 369 | 44.0 |
| LDC6-350 | 6 | 350 | 305 | 285 | 295 | 180 | 346 | 368 | 48.2 |
| LDC6-400-L16 | 6 | 400 | 342 | 310 | 295 | 180 | 406 | 428 | 54.2 |
| LDC8-165-GC8 | 8 | 165 | 140 | 125 | 260 | 180 | 252 | 274 | 29.3 |
| LDC8-195 | 8 | 195 | 163 | 150 | 262 | 180 | 278.5 | 278.5 | 33.6 |
| LDC8-188 | 8 | 188 | 153 | 135 | 262 | 180 | 278.5 | 278.5 | 31.5 |
| LDC8-210-GC8H | 8 | 210 | 180 | 165 | 260 | 182 | 295 | 298 | 40.5 |
Parameter information subject to the contract, here for your reference only.
1.True deep cycle AGM-GEL technology-GREEN SOLUTION
2 .Over 99.99% virgin lead for grid plate
3. Carbon active material
4. Electrolyte + Gel for longer cycle life
5. Heavy duty grid/paste design for deep cycle application
6. Maintenance free, non-spillable, valve-regulated
7. Double separator configuration :long cycle life &High energy density and super anti-vibration design
8. Low self-discharge for longer shelf lifetification
1. Electric bicycle
2. Electric tricycles
3. Electric bus
4. Golf cart
5. Tourist sightseeing vehicles
6. Electric cleaning equipment
7. AWP
8. Electric scooter
9. Lawn-mower
10.Electric toys
11. Elecctric wheelchair
