Products Center

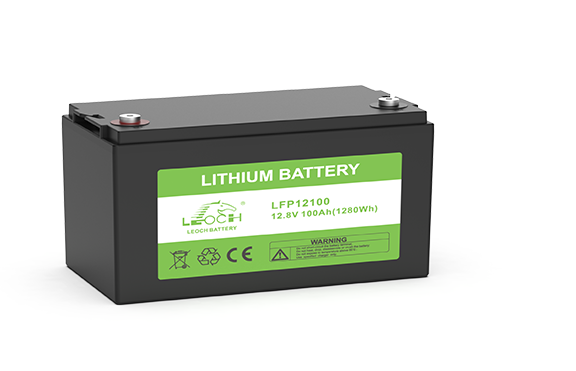

12V LFeLi Battery
Product features
Main application areas
1. It is ight weight, high energy density, green and environmental friendly
2. With wide working temperature range and excellent performance in high and low temperature
3. Provide high efficiency, energy saving, stable power supply, and high power output
4. Maintenance free
5. With long cycle life and high reliability
6. Builted-in intelligent BMS to protect the battery in real time to extend the service life
1、RV, camping
2、UPS (replace SLA battery)
3、Golf carts
4、Photovoltaic, solar energy
5、Solar street light
| Model | Nominal Voltage | Capacity | Energy | Dimensions | Weight | Download |
| V | Ah | KWh | mm | Kg | ||
| LFP1204 | 12.8 | 4 | 0.0512 | 90*70*101 | 0.5 | |
| LFP1207 | 12.8 | 7 | 0.0896 | 151*65*93.5 | 0.95 | |
| LFP1209 | 12.8 | 9 | 0.1152 | 151*65*93.5 | 11 | |
| LFP1212 | 12.8 | 12 | 0.1536 | 151*98*98 | 1.4 | |
| LFP1218 | 12.8 | 18 | 0.23 | 181.5*77*167.5 | 2.6 | |
| LFP1220 | 12.8 | 20 | 0.256 | 181.5*77*167.5 | 2.63 | |
| LFP1233 | 12.8 | 33 | 0.422 | 175*166*125 | 4 | |
| LFP1250 | 12.8 | 50 | 0.64 | 257*132*200 | 6.5 | |
| LFP1275 | 12.8 | 75 | 0.96 | 260*168*208 | 9 | |
| LFP12100 | 12.8 | 100 | 1.28 | 330*173*212 | 10 | |
| LFP12150 | 12.8 | 150 | 1.92 | 483*170*238.5 | 14.8 | |
| LFP12200 | 12.8 | 200 | 2.56 | 522*240*224 | 20 |
