12V Motocycle Starts Lithium Battery
Product features
Main application areas
1. Compact and light weight: 1/3 the weight of lead-acid equivalent
2. Fast charging with high current: only needs 6 minutes to get 90% charged with 10C current
3. Excellent cycle life: more than 2000 cycles according to JISD standard (only 150-300 cycles for lead-acid batteries)
4. No leakage: no electrolyte leakage problem
5. No pollution：without acid and heavy metals (e.g. lead, cadmium, mercury)
Motorcycle starts, generator starts, lawn mower starts
| Model | Nominal voltage (V) | Nominal Capacity (Ah) | CCA | Dimensions（mm） | Maximum Installation Dimensions （mm） | Weight (kg) | Download | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LFPS-X1 | 12.8 | 2 | 60 | 92 | 52 | 92 | 92 | 52 | 130 | 0.48 | |
| LFPS-X4L | 12.8 | 1.6 | 50 | 113 | 70 | 85 | 113 | 70 | 105 | 0.36 | |
| LFPS-Z7S | 12.8 | 2 | 60 | 113 | 70 | 85 | 113 | 70 | 130 | 0.42 | |
| LFPS-X7L | 12.8 | 50 | 2.4 | 113 | 70 | 85 | 113 | 70 | 130 | 0.45 | |
| LFPS-9B | 12.8 | 3 | 90 | 150 | 66 | 93 | 150 | 66 | 111 | 0.56 | |
| LFPS-X9 | 12.8 | 3 | 90 | 150 | 87 | 105 | 150 | 87 | 105 | 0.61 | |
| LFPS-10B | 12.8 | 4 | 120 | 150 | 66 | 93 | 150 | 66 | 111 | 0.67 | |

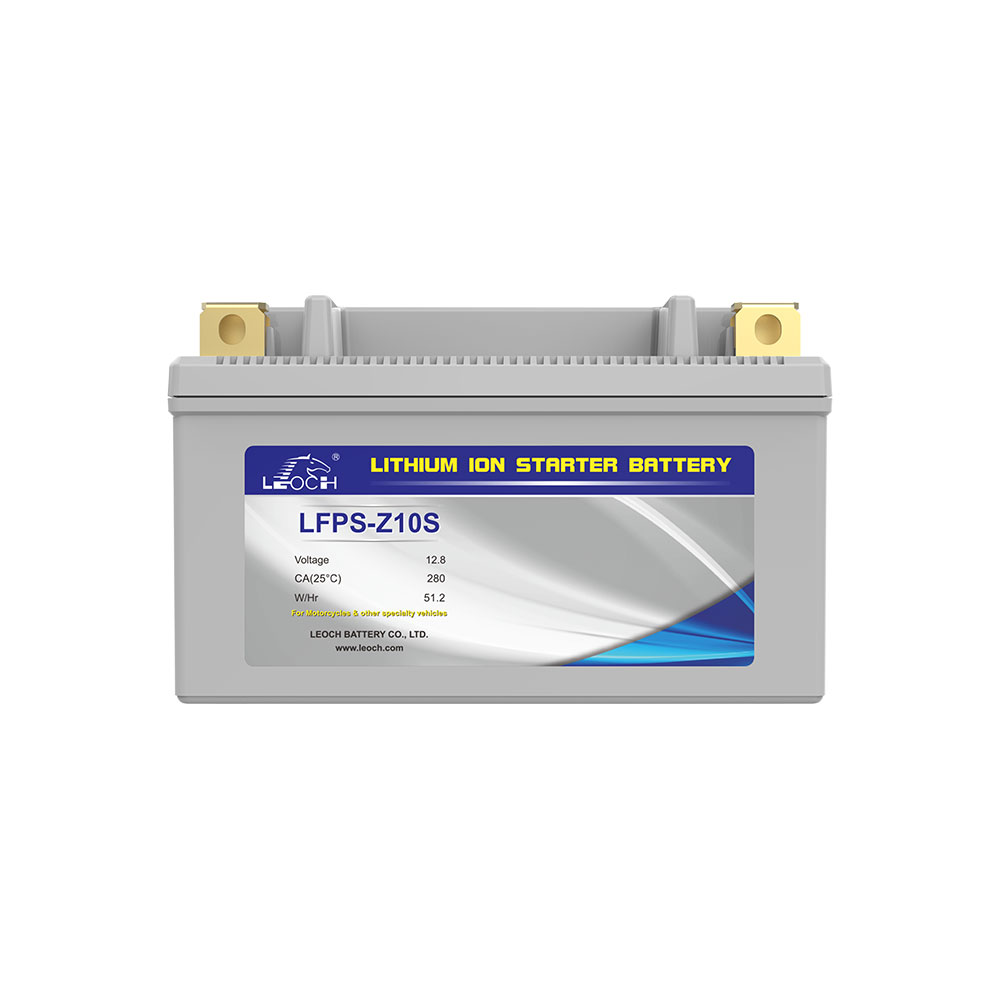

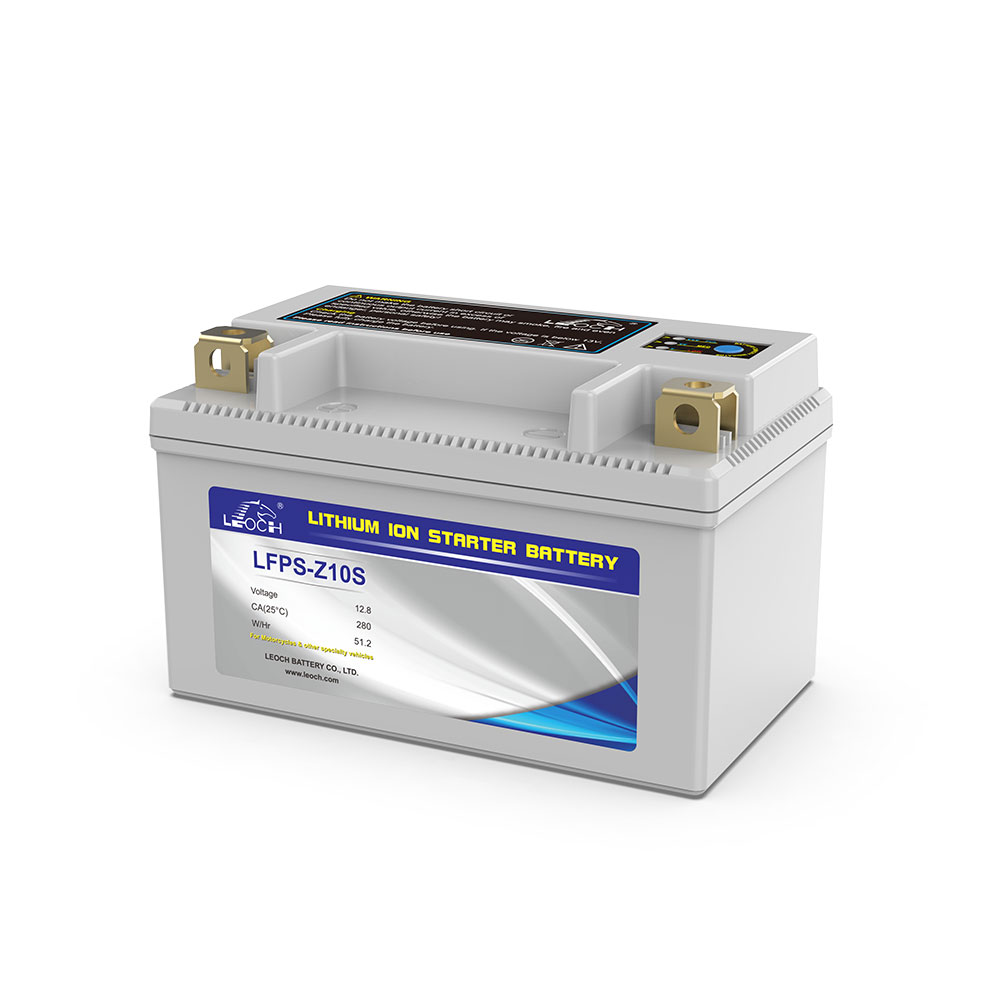

| LFPS-Z10S | 12.8 | 4 | 120 | 150 | 87 | 93 | 150 | 87 | 93 | 0.7 | |
| LFPS-11B | 12.8 | 4 | 150 | 150 | 66 | 130 | 150 | 66 | 176 | 0.72 | |
| LFPS-X12 | 12.8 | 3.5 | 120 | 150 | 87 | 93 | 150 | 87 | 134 | 0.65 | |
| LFPS-12B | 12.8 | 5 | 150 | 150 | 66 | 130 | 150 | 66 | 176 | 0.82 | |
| LFPS-X14 | 12.8 | 4 | 120 | 150 | 87 | 93 | 150 | 87 | 145 | 0.7 | |
| LFPS-Z14S | 12.8 | 5 | 150 | 150 | 87 | 93 | 150 | 87 | 110 | 0.85 | |
| LFPS-X20H | 12.8 | 7 | 210 | 175 | 87 | 130 | 175 | 87 | 181 | 1.12 | |
| LFPS-X20HL | 12.8 | 7 | 210 | 175 | 87 | 130 | 175 | 87 | 181 | 1.12 | |
| LFPS-X30 | 12.8 | 8 | 240 | 166 | 123 | 163 | 166 | 123 | 192 | 1.8 | |
