Residential Energy Storage Battery (Rack-mounted)
Product features
Main application areas
1. Suitable for standard 19-inch cabinet with rack-mounted design
2. Adopt lithium iron phosphate batteries with safe and long life cycle
3. Maximum charge/discharge up to 1C
4. Friendly human-machine interface
5. Compatible with multiple brands of inverters at the same time
Home energy storage, PV off-grid backup power, off-island backup power
| Model | Nominal Voltage | Capacity | Energy | Height | Dimensions | Weight | Download |
| V | Ah | KWh | （1U=44.45mm） | mm | Kg | ||

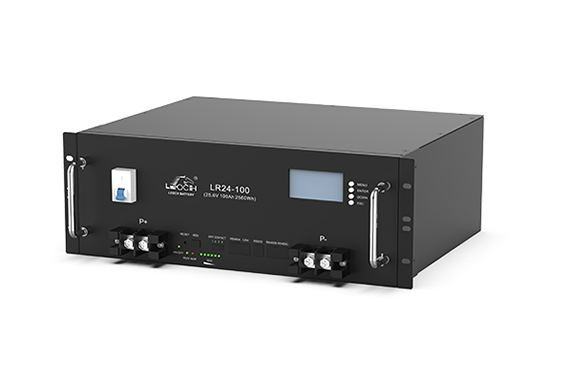

| LR24-100 | 25.6 | 100 | 2.56 | 4U | 442*350*177 | 26 | |
| LR24-200 | 25.6 | 200 | 5.12 | 4U | 442*450*177 | 43 | |
| LR48-50 | 48 | 50 | 2.4 | 3U | 442*442*132 | 27 | |
| LR48-150 | 48 | 150 | 7.2 | 4.5U | 442*550*198 | 61 | |
| LR51.2-50 | 51.2 | 50 | 2.56 | 3U | 442*442*132 | 28 | |

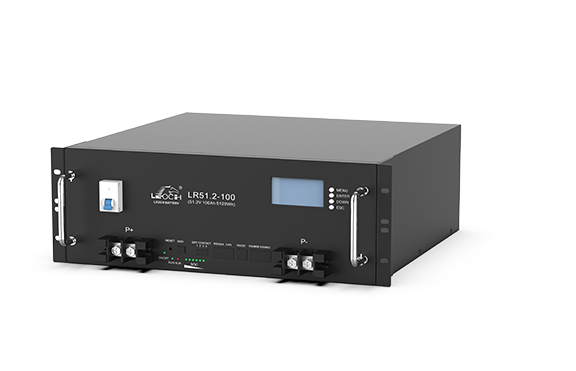

| LR51.2-100 | 51.2 | 100 | 5.12 | 4U | 442*431*177 | 43 | |
| LR51.2-150 | 51.2 | 150 | 7.68 | 4.5U | 442*550*198 | 64 | |
| LR51.2-200 | 51.2 | 200 | 10.24 | 5.5U | 442*550*244 | 82 |
