PLH+C Series

PLH+C Series

-Excellent Charging Acceptance with High Charging Efficiency,Excellent PSoC Cycle Performance under High and Low Ambient Temperature,Punched continuous grid strip

Download

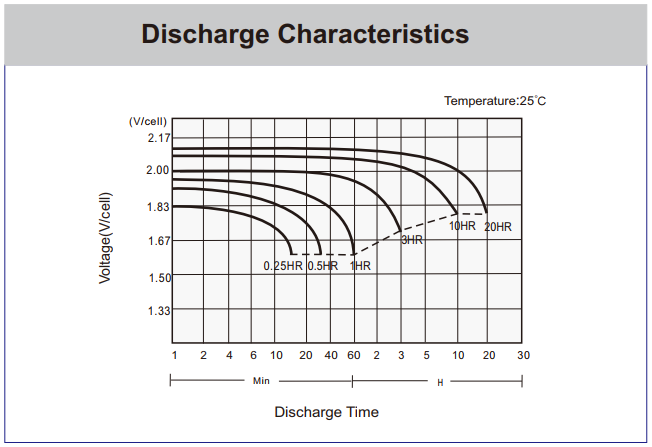

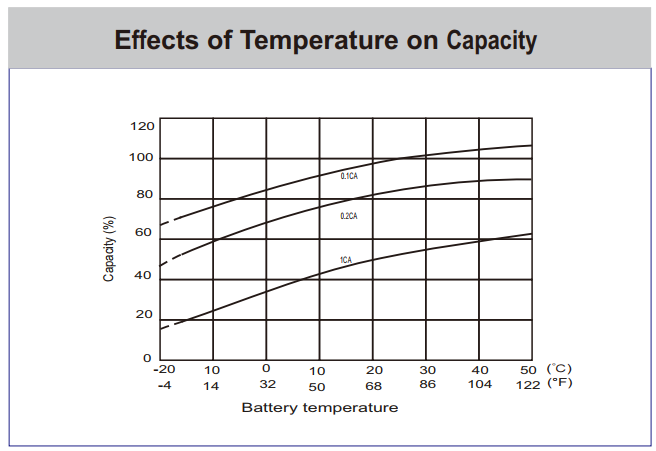

Features Application Curves Specification

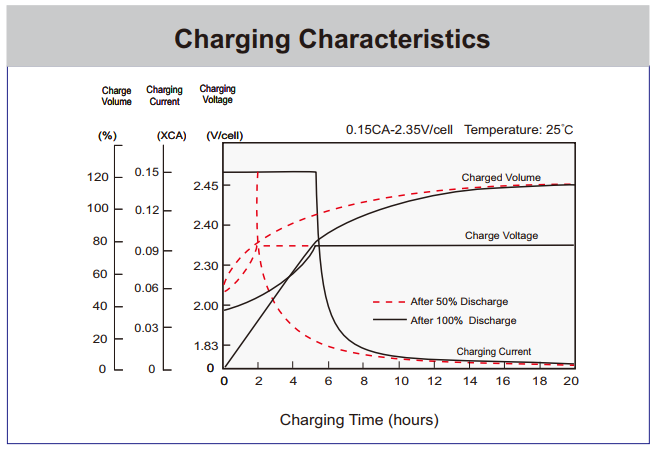

1. Super-Fast Charging: From 0% to 90% SoC level in less than 1.5 hours

2. Long Deep Cycle Life

3. Wide Operating Temperature Range (-30℃ – +60℃ )

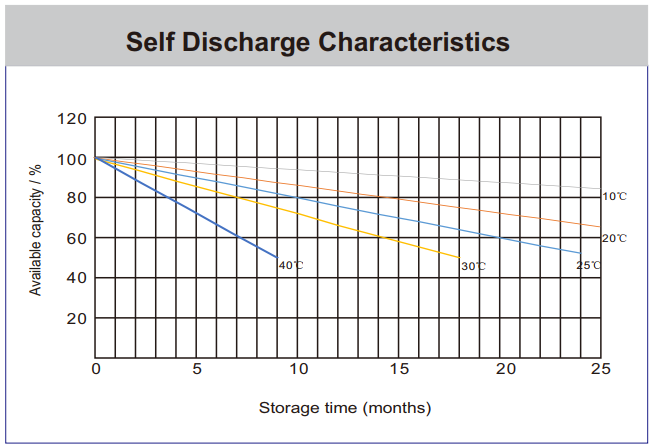

4. Doubled Shelf Life (2 years) with Low Self-discharging Rate


Terminal

  • 1. Renewable energy power(solar, wind, PV/wind hybrid) access to energy storage systems
  • 2. Peak load shifting energy storage systems
  • 3. Load tracking energy storage systems
  • 4. Grid frequency adjustment energy storage systems
  • 5. Smart grid, micro-grid systems, mobile container storage systems
  • 6. Oil and electricity hybrid energy storage systems in the area without municipal electricty or with poor grid
  • 7. Renewable energy communication base stations, core computer rooms, IDC that with peak load shifting functions

Model Rated
Voltage
10Hr 8Hr Length Width Height TH Weight Terminal
V

1.80

V/cell

1.75

V/cell

mm in. mm in. mm in. mm in. kg lbs

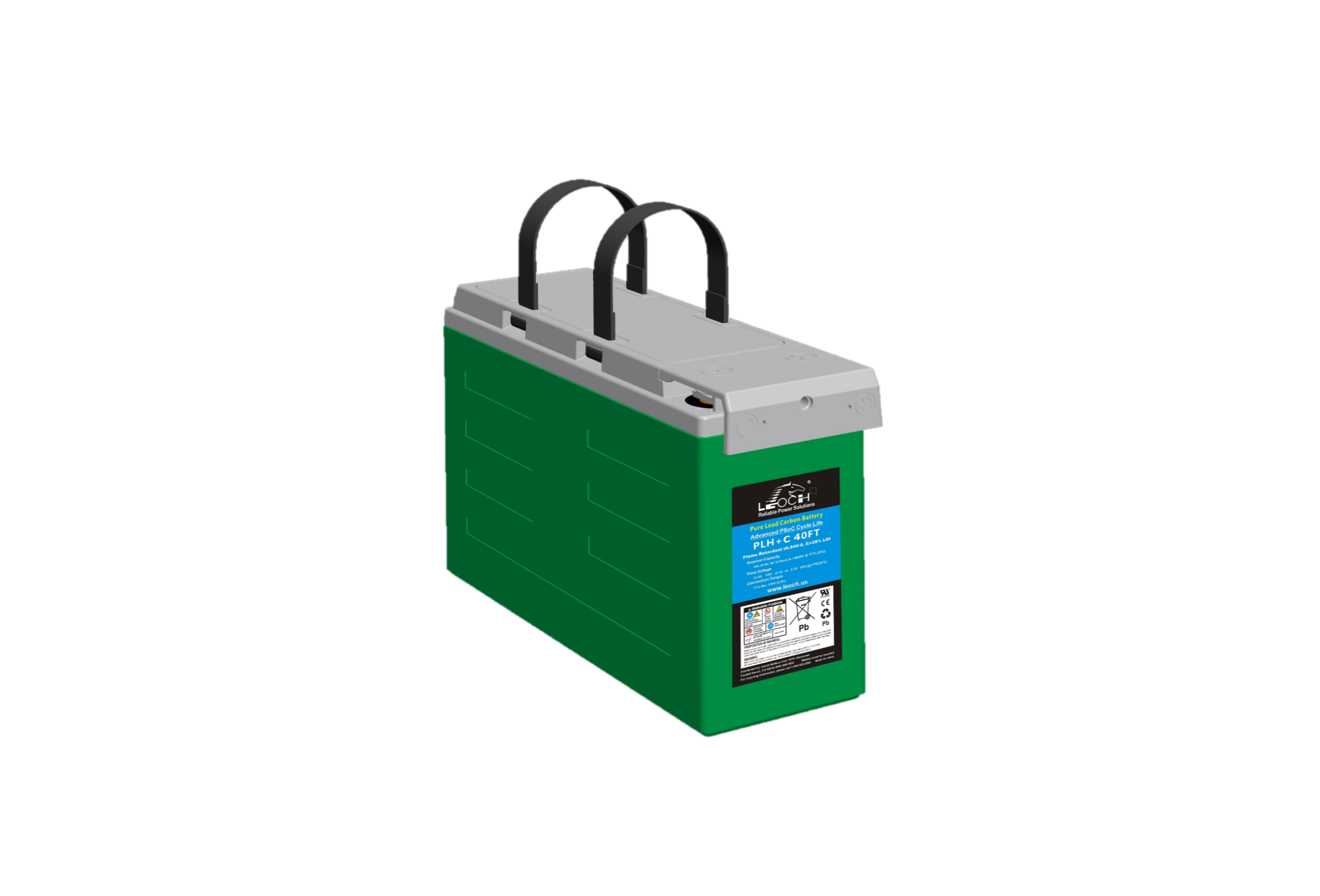

PLH+C 40FT 12 38 38 298.7 11.76 97 3.82 184 7.24 184 7.24 12.5 27.56 M6*
PLH+C 62FT 12 62 62 298.7 11.76 97 3.82 267 10.51 267 10.51 19.5 42.99 M6*
PLH+C 90FT 12 90 90 405.4 15.96 108 4.25 287 11.30 287 11.30 28.7 63.27 M6*
PLH+C 100FT 12 100 100 405.4 15.96 108 4.25 287 11.30 287 11.30 30.8 67.90 M6*

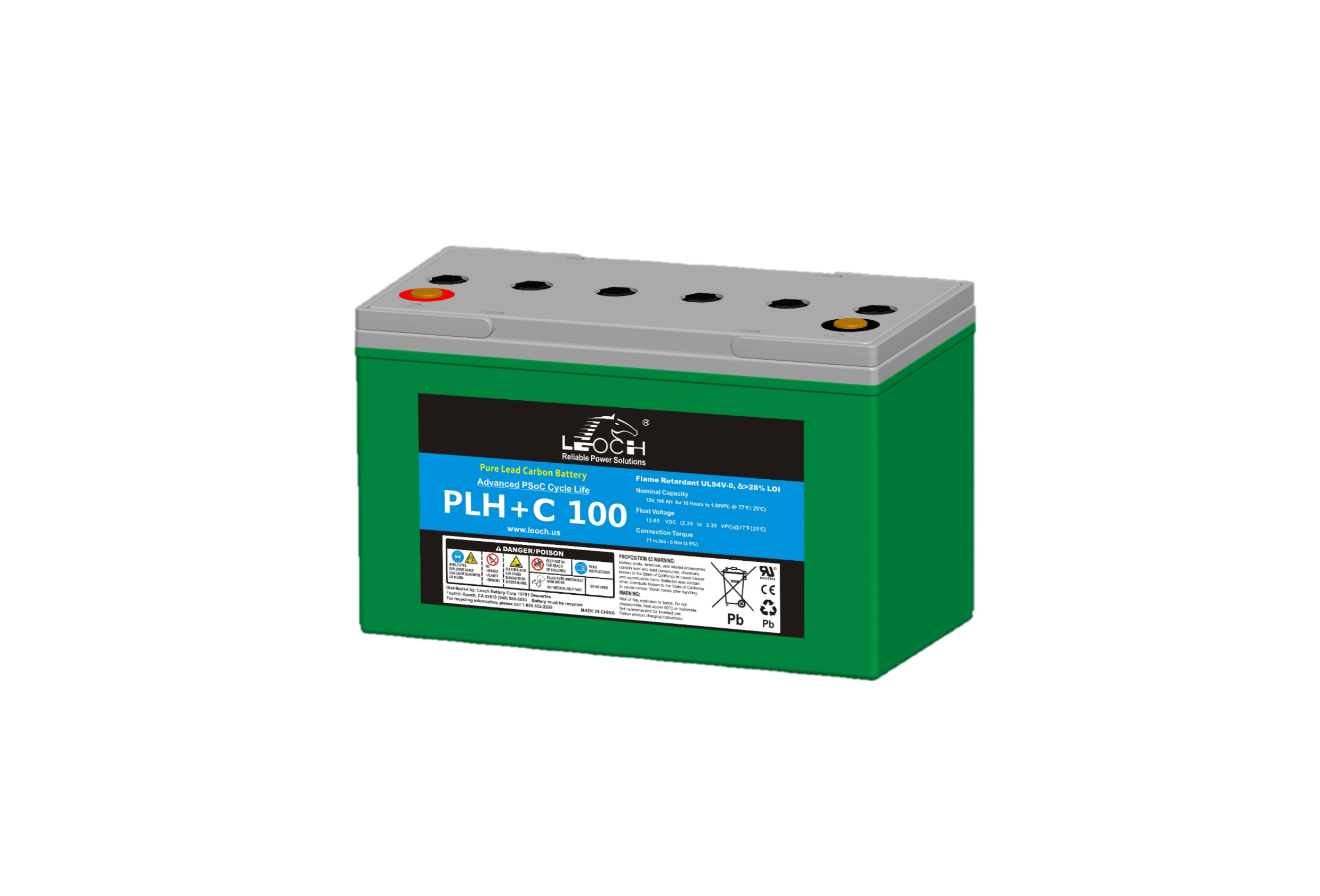

PLH+C 100 12 100 100 341.5 13.44 175 6.89 213 8.39 215 8.46 31.2 68.78 M8

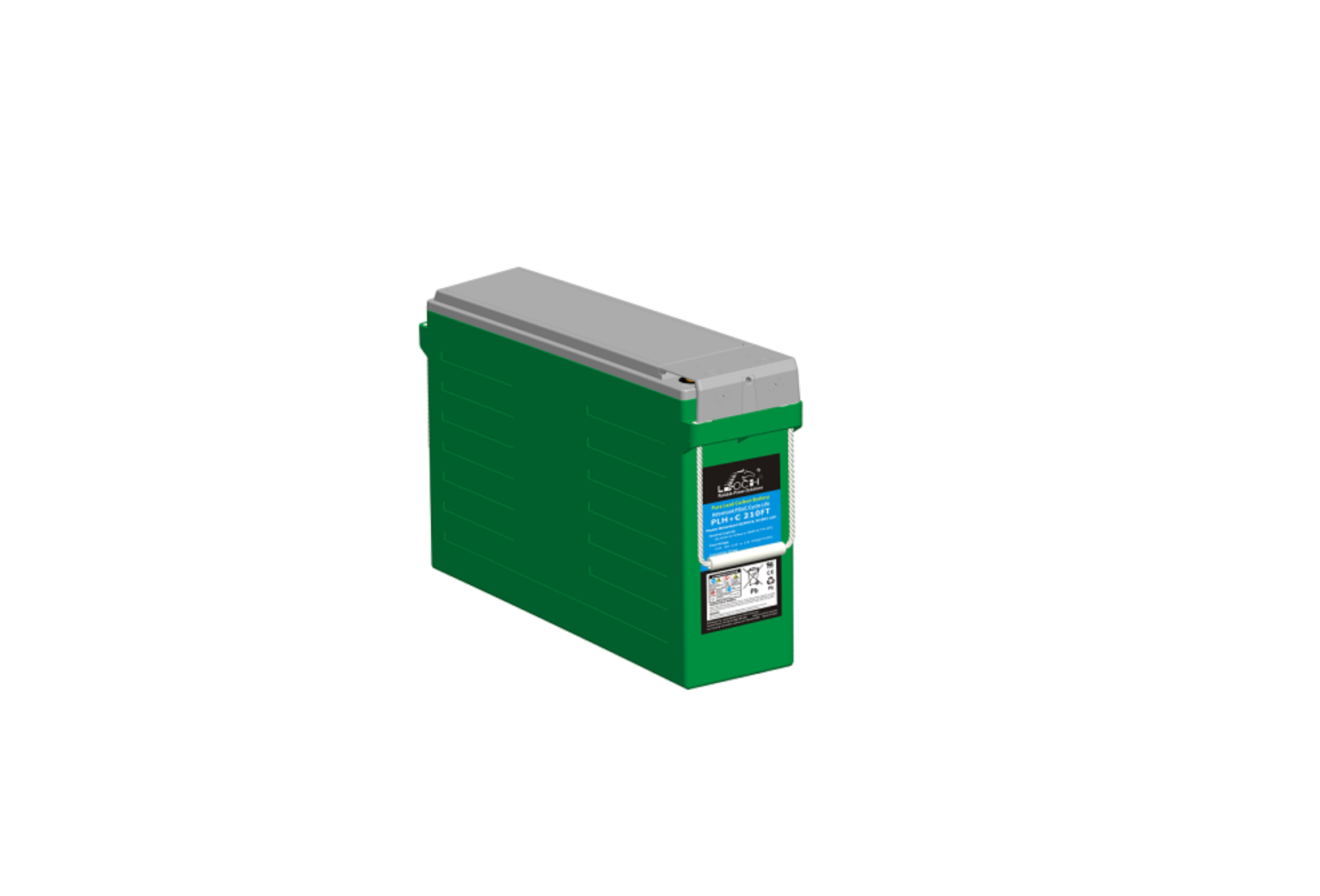

PLH+C 110FT 12 110 110 559 22.01 125 4.92 227 8.94 227 8.94 36.5 80.47 M6*
PLH+C 150FT 12 150 150 559 22.01 125 4.92 277 10.91 277 10.91 48 105.82 M6*
PLH+C 170FT 12 170 170 559 22.01 125 4.92 320 12.60 320 12.60 54.2 119.49 M6*
PLH+C 190FT 12 190 190 559 22.01 125 4.92 320 12.60 320 12.60 57.6 126.98 M6*

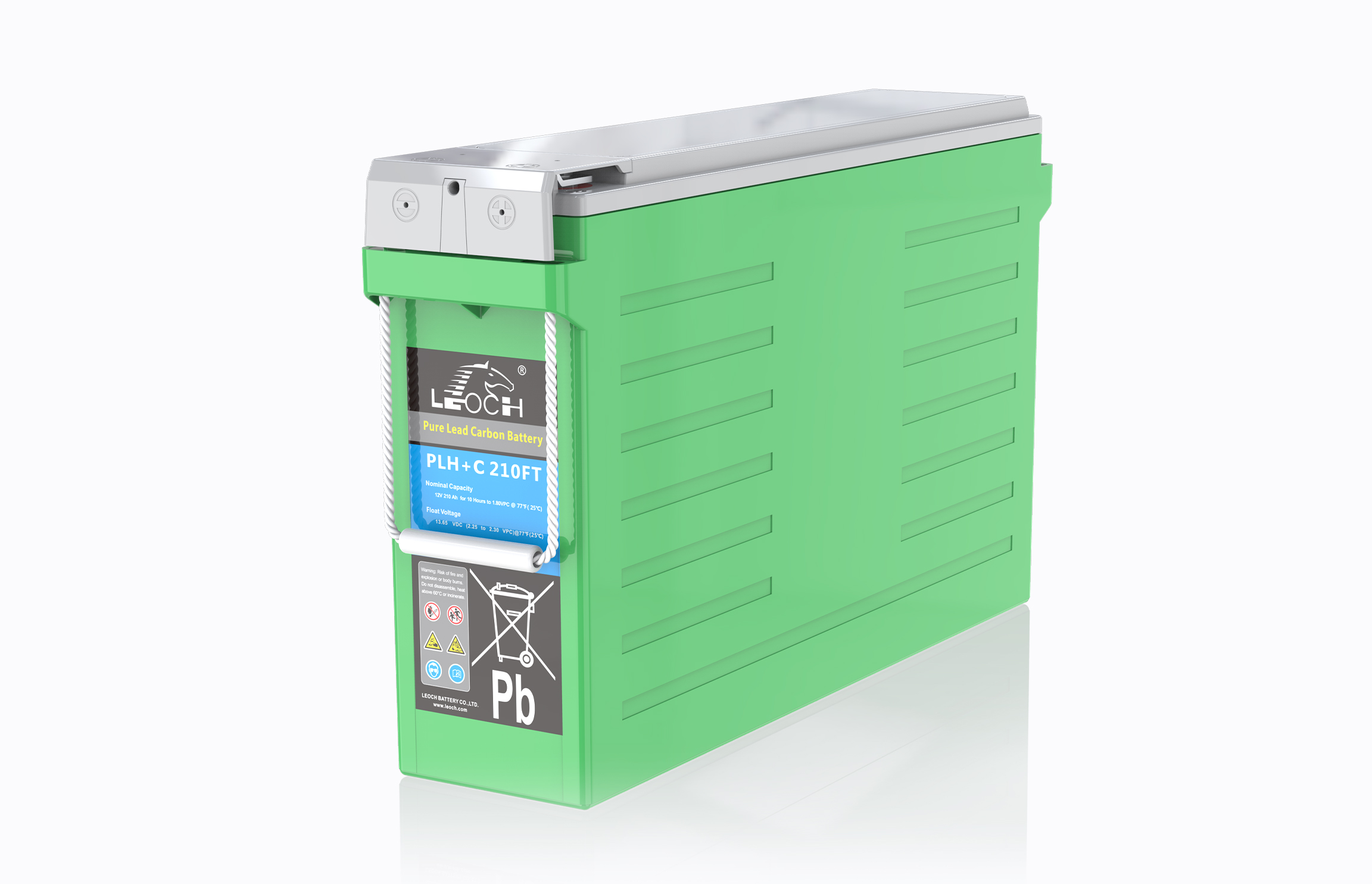

PLH+C 210FT 12 210 210 559 22.01 125 4.92 328 12.91 328 12.91 60.5 133.38 M6*
*:M6 (M8 is optional)
