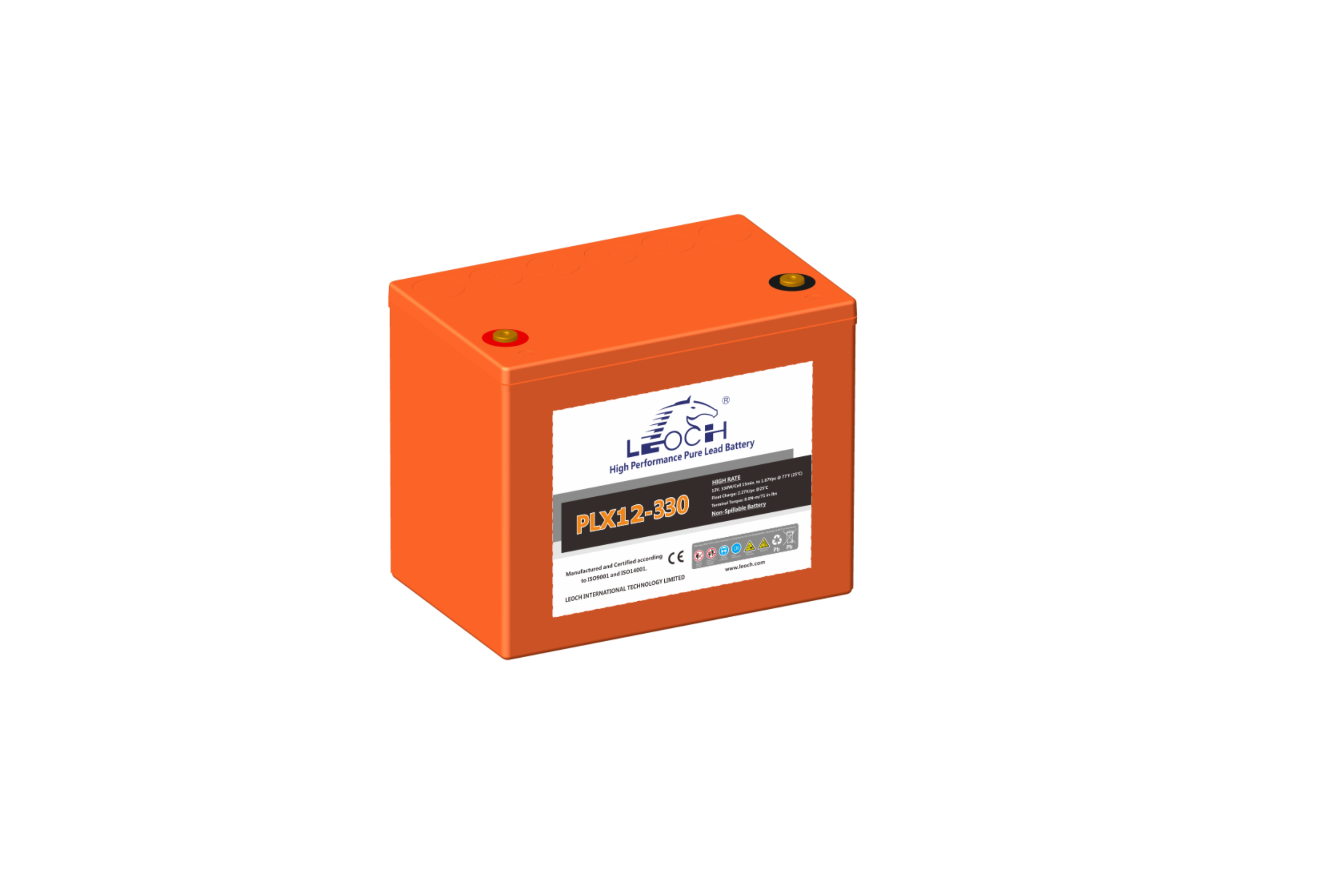

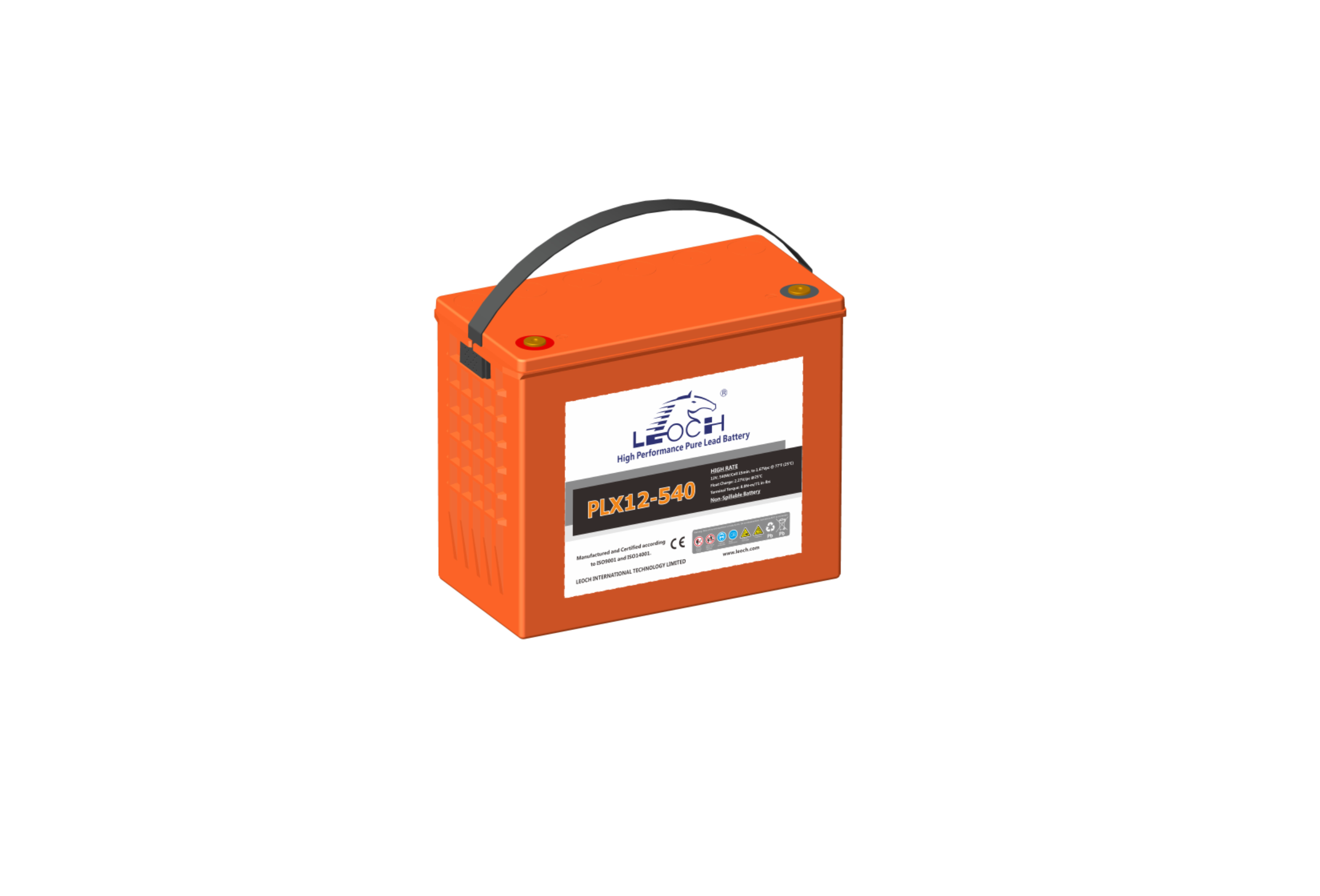

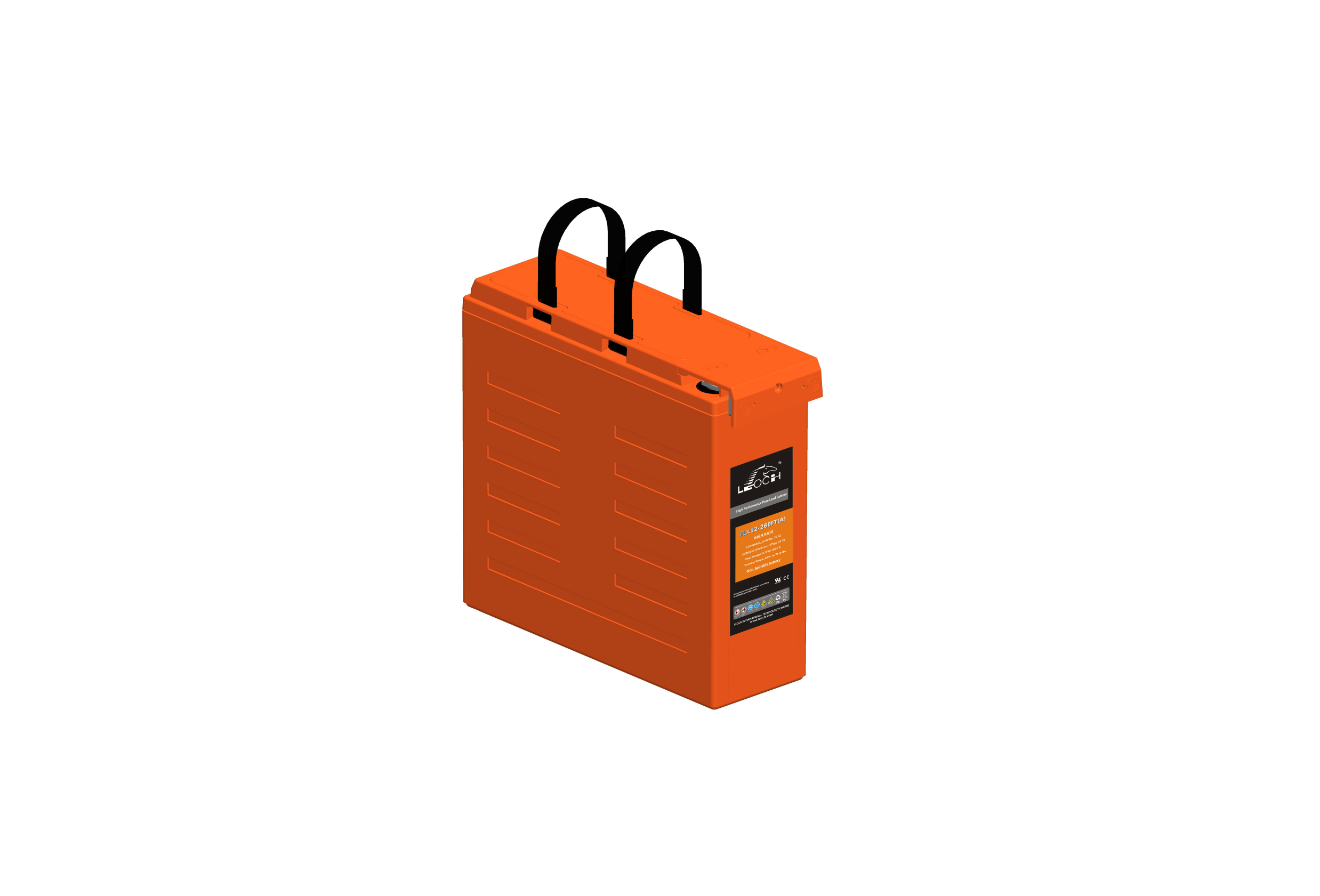

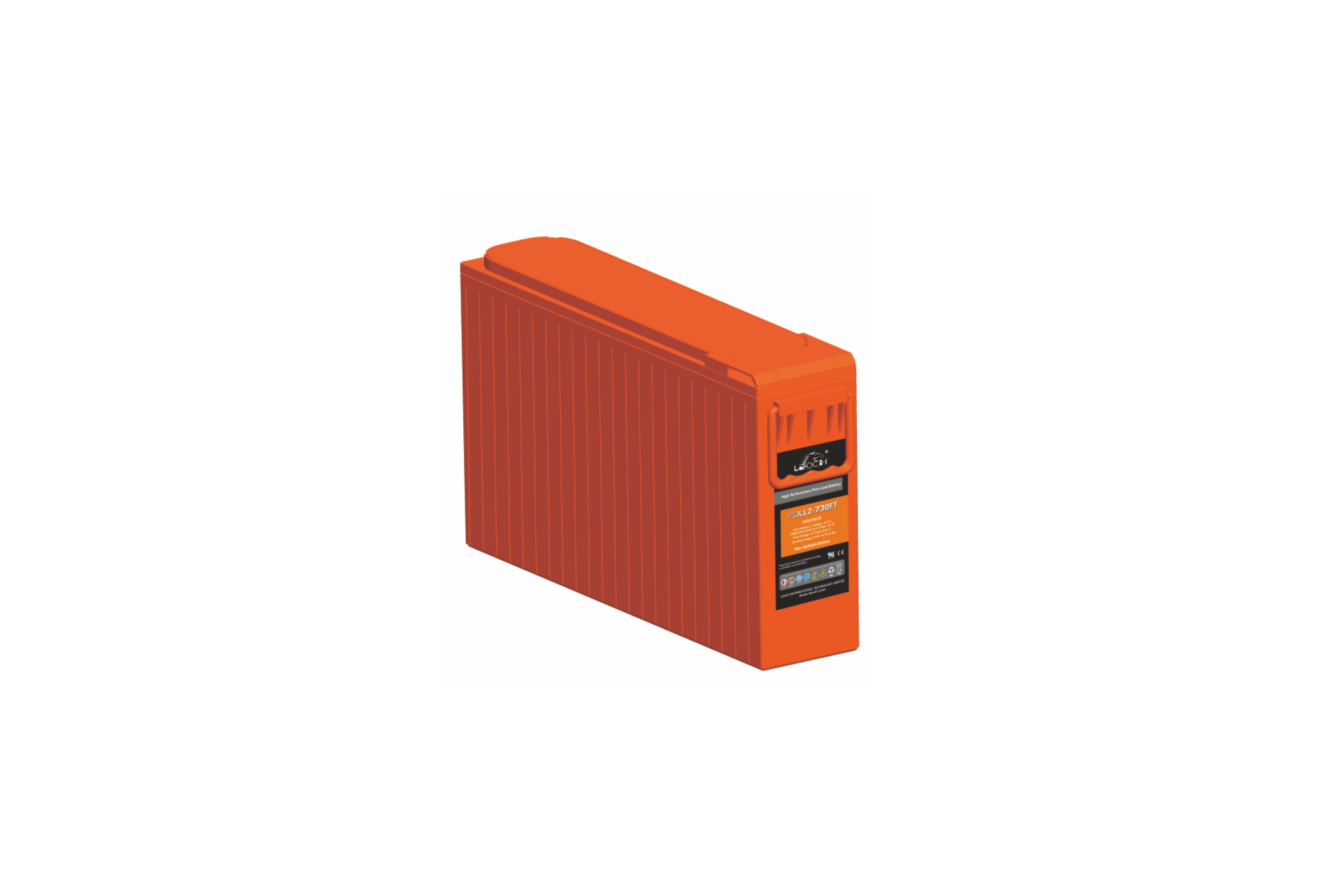

PLX Series - High Rate/ UPS

PLX Series - High Rate/ UPS

Pure Lead used to optimize the high rate and float life. Punched continuous grid strip – better metal crystal structure Continuous, double pasting process – high consistency and reliability High Temperature Curing for Standby application to improve cycling ability COS welding, TTP and ABS heat sealing - Low internal resistance and Low self-discharging rate rapid charging acceptance and cyclic endurance for a superior performance in extreme environmental conditions. Jar formation is involved which is more under Environment friendly consideration

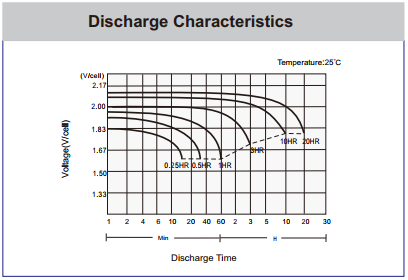

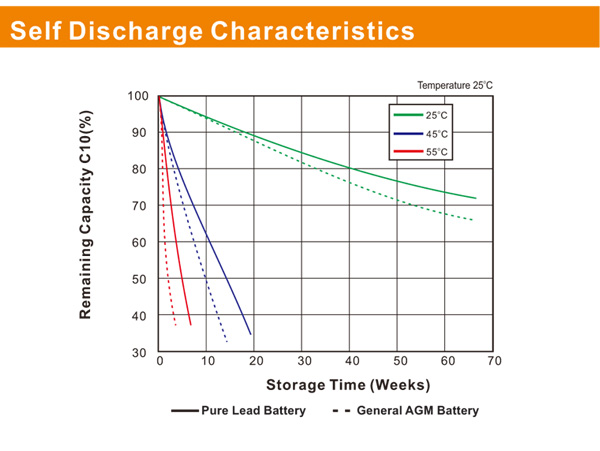

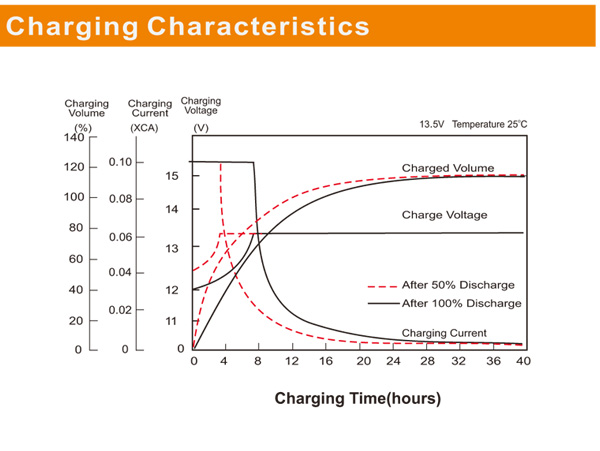

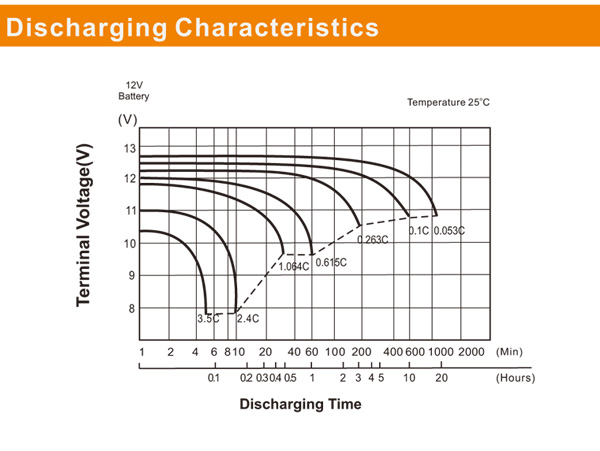

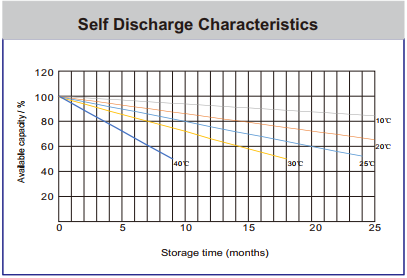

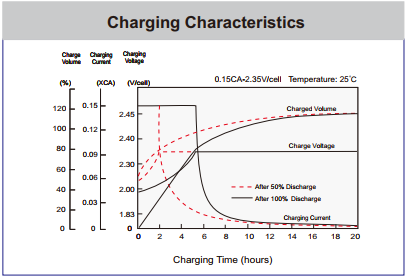

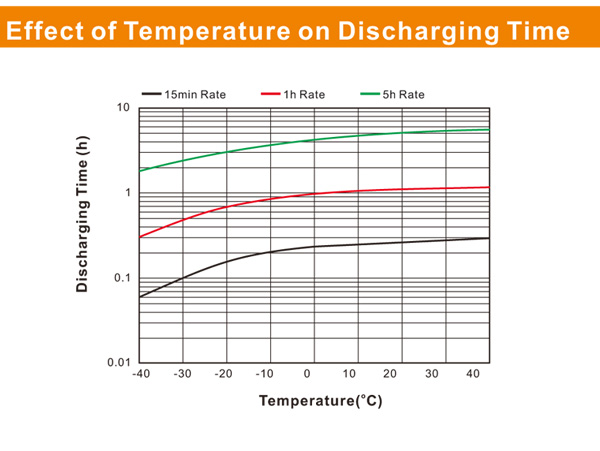

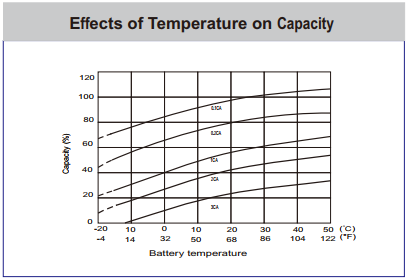

Features Application Curves Specification

1. Pure Lead used to optimize the high rate and float life.

2. Punched continuous grid strip – better metal crystal structure

3. Continuous, double pasting process – high consistency and reliability

4. High Temperature Curing for Standby application to improve cycling ability

5. COS welding, TTP and ABS heat sealing - Low internal resistance and Low self-discharging rate

6. rapid charging acceptance and cyclic endurance for a superior performance in extreme environmental conditions.

7. Jar formation is involved which is more under Environment friendly consideration



  • 1. UPS (High rate)
  • 2. High power backup supply
  • 3. Emergency power supply
  • 4. Starting system
  • 5. Power tools
  • 6. Emergency lighting
  • 7. Electrical starting
纯铅电池PLX
高功率纯铅电池
UPS电池
UPS 高功率电池
Model Rated
Voltage
W15 10Hr Length Width Height TH Weight Terminal
V

1.67V/

cell

1.80V/

cell

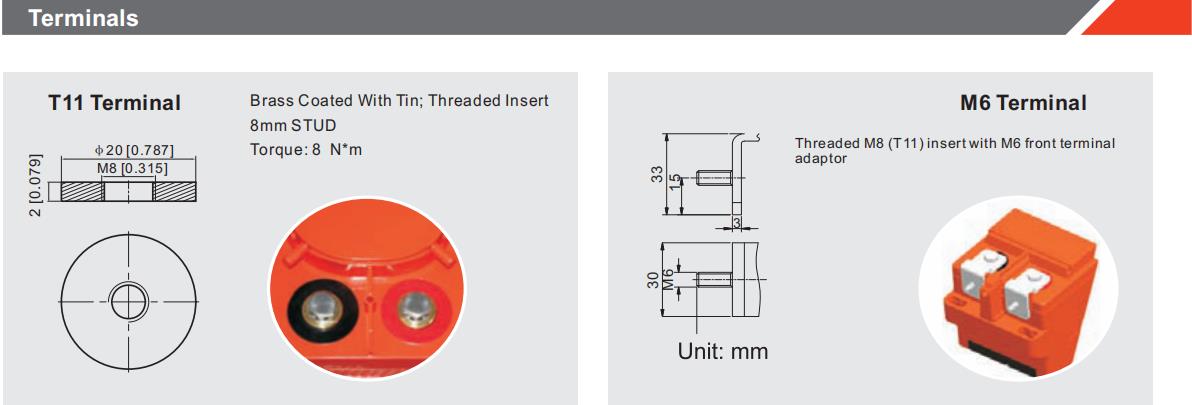

mm in. mm in. mm in. mm in. kg ibs
PLX12-260FT(A) 12 260 62 298.7 11.7 97 3.82 267 10.5 267 10.5 19.9 43.87 M6*
PLX12-400 12 400 100 341.5 13.4 175
6.89 213 8.39 215 8.46 32.0 7 0.55 T11
PLX12-400FT(A) 12 400 100 405.4 15.9 108 4.25 287 11.3 287 11.3 31.5 69.44 M6*
PLX12-450FT(A) 12 450 110 559 22.0 125 4.92 227 8.9 227 8.9 37.7 83.11 M6*
PLX12-620FT(A) 12 620 150 559 22.0 125 4.92 277 10.9 277 10.9 48.5 106.92 M6*
PLX12-700FT(A) 12 700 190 559 22.0 125 4.92 320 12.6 320 12.6 58.0 127.87 M6*
PLX12-730FT 12 730 200 571 22.4 125 4.92 320 12.6 320 12.6 61.0 134.48 M6*
