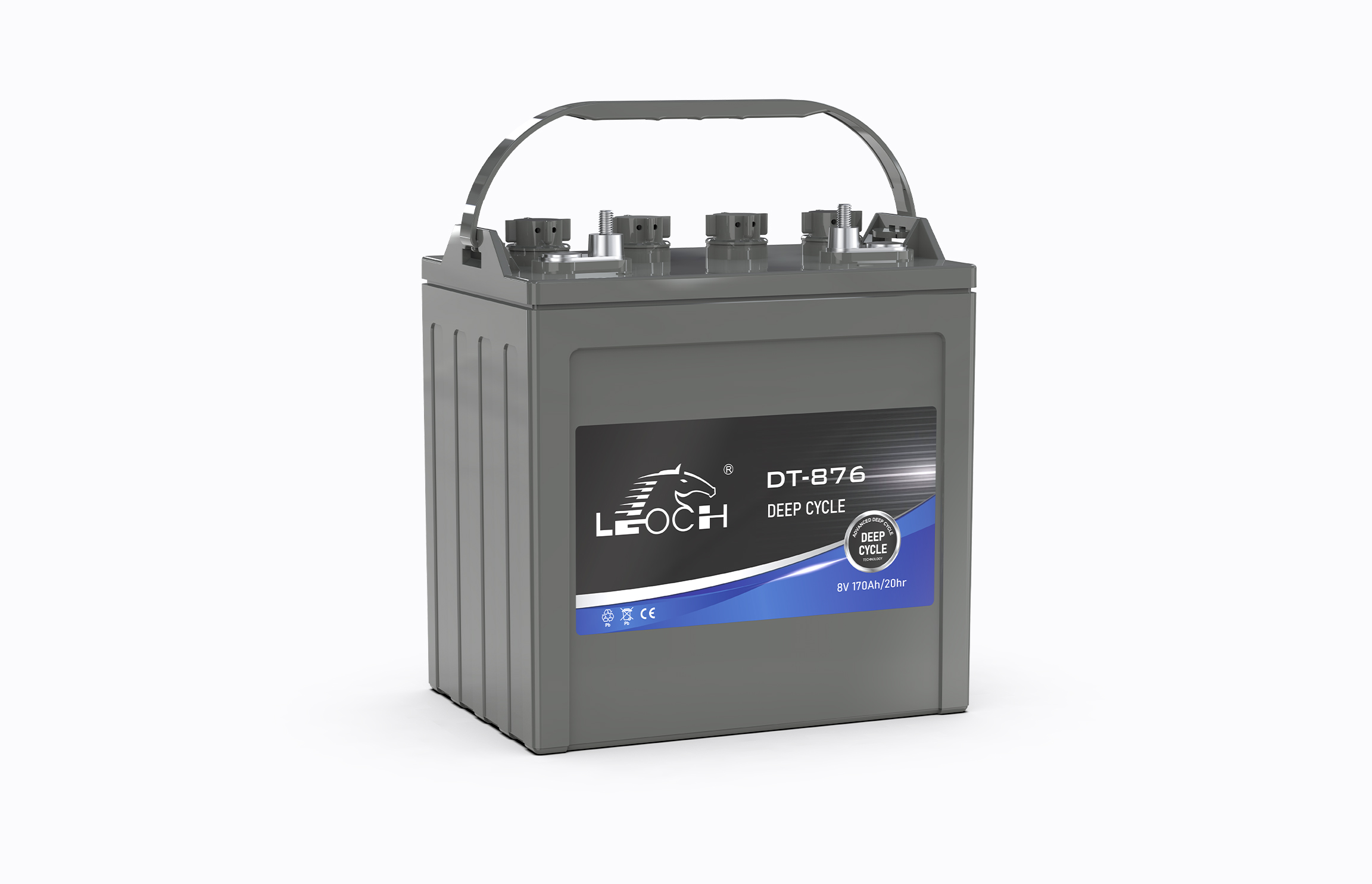

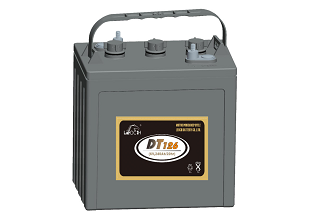

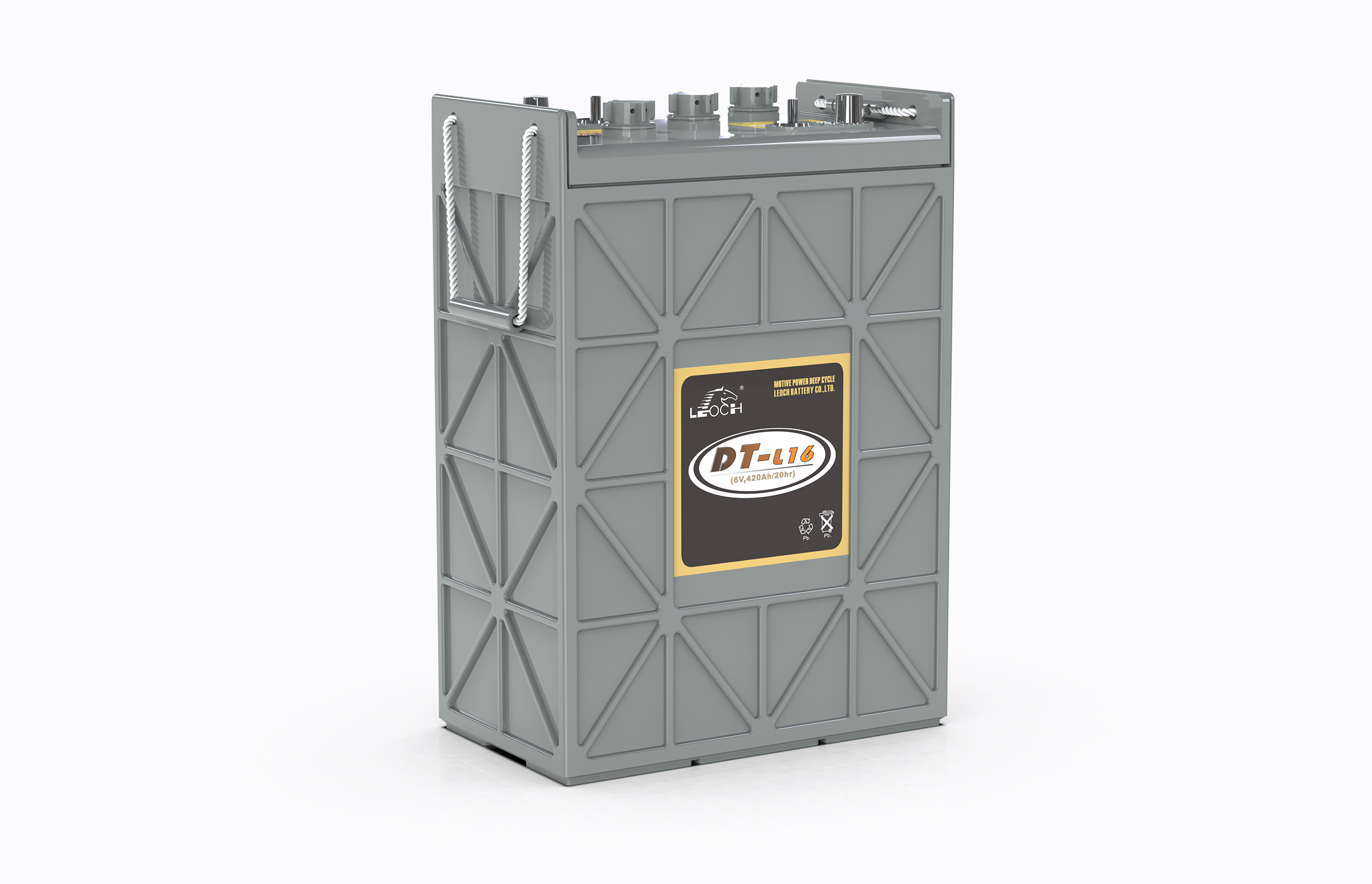

DT Series

DT Series

LEOCH DT Series batteries are a clean, reliable power source for golf, electric vehicle, floor machine, AWP, RV, marine, mobility, renewable energy and commercial truck applications.

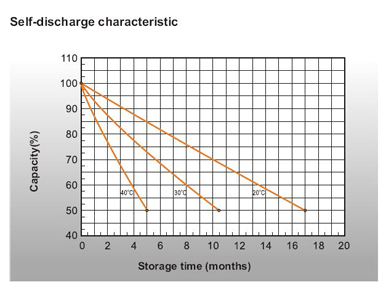

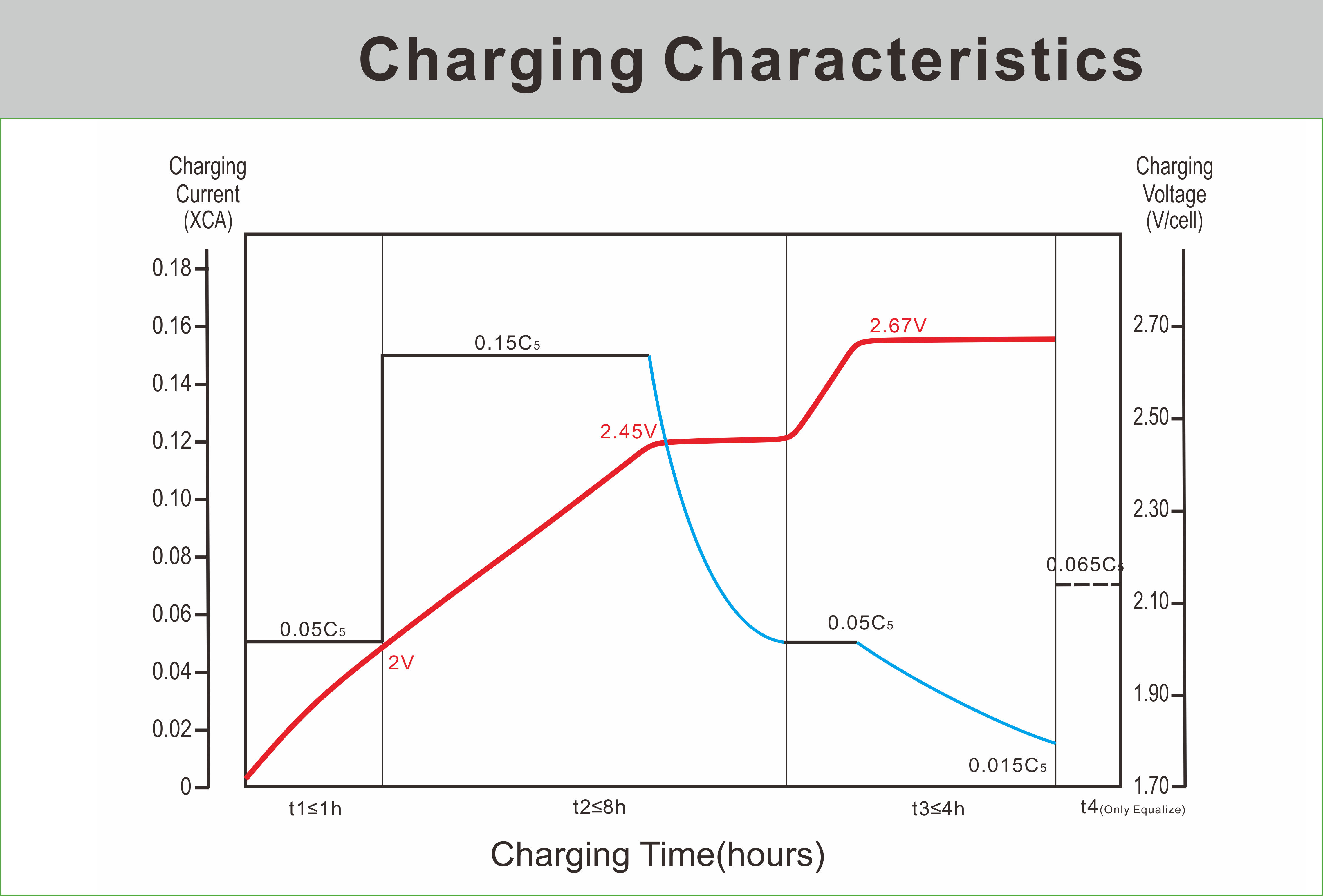

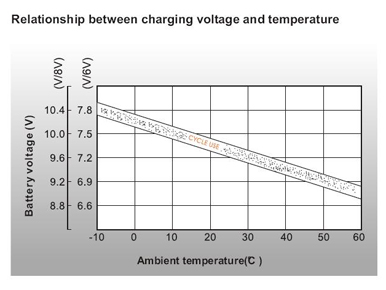

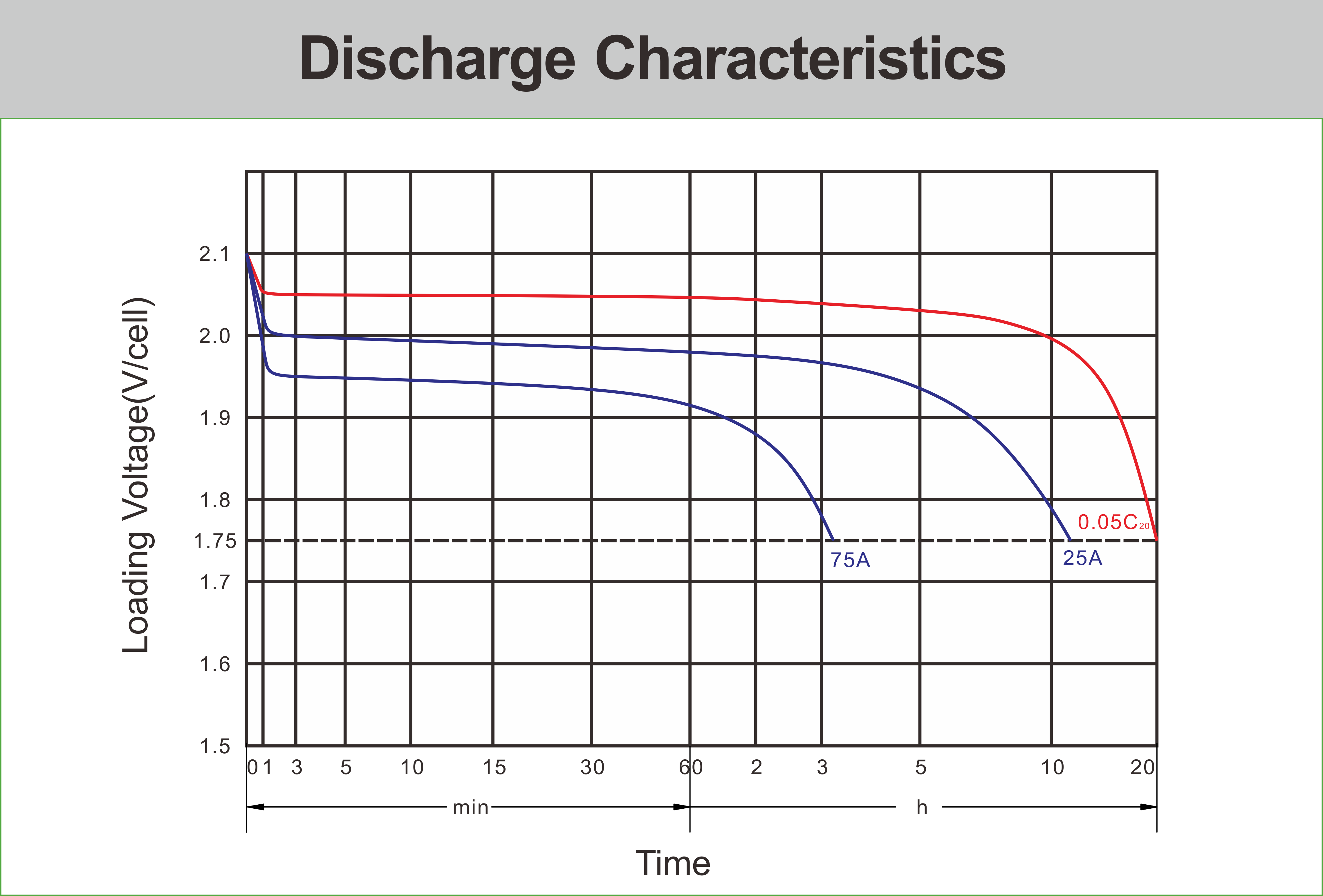

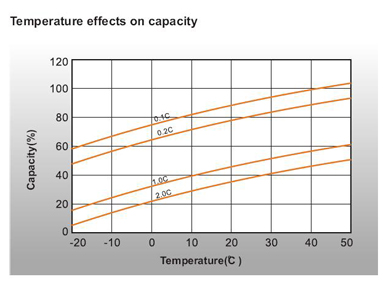

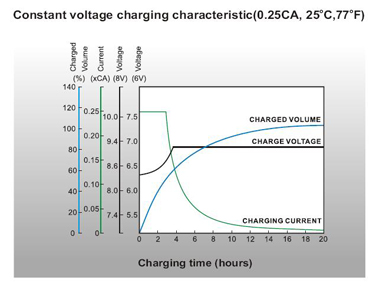

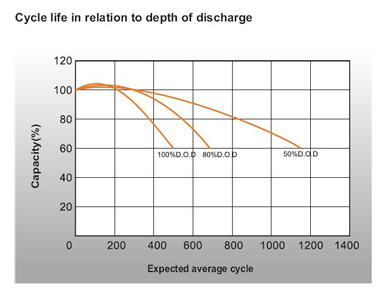

Features Application Curves Specification

1.Higher capacity and higher energy density.

2.Longer service life.

3.Excellent deep cycle property.

4.Private alloy and paste recipe for deep cycle application.

5.Refilling plugs with special construction guarantee less water consumption.

6.SiO2-PVC separator in nano grade.

7.Advanced TTP welding and heat sealing technology.

8.Terminals with high conductivity are very good at high current discharging.

9.Containers and lids are impact resistant and made of polypropylene(PP).

10.Wider operation temperature, safe and reliable.


1.Battery can be used as power for Golf Cart, Electrical car, Electric Sightseeing Car, toy Car, Mini-truck, The Transportation without Driver;

2.Battery can be used as power source for industrial Mineral firms, Warehouse, dock, Station, Airport and etc.


ModelRated
voltage
Ampere Hour Capacity(AH)Reserve
Capacity
Dimensions
mm(in.)
WeightTerminal
VC20C5@25A(min)@75A(min)LWHTHkg(lbs.)

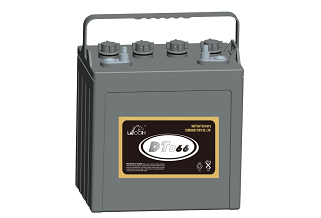

DT6066210175380105260 (10 1/4)180 (7 1/8)248 (9 3/4)279.5 (11 )24.2(53.4)WNT,LPT
DT1066225185445115260 (10 1/4)180 (7 1/8)248 (9 3/4)279.5 (11 )27.5 (60.6)WNT,LPT
DT1266240195485130260 (10 1/4)180 (7 1/8)248 (9 3/4)279.5 (11 )27.6(60.9)WNT,LPT
DT1466260215530145260 (10 1/4)180 (7 1/8)248 (9 3/4)279.5 (11 )28.2 (62.2)WNT,LPT
DT8668150125225E260 (10 1/4)180 (7 1/8)248 (9 3/4)279.5 (11 )23.7 (52.3)WNT,LPT

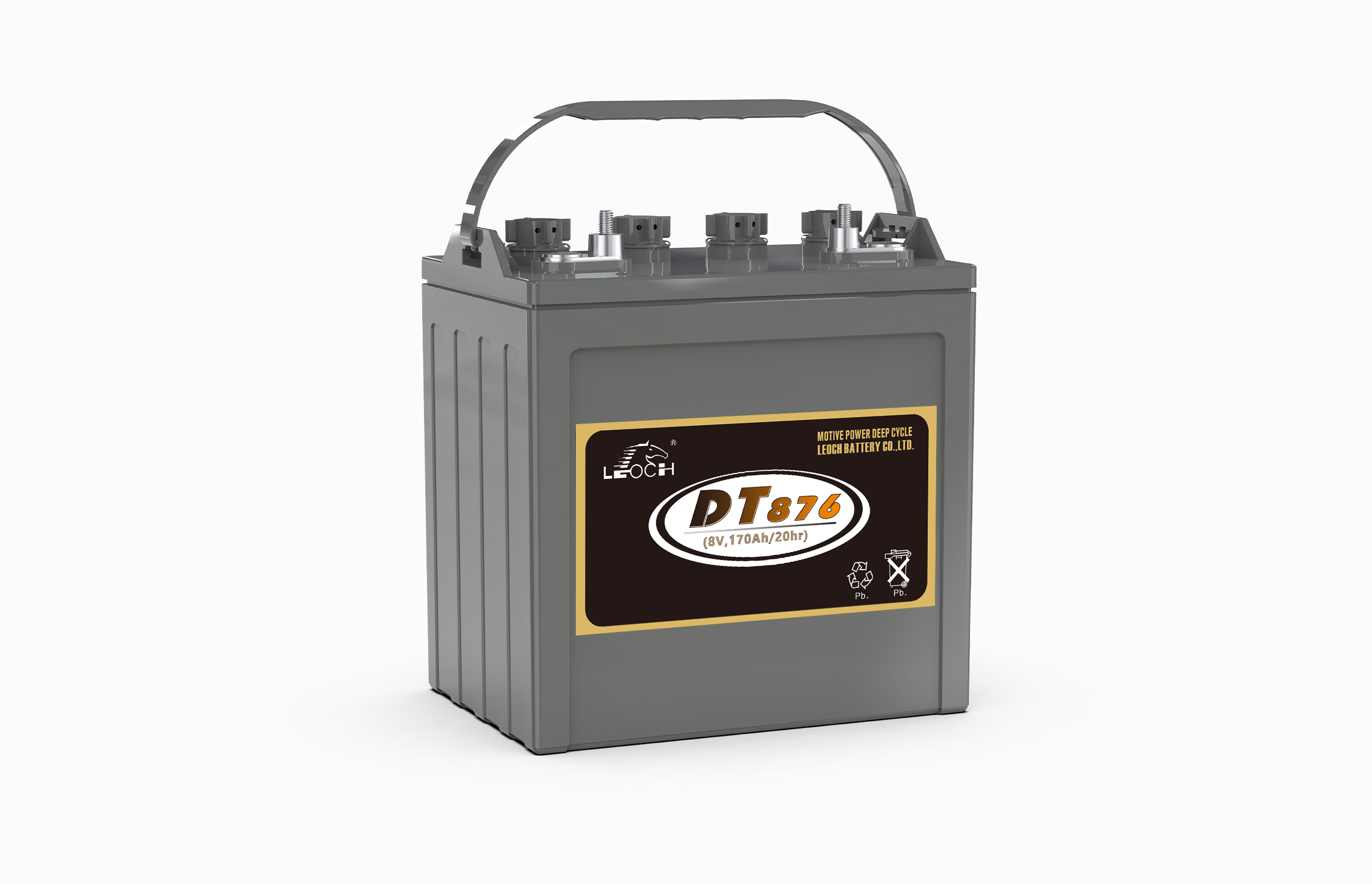

DT8768170145295F260 (10 1/4)180 (7 1/8)248 (9 3/4)279.5 (11 )26.6 (58.7)WNT,LPT
DT8968190155340G260 (10 1/4)180 (7 1/8)248 (9 3/4)279.5 (11 )30.3 (66.8)WNT,LPT
DT82408240190415110260 (10 1/4)180 (7 1/8)285(10 1/8)317 (12  1/2)35.9 (79.2)WNT,LPT

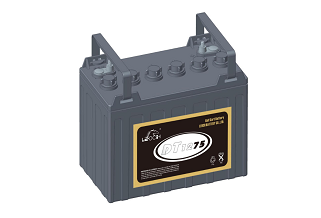

DT127512150120280H328 (12 7/8)180 (7 1/8)248 (9 3/4)279.5 (11 )33.5 (73.9)WNT,LPT
A20 hour rate is a BCI sanctioned rating expressing ampere hours required to achieve an end voltage of 1.75V/cell
at 27℃(80°F) and represents the batteries maximum capacity.
B5 hour rate is based on IEC ( International Electrotechnical Commission) temperature standard of 30℃( 86°F).
CReserve Capacity or Capacity - the number of minutes a battery can be discharged;at 25 or 75 amps
( 56 amps for 8 volt batteries ) at 27℃( 80°F)and maintain a voltage above 1.75V/cell .
DAll dimensions taken from bottom of battery to top of terminal heights may vary according to type of terminals specified.
ECapacity @ 56 amps is 90 minutes.
FCapacity @ 56 amps is 117 minutes.
GCapacity @ 56 amps is 132 minutes.
HCapacity @ 56 amps is 102 minutes.
