Li-on Motorcycle Battery

Li-on Motorcycle Battery

Motorcycle starting Lighting,automotive auxiliary power supply Lawn mower Jet ski and snowmobile power sports Water Craft.

Download

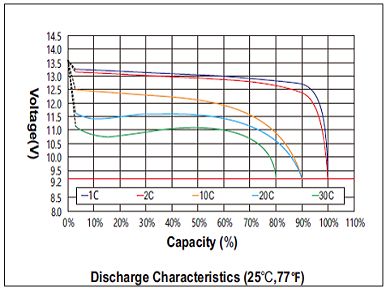

Features Application Curves Specification

1. Ultra light weight 1/3 of normal lead-acid battery.

2. No pollution, does not contain any acid and heavy metals, such as cadmium and mercury.

3. Premium charge acceptance, rechargeable with 10C current and recharged within 6 minutes.

4. Superb cranking power, cranking current greater than 30C (lead-acid battery 10C).

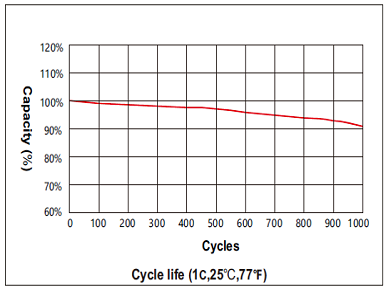

5. Excellent cycle life, more than 2000 cycles(lead-acid battery only 300cycles).

6. Low self discharge, longer storage times which more than 1year.

7. The discharge voltage is stable, which leads to engine performance

stable, and start the motorcycle more easy.


Motorcycle starting

Lighting,automotive auxiliary power supply

Lawn mower

Jet ski and snowmobile power sports

Water Craft.


Model

Voltage

(V)

Capacity

(10HR)

CCA
(ARGUS
AA500P)
Dimension
(±  2mm)
TerminalWeightCharge Current(A)Replaceable
 lead-acid
 battery model
AhALWHKgStandardMax.
LFPS-X4L12.81.61101137085A0.360.83.2

YTZ5S、YTX4L-BS、

YTX5L-BS

LFPS-Z7S12.821401137085A0.4214 YTZ7S、YTX7L-BS
LFPS-X7L12.82.41701137085A0.451.24.8 YTZ7S、YTX7L-BS

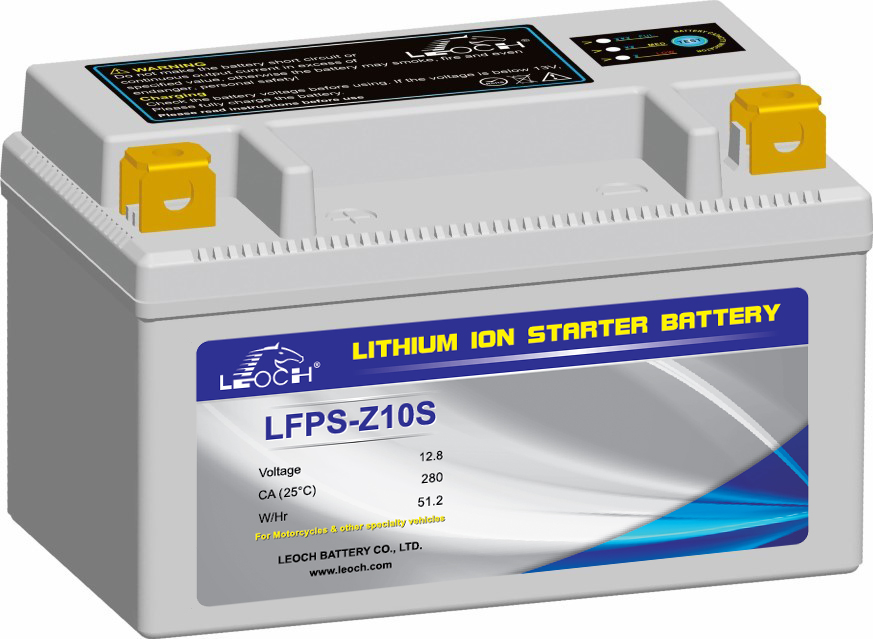

LFPS-Z10S12.842801508793A0.7028 YTZ10S
LFPS-X1212.83.52501508793A0.651.87

YTX12-BS、YTX12A-BS、

YB12B-B2

LFPS-X1412.842801508793A0.7028

YTX14H-BS、KMX14-BS、

YTX14-BS、HVT-8

LFPS-Z14S12.853501508793A0.852.510 YTZ12S、YTZ14S
LFPS-X912.8321015087105A0.611.56 YTX9-BS、YTR9-BS
LFPS-9B12.832101506693A0.561.56 YT7B-BS、YT9B-BS
LFPS-10B12.842801506693A0.6728YT7B-BS、YT9B-BS、YT12B-BS
LFPS-12B12.8535015066130A0.822.510

YT12B-BS、YT14B-BS、

YB16AL-A2

LFPS-X20H12.8742017587130A1.123.514

GYZ20H、YTX20H-BS、

YTX20-BS、YB16-B-CX、

YB16-B、YB18-A、

Y50-N18A-A

LFPS-X20HL12.8742017587130A1.123.514

GYZ20HL、YTX20
HL-BS、YTX20L-BS、
YB16CL-B、YB16L-B、
YB16HL-A-CX、YB18L-A、Y50-N18L-A
