LT ABS/Factory Activated
LT ABS/Factory Activated ，Wet charged AGM VRLA Maintenance Free type--ABS case
Download
LT ABS/Factory Activated ，Wet charged AGM VRLA Maintenance Free type--ABS case
Download1.ABS material plastic sealing construction.
2.Fully charged in factory with acid.
3.High Capacity,Long life.

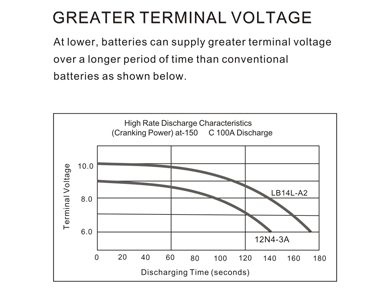

4.High CCA and good starting performance.
5.Good charging acceptance and vibration resistant performance.

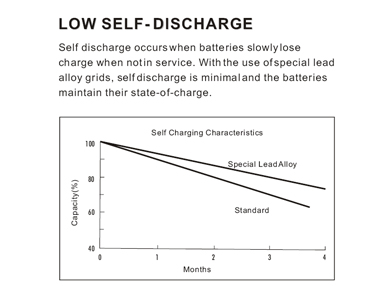

6.Low self-discharge.
7.Application of AGM technology, no flow electrolyte.
8.Application of COS and TTP.
9.Advanced sulfate-resistant technology.
10.Advanced calcium lead alloy technology, maintenance-free design.
11.Reliable seal and valve regulated design.
12.Full ranges models, good appearance and high standard design.
| Model | Voltage | Capacity | CCA | Dimensions(±2mm) | Dimensions(±1/16in.) | Weight | |||||
| V | Ah | @A | L | W | H | L | W | H | Kg | lbs | |
| 6LT4-2 | 6 | 4 | N/A | 70 | 70 | 95 | 2 3/4 | 2 3/4 | 3 3/4 | 0.86 | 1.9 |
| LT2.5-3-1 | 12 | 2.5 | 20 | 80 | 70 | 105 | 3 1/8 | 2 3/4 | 4 1/8 | 1.06 | 2.3 |
| LT2.5-3-2 | 12 | 2.5 | 20 | 80 | 70 | 105 | 3 1/4 | 2 3/4 | 4 1/4 | 1.04 | 2.3 |
| LT3-3 | 12 | 3 | 25 | 98 | 56 | 110 | 3 3/4 | 2 1/4 | 4 1/4 | 1.08 | 2.4 |
| LTR4A-5 | 12 | 2.3 | 45 | 113 | 48 | 85 | 4 4/8 | 2 | 3 3/8 | 0.96 | 2.1 |
| LT4B-5 | 12 | 2.3 | 40 | 113 | 38 | 85 | 4 4/8 | 1 2/4 | 3 3/8 | 0.91 | 2.0 |
| LT4-3 | 12 | 3 | 40 | 113 | 70 | 85 | 4 2/4 | 2 3/4 | 3 1/4 | 1.31 | 2.9 |
| LT4-3-2 | 12 | 3 | 40 | 113 | 70 | 85 | 4 2/4 | 2 3/4 | 3 1/4 | 1.27 | 2.8 |
| LT4A-3 | 12 | 4 | 60 | 120 | 70 | 92 | 4 6/8 | 2 3/4 | 3 5/8 | 1.61 | 3.5 |
| LT5-3 | 12 | 4 | 55 | 113 | 70 | 105 | 4 4/8 | 2 3/4 | 4 1/8 | 1.68 | 3.7 |
| LT5-3-2 | 12 | 4 | 55 | 113 | 70 | 105 | 4 4/8 | 2 3/4 | 4 1/8 | 1.64 | 3.6 |

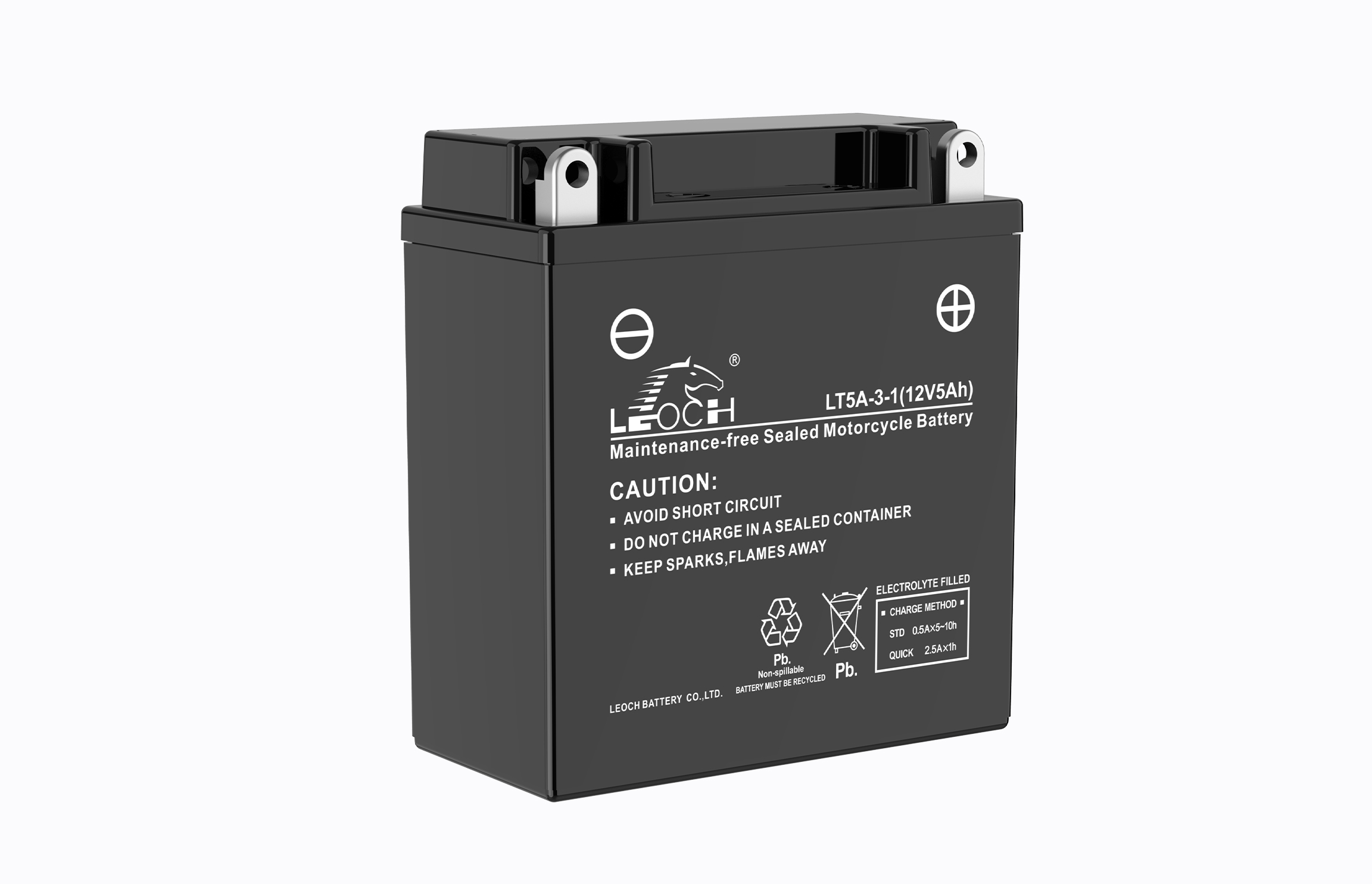

| LT5A-3-1 | 12 | 5 | 60 | 119 | 59 | 130 | 4 3/4 | 2 1/4 | 5 | 1.76 | 3.9 |
| LTC5A-3 | 12 | 5 | 60 | 118 | 58 | 130 | 4 3/4 | 2 1/4 | 5 | 1.74 | 3.8 |
| LT6.5-3 | 12 | 6.5 | 70 | 139 | 66 | 102 | 5 2/4 | 2 2/4 | 4 | 2.18 | 4.8 |
| LT7-3 | 12 | 6 | 70 | 113 | 70 | 130 | 4 4/8 | 2 3/4 | 5 1/8 | 2.14 | 4.7 |
| LT7-3-2 | 12 | 6 | 70 | 113 | 70 | 130 | 4 2/4 | 2 3/4 | 5 | 2.10 | 4.6 |
| LT7A-4 | 12 | 6 | 70 | 150 | 87 | 93 | 6 | 3 2/4 | 3 3/4 | 2.40 | 5.3 |
| LT7B-4 | 12 | 6.5 | 85 | 150 | 65 | 93 | 5 7/8 | 2 2/4 | 3 5/8 | 2.30 | 5.1 |
| LT7D-3 | 12 | 7 | 90 | 146 | 60 | 130 | 5 3/4 | 2 1/4 | 5 | 2.40 | 5.3 |
| LT7D-4 | 12 | 7 | 75 | 146 | 60 | 130 | 5 6/8 | 2 1/4 | 5 1/8 | 2.27 | 5.0 |
| LT7E-4 | 12 | 7 | 60 | 136 | 75 | 122 | 5 1/4 | 3 | 4 3/4 | 2.55 | 5.6 |
| LT7E-3 | 12 | 7 | 90 | 136 | 75 | 122 | 5 3/8 | 3 | 4 6/8 | 2.75 | 6.1 |
| LTZ7-3 | 12 | 6 | 130 | 113 | 70 | 105 | 4 2/4 | 2 3/4 | 4 1/4 | 2.00 | 4.4 |
| LT9-4 | 12 | 8 | 120 | 150 | 87 | 105 | 5 7/8 | 3 2/4 | 4 1/8 | 3.05 | 6.7 |
| LT9A-3 | 12 | 9 | 120 | 135 | 75 | 139 | 5 1/4 | 3 | 5 2/4 | 3.05 | 6.7 |
| LT9A-4 | 12 | 9 | 90 | 135 | 75 | 139 | 5 1/4 | 3 | 5 2/4 | 2.85 | 6.3 |
| LT9B-4 | 12 | 8 | 115 | 150 | 68 | 105 | 6 | 2 3/4 | 4 1/4 | 2.60 | 5.7 |
| LT10-3 | 12 | 10 | 160 | 135 | 90 | 145 | 5 3/8 | 3 4/8 | 5 6/8 | 3.69 | 8.1 |
| LT10-3-PW | 12 | 10 | 160 | 135 | 90 | 155 | 5 3/8 | 3 4/8 | 6 1/8 | 3.73 | 8.2 |
| LTZ10-4 | 12 | 8.6 | 100 | 150 | 87 | 93 | 5 7/8 | 3 7/16 | 3 11/16 | 2.70 | 5.9 |
| LT12A-4 | 12 | 10 | 175 | 150 | 87 | 105 | 5 7/8 | 3 7/16 | 4 1/8 | 3.27 | 7.2 |
| LT12B-4 | 12 | 10 | 175 | 150 | 69 | 130 | 5 7/8 | 2 11/16 | 5 1/8 | 3.56 | 7.8 |
| LT12-3 | 12 | 10 | 180 | 150 | 87 | 130 | 5 7/8 | 3 7/16 | 5 1/8 | 3.90 | 8.6 |
| LT12-4 | 12 | 10 | 180 | 150 | 87 | 130 | 5 7/8 | 3 7/16 | 5 1/8 | 3.90 | 8.6 |
| LTZ12-4 | 12 | 11 | 210 | 150 | 87 | 110 | 5 7/8 | 3 7/16 | 4 5/16 | 3.27 | 7.2 |
| LT14-3 | 12 | 12 | 160 | 150 | 87 | 145 | 5 7/8 | 3 7/16 | 5 6/8 | 4.17 | 9.2 |

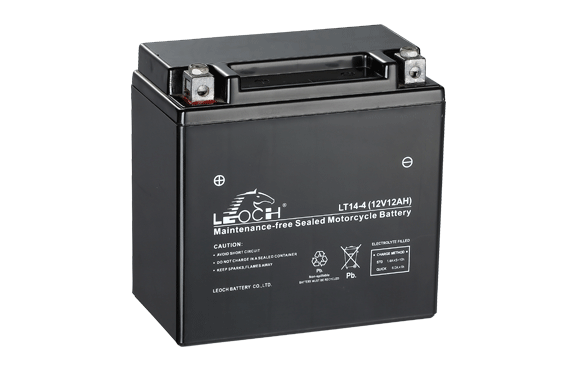

| LT14-4 | 12 | 12 | 200 | 150 | 87 | 145 | 5 7/8 | 3 7/16 | 5 11/16 | 4.42 | 9.7 |
| LT14A-4 | 12 | 12 | 210 | 135 | 90 | 166 | 5 3/8 | 3 9/16 | 6 4/8 | 4.60 | 10.1 |
| LT14A-4-PW | 12 | 12 | 210 | 135 | 90 | 176 | 5 3/8 | 3 9/16 | 6 7/8 | 4.64 | 10.2 |
| LT14A-3 | 12 | 12 | 210 | 135 | 90 | 166 | 5 5/16 | 3 9/16 | 6 4/8 | 4.60 | 10.1 |
| LT14B-4 | 12 | 12 | 210 | 150 | 69 | 145 | 5 7/8 | 2 11/16 | 5 6/8 | 4.16 | 9.2 |
| LTZ14-4 | 12 | 11.2 | 230 | 150 | 87 | 110 | 5 7/8 | 3 7/16 | 4 5/16 | 3.47 | 7.6 |
| LT15-3 | 12 | 13 | 230 | 175 | 87 | 130 | 6 7/8 | 3 7/16 | 5 1/8 | 4.73 | 10.4 |
| LT15-4 | 12 | 13 | 230 | 175 | 87 | 130 | 6 7/8 | 3 7/16 | 5 1/8 | 4.73 | 10.4 |
| LT16-3 | 12 | 14 | 230 | 150 | 87 | 161 | 5 7/8 | 3 7/16 | 6 3/8 | 5.05 | 11.1 |
| LT16-4 | 12 | 14 | 230 | 150 | 87 | 161 | 5 7/8 | 3 7/16 | 6 5/16 | 5.05 | 11.1 |
| LT16A-4 | 12 | 14 | 230 | 150 | 87 | 161 | 5 7/8 | 3 7/16 | 6 3/8 | 5.01 | 11.0 |
| LT16C-3 | 12 | 19 | 260 | 175 | 100 | 175 | 6 7/8 | 3 15/16 | 6 7/8 | 6.48 | 14.3 |
| LT18-3 | 12 | 18 | 250 | 205 | 87 | 162 | 8 1/8 | 3 7/16 | 6 3/8 | 6.55 | 14.4 |
| LT18-4 | 12 | 18 | 250 | 205 | 87 | 162 | 8 1/16 | 3 7/16 | 6 3/8 | 6.55 | 14.4 |

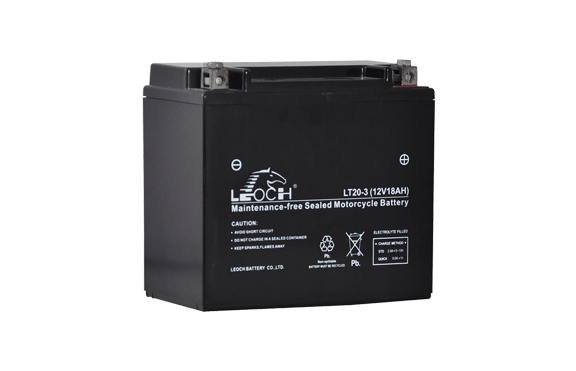

| LT20-3 | 12 | 18 | 270 | 175 | 87 | 155 | 6 7/8 | 3 7/16 | 6 1/8 | 5.60 | 12.3 |
| LT20-4 | 12 | 18 | 270 | 175 | 87 | 155 | 6 7/8 | 3 7/16 | 6 1/8 | 5.60 | 12.3 |
| LT20H-3 | 12 | 18 | 310 | 175 | 87 | 155 | 6 7/8 | 3 7/16 | 6 1/8 | 6.00 | 13.2 |
| LT20H-4 | 12 | 18 | 310 | 175 | 87 | 155 | 6 7/8 | 3 7/16 | 6 1/8 | 6.00 | 13.2 |
| LT24-3 | 12 | 21 | 350 | 205 | 87 | 162 | 8 1/8 | 3 7/16 | 6 3/8 | 7.10 | 15.6 |
| LT24-4 | 12 | 21 | 350 | 205 | 87 | 162 | 8 1/16 | 3 7/16 | 6 3/8 | 7.10 | 15.6 |
| LT24-3-1 | 12 | 21 | 350 | 205 | 87 | 162 | 8 1/8 | 3 7/16 | 6 3/8 | 7.10 | 15.6 |

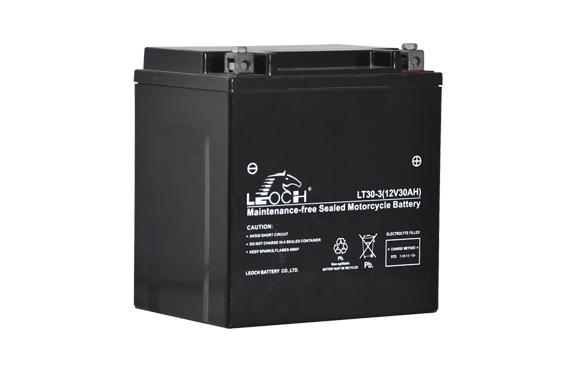

| LT30-3 | 12 | 30 | 385 | 165 | 125 | 175 | 6 1/2 | 4 15/16 | 6 7/8 | 9.52 | 21.0 |
| LT30-4 | 12 | 30 | 385 | 165 | 125 | 175 | 6 4/8 | 4 15/16 | 6 7/8 | 9.52 | 21.0 |
| LT4-3-3 | 12 | 3 | 40 | 113 | 70 | 85 | 4 2/4 | 2 3/4 | 3 1/4 | 1.30 | 2.9 |
| LT9-4-3 | 12 | 8 | 100 | 150 | 87 | 105 | 5 7/8 | 3 2/4 | 4 1/8 | 2.80 | 6.2 |
| LT20CH-4 | 12 | 18 | 270 | 150 | 87 | 161 | 5 7/8 | 3 7/16 | 6 3/8 | 5.61 | 12.4 |
