OPzV Series

LEOCH OPzV series for Solar Energy Storage

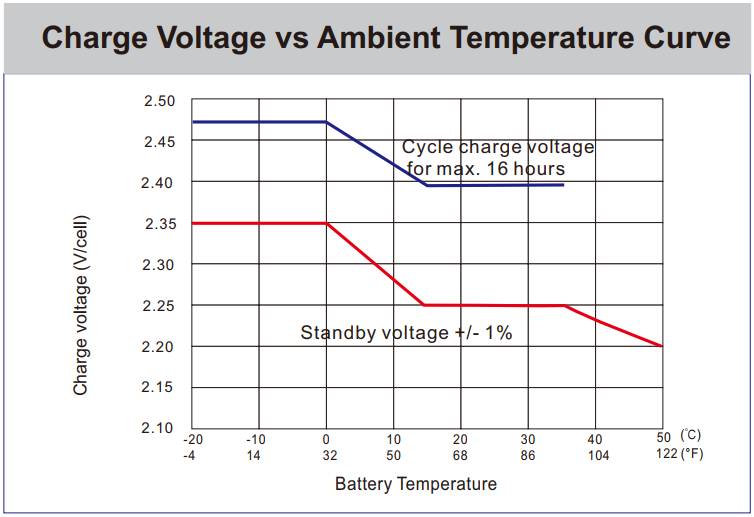

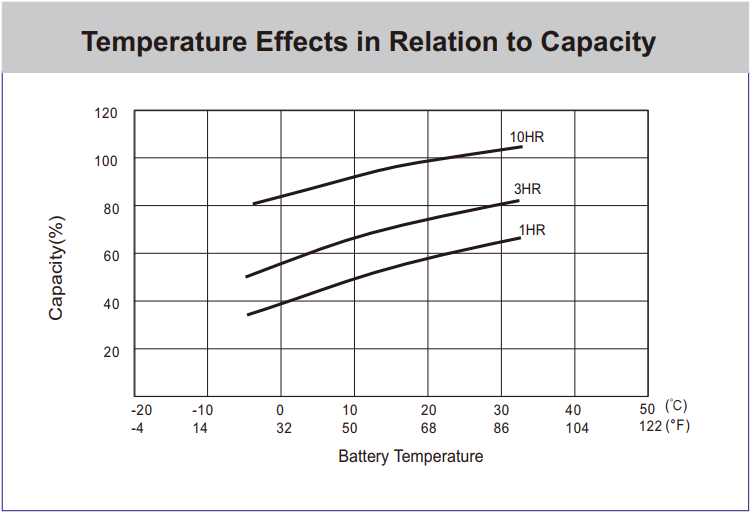

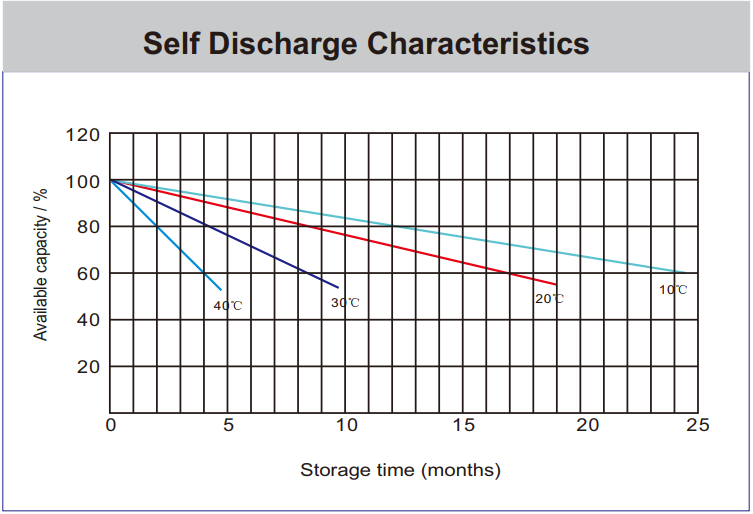

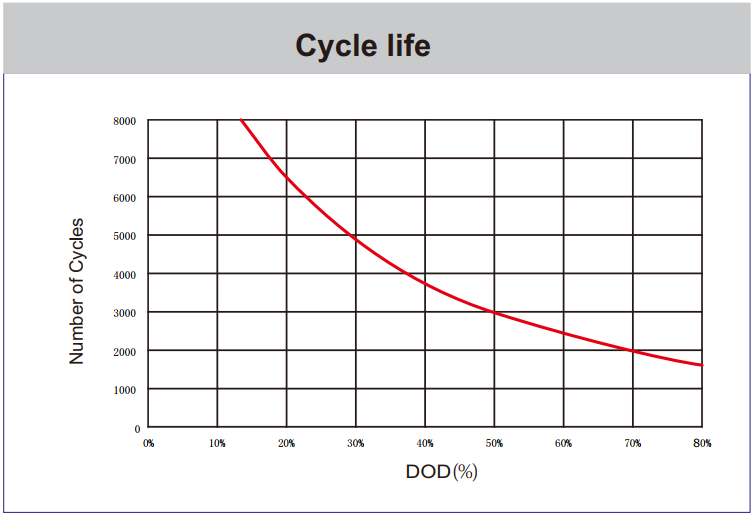

Specification Features Application Curves

Model	Rated Voltage	Rated Capacity		Approx. Dimensions										Terminal
	Rated Voltage	100Hr@ 1.80V/cell	10Hr@ 1.80V/cell	Length		Width		Height		TH		Weight
	(V)	(AH)	(AH)	mm	in.	mm	in.	mm	in.	mm	in.	kg	lbs

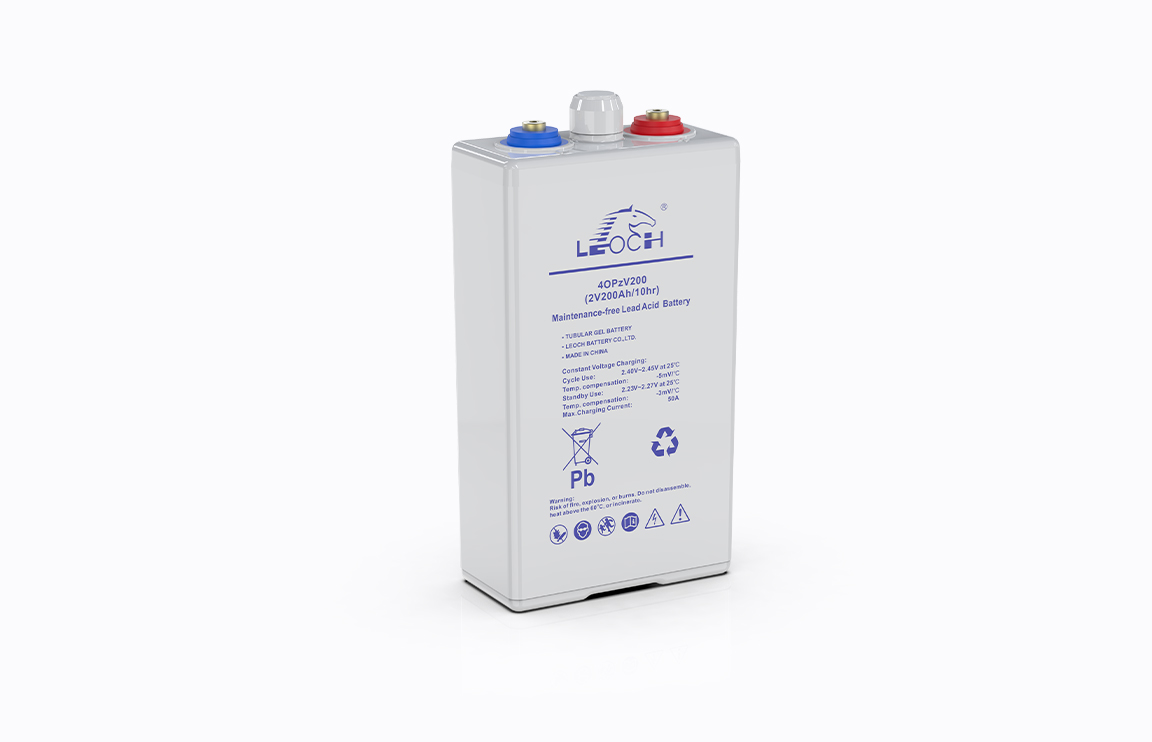

4OPzV200	2	260	220	103	4.06	206	8.11	355	13.98	390	15.35	18.8	41.5	T7-A(M8)
5OPzV250	2	325	250	124	4.88	206	8.11	355	13.98	390	15.35	22.4	49.4	T7-A(M8)

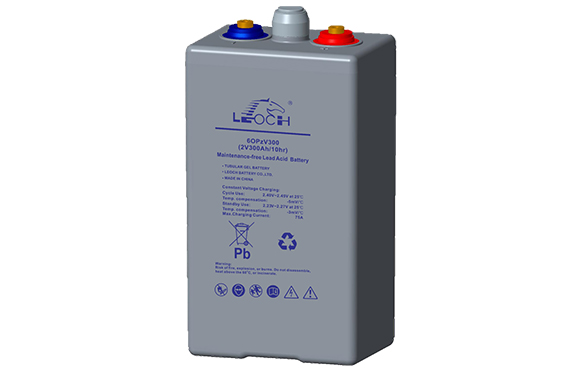

6OPzV300	2	390	300	145	5.71	206	8.11	355	13.98	390	15.35	26.4	58.2	T7-A(M8)
5OPzV350	2	455	380	124	4.88	206	8.11	471	18.54	506	19.92	29	63.9	T7-A(M8)
6OPzV420	2	546	450	145	5.71	206	8.11	471	18.54	506	19.92	34.5	76.1	T7-A(M8)
7OPzV490	2	637	500	166	6.54	206	8.11	471	18.54	506	19.92	39	86	T7-A(M8)
6OPzV600	2	780	600	145	5.71	206	8.11	646	25.43	681	26.81	48	105.8	T7-A(M8)
8OPzV800	2	1040	800	191	7.52	210	8.27	646	25.43	681	26.81	65.1	143.5	T7-A(M8)
10OPzV1000	2	1300	1000	233	9.17	210	8.27	646	25.43	681	26.81	78.5	173.1	T7-A(M8)
12OPzV1200	2	1560	1200	275	10.83	210	8.27	646	25.43	681	26.81	93	205.1	T7-A(M8)
12OPzV1500	2	1950	1500	275	10.83	210	8.27	796	31.34	831	32.72	115	253.6	T7-A(M8)
16OPzV2000	2	2600	2000	399	15.71	214	8.27	772	30.39	807	31.77	155	341.8	T7-A(M8)
20OPzV2500	2	3250	2500	487	19.17	212	8.35	772	30.39	807	31.77	196	432.2	T7-A(M8)
24OPzV3000	2	3900	3000	576	22.68	212	8.35	772	30.39	807	31.77	232	511.6	T7-A(M8)

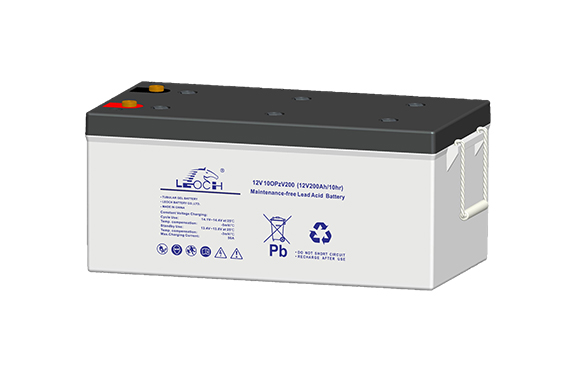

12V9OPzV200	12	240	200	521	20.5	268	10.6	220	8.66	226	8.90	70	154.3	T11(M8)

Parameter information subject to the contract, here for your reference only.

General Features

1. Design life12V series 16 years and 2V series 20 years @20°C in continuous float operation down to approx 80% capacity.

2. Excellent recovery performance

3. Wide working temperature range (-20~55)℃

4. No electrolyte stratification provides longer service life

5. High recombination efficient

6. Build in copper core based in lead will carry large current

7. Separator imported form AMER-SIL high porosity. PVC-SiO2 and low resistance

8. Pasted negative plate special grid design increase the active material.availablity large current discharge and charge ability

9. Tubuler type positive plate (polyester tube) prevent the active material from falling. Muti metal alloy pressed positive grid increase the anti corrosion ablity and service life

Applications

1. Green energy systems (solar, wind, hydro, etc)

2. Telecommunications installations

3. Alarm installations

4. Street lightening

5. Solar power stations

6. Signal station

7. Traffic lights

8. Railway crossing

9. Pump systems

10. Street signs

11. Lawn lamp
