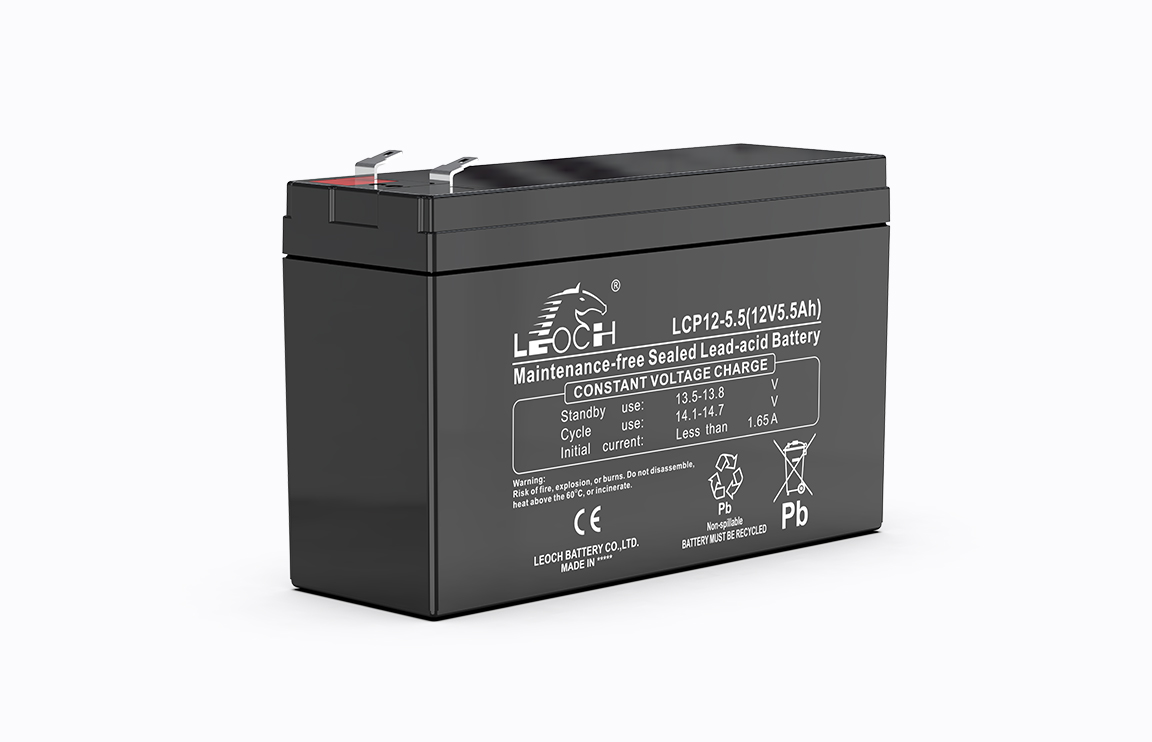

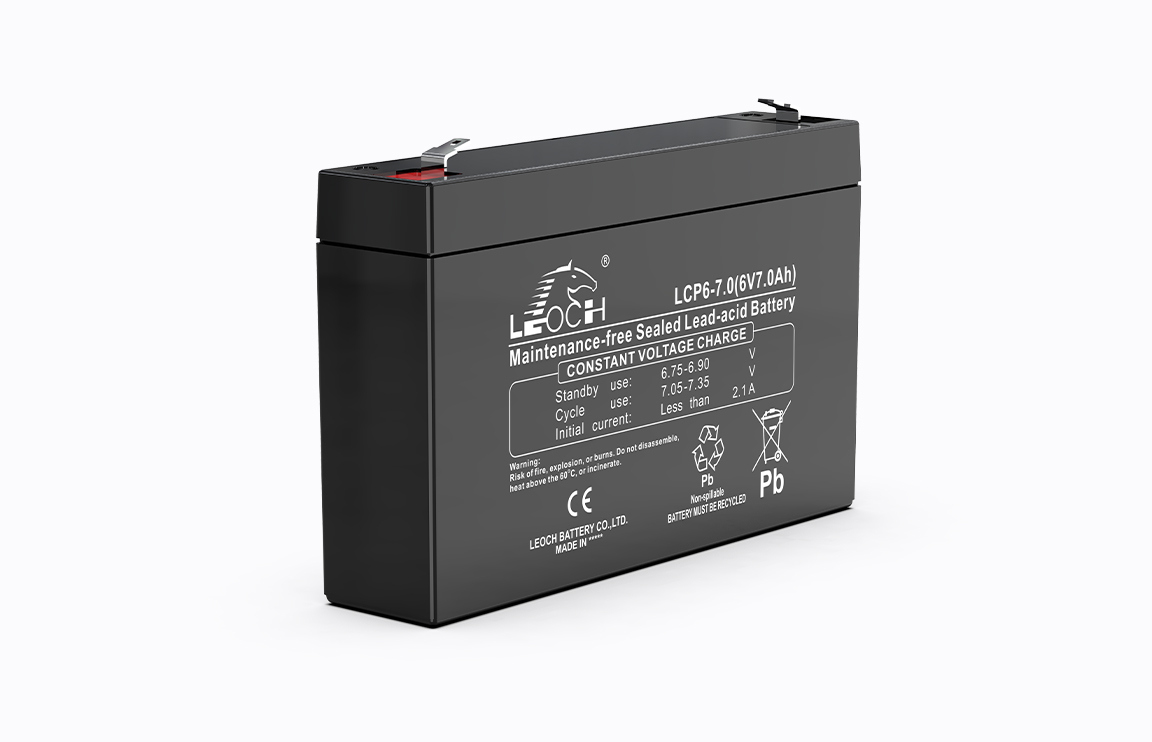

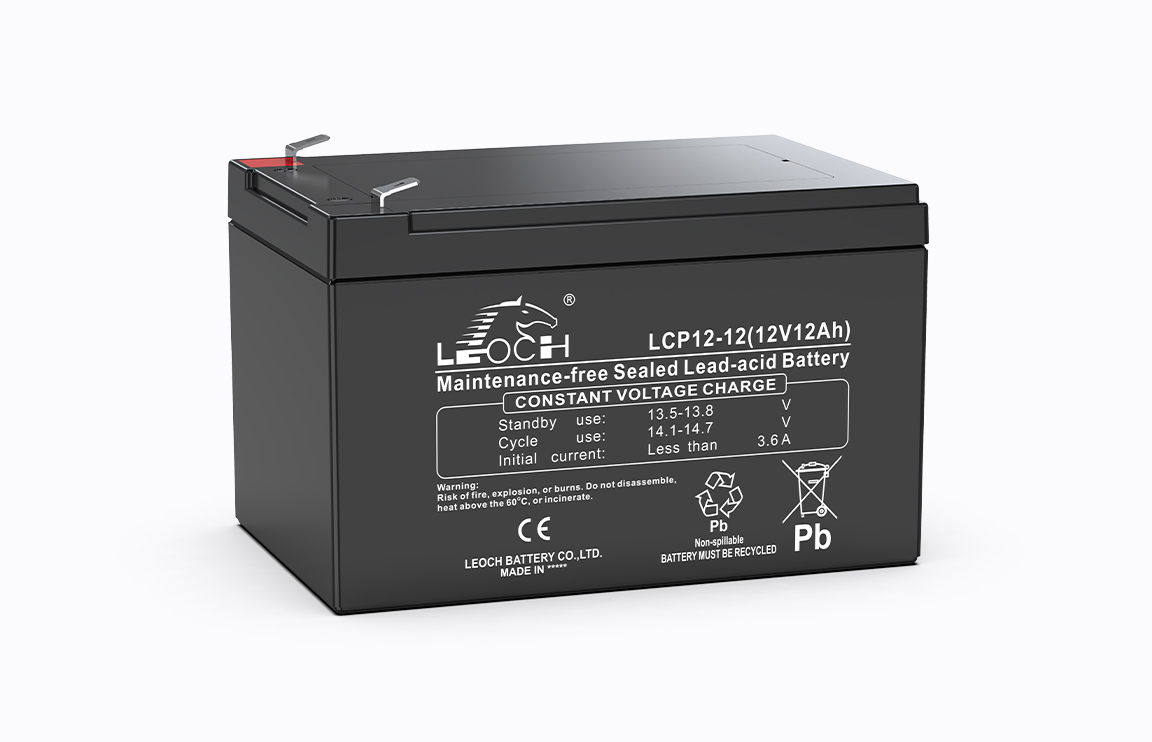

LCP Series

LCP Series Batteries use the most advanced technology of fast punched thin plate (FPTP) for punching grid batteries. Compared to traditional technology, FPTP has higher speed, simplified technology, more energy efficient, environmentally friendly, and higher consistency of product. Overall, this technology is a mechanized and automatic process, which reduces 30% lead consumption and saves 40% more energy. This process is encouraged by the Energy Saving and Emission Reduction Policies international.

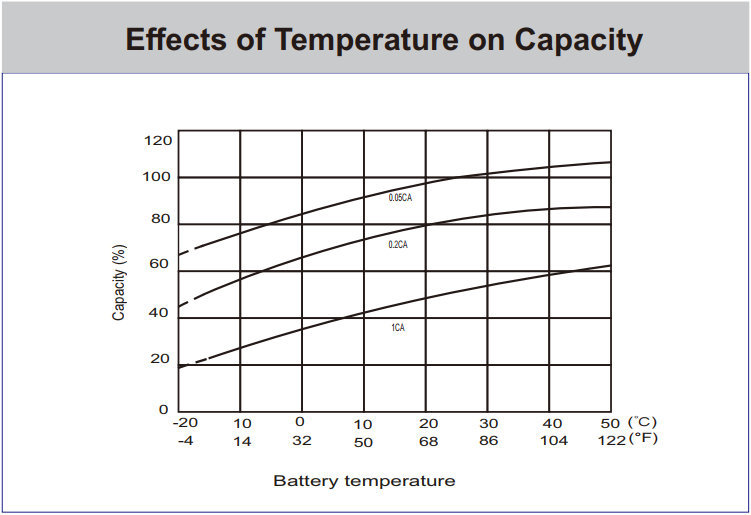

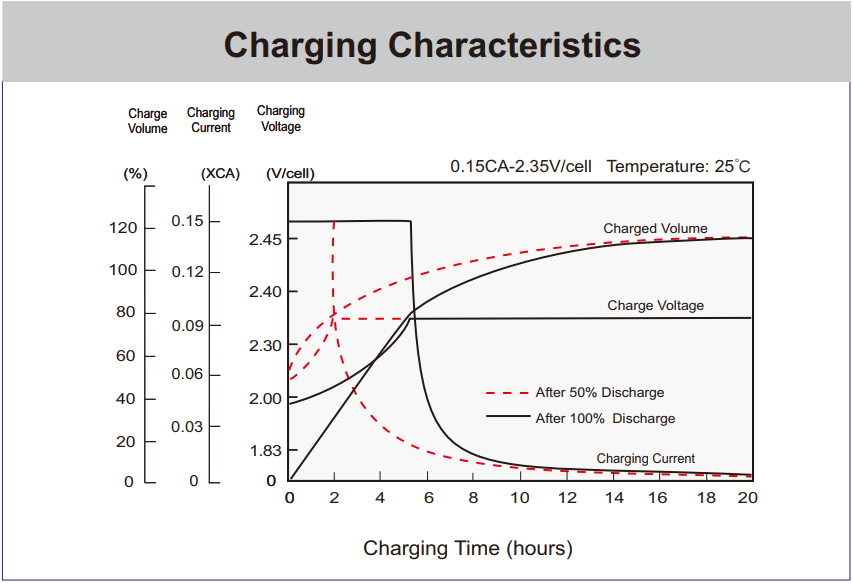

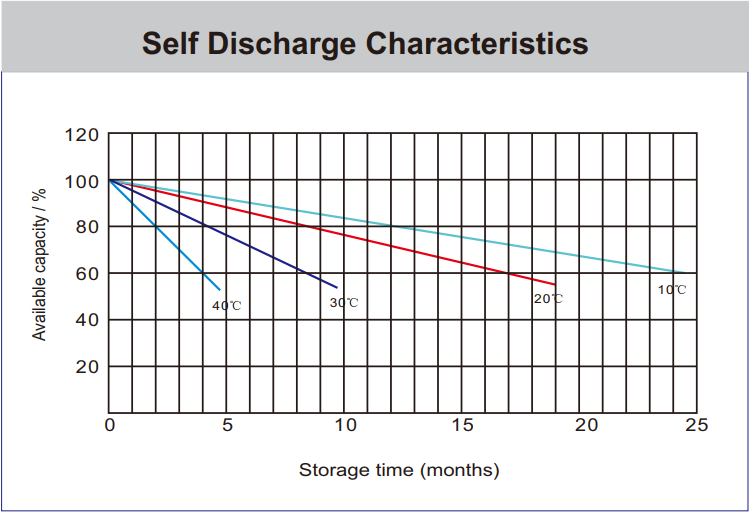

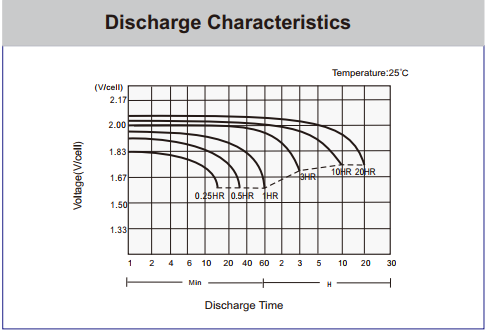

Specification Features Application Curves

Model	Rated Voltage	W15min	20hr	10hr	Length	Width	Height	TH	Weight	Terminal Type
Model	V	1.67V/cell	1.75V/cell	1.80V/cell	mm	mm	mm	mm	kg	Terminal Type
LCP6-22W	6	22	7		150	34	94	100	1	T1/T2
LCP6-24W	6	24	7		150	34	94	100	1.07	T1/T2
LCP12-19W	12	19	5.5		151	51	93	99	1.75	T1/T2
LCP12-22W	12	22	7		151	65	93.5	99.5	1.82	T1/T2
LCP12-24W	12	24	7		151	65	93.5	99.5	2.13	T1/T2
LCP12-26W	12	26	7		151	65	93.5	99.5	2.17	T1/T2
LCP12-28W	12	28	7.5		151	65	93.5	99.5	2.24	T1/T2
LCP12-32W	12	32	8		151	65	93.5	99.5	2.31	T1/T2
LCP12-34W	12	34	8		151	65	93.5	99.5	2.35	T1/T2
LCP12-36W	12	36	9		151	65	93.5	99.5	2.46	T1/T2
LCP12-40W	12	40	12		151	98	95	101	3.38	T1/T2
LCP12-42W	12	42	12		151	98	95	101	3.48	T1/T2
LCP12-50W	12	50	14		151	98	95	101	3.58	T1/T2

Parameter information subject to the contract, here for your reference only.

• 5years design life (25℃)

• Lead calcium alloy, sealed design, no watering required

• Puncture resistant micro-porous glass mat separators extend life

•Automatic grid punch manufacturing process and unique technology optimizes power capacity,cell consistency,and long-term reliability and service life

1.Uninterruptable Power Supply (UPS)

2.Electric Power System (EPS)

3.Emergency backup power supply

4.Alarm and security system

5.Communication power supply

6.DC power supply

7.Auto control system
