Conventional Flooded
Conventional Flooded type
Contact US
| Model | Voltage | Capacity | CCA | Dimensions | Weight | Terminal | |||||
| (V) | (10Hr) | @ | mm | in | |||||||
| Ah | (-18℃) | L | W | H | L | W | H | Kg | |||
| 6N6-3B | 6 | 6 | N/A | 99 | 57 | 111 | 3 14/16 | 2 4/16 | 4 6/16 | 1.24 | B |
| 6N6-3B-1 | 6 | 6 | N/A | 99 | 57 | 111 | 3 14/16 | 2 4/16 | 4 6/16 | 1.24 | B |
| 6N11A-1B | 6 | 11 | N/A | 122 | 62 | 131 | 4 13/16 | 2 7/16 | 5 3/16 | 2.06 | B |
| 6N11A-3A | 6 | 11 | N/A | 122 | 62 | 131 | 4 13/16 | 2 7/16 | 5 3/16 | 2.06 | B |
| 12N5S-3B | 12 | 5 | 55 | 120 | 61 | 130 | 4 12/16 | 2 6/16 | 5 2/16 | 1.95 | B |

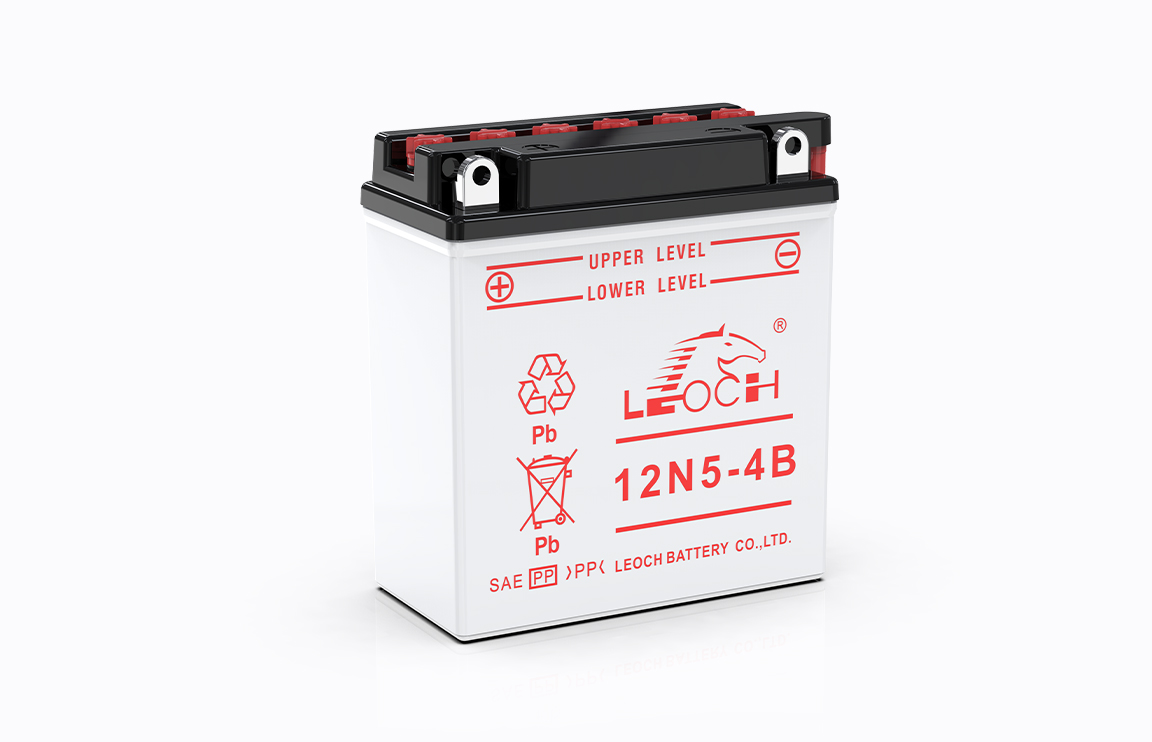

| 12N5-4B | 12 | 5 | 40 | 120 | 61 | 130 | 4 12/16 | 2 6/16 | 5 2/16 | 2.12 | B |
| 12N5.5-3B | 12 | 5.5 | 44 | 135 | 60 | 130 | 5 5/16 | 2 6/16 | 5 2/16 | 2.22 | B |
| 12N6-3B | 12 | 5.5 | 50 | 137 | 72 | 95 | 5 6/16 | 2 13/16 | 3 12/16 | 2.09 | B |
| 12N6.5-3B | 12 | 6.5 | 55 | 138 | 73 | 107 | 5 7/16 | 2 14/16 | 4 3/16 | 2.36 | B |
| 12N7-3A | 12 | 7 | 74 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.86 | B |
| 12N7-3B | 12 | 7 | 74 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.86 | B |
| 12N7-3B(J) | 12 | 7 | 65 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.66 | B |

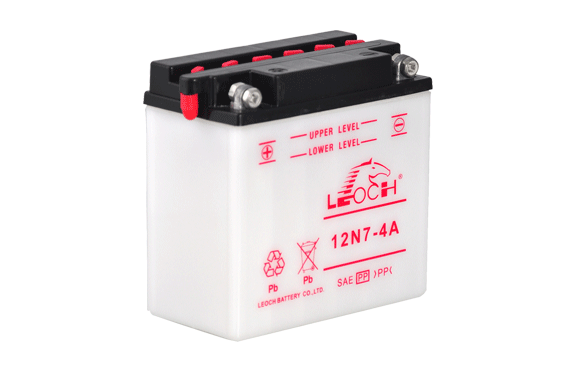

| 12N7-4A | 12 | 7 | 74 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.86 | B |
| 12N7-4A(J) | 12 | 7 | 65 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.66 | B |
| 12N7-4B | 12 | 7 | 74 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.86 | B |
| 12N7A-3A | 12 | 7 | 70 | 150 | 60 | 130 | 5 14/16 | 2 6/16 | 5 2/16 | 2.63 | B |
| 12N7A-3A(J) | 12 | 7 | 60 | 150 | 60 | 130 | 5 14/16 | 2 6/16 | 5 2/16 | 2.49 | B |
| 12N9-3B | 12 | 9 | 85 | 135 | 75 | 139 | 5 5/16 | 2 15/16 | 5 8/16 | 2.99 | B |
| 12N9-4B-1 | 12 | 9 | 85 | 135 | 75 | 139 | 5 5/16 | 2 15/16 | 5 8/16 | 2.99 | B |
| 12N9-4B-1(J) | 12 | 9 | 70 | 135 | 75 | 139 | 5 5/16 | 2 15/16 | 5 8/16 | 2.81 | B |
| 12N10-3B | 12 | 10 | 95 | 134 | 89 | 145 | 5 4/16 | 3 8/16 | 5 11/16 | 3.67 | B |
| 12N12A-4A-1 | 12 | 12 | 113 | 134 | 81 | 160 | 5 4/16 | 3 3/16 | 6 5/16 | 4.18 | B |
| 12N12A-4A-1(J) | 12 | 12 | 95 | 134 | 81 | 160 | 5 4/16 | 3 3/16 | 6 5/16 | 3.90 | B |
| 12N14-3A2 | 12 | 14 | 128 | 134 | 89 | 166 | 5 4/16 | 3 8/16 | 6 9/16 | 4.19 | D |
| 12N14-4A | 12 | 14 | 128 | 134 | 89 | 166 | 5 4/16 | 3 8/16 | 6 9/16 | 4.19 | D |
| 12C16A-3A | 12 | 18 | 210 | 186 | 82 | 171 | 7 5/16 | 3 4/16 | 6 12/16 | 5.93 | G |
| 12C16A-3B | 12 | 18 | 210 | 186 | 82 | 171 | 7 5/16 | 3 4/16 | 6 12/16 | 5.93 | G |
| 12N24-4 | 12 | 24 | 218 | 184 | 124 | 175 | 7 4/16 | 4 14/16 | 6 14/16 | 7.52 | G |
| 12N24-3A(J) | 12 | 24 | 200 | 184 | 124 | 175 | 7 4/16 | 4 14/16 | 6 14/16 | 7.07 | G |
| CHD4-12 | 12 | 28 | 280 | 205 | 130 | 165 | 8 1/16 | 5 2/16 | 6 8/16 | 8.22 | H |
Parameter information subject to the contract, here for your reference only.
1. High Capacity, Long service life.
2. High CCA and excellent starting performance.
3. Strong vibration-resistant performance.
4. High-quality composite of Fiber Glass and PE separators Application.
5. Application of TTP technology.
6. Dry-charged design, allowing long storage and immediate use when needed.
7. Simple operation and easy maintenance
8. Comprehensive model range with aesthetically pleasing appearance and high standard design.
1. ATV.
2. Jet ski.
3. Motorcycle.
4. Snowmobile.
5. Lawn & Garden.
