LPGS Series

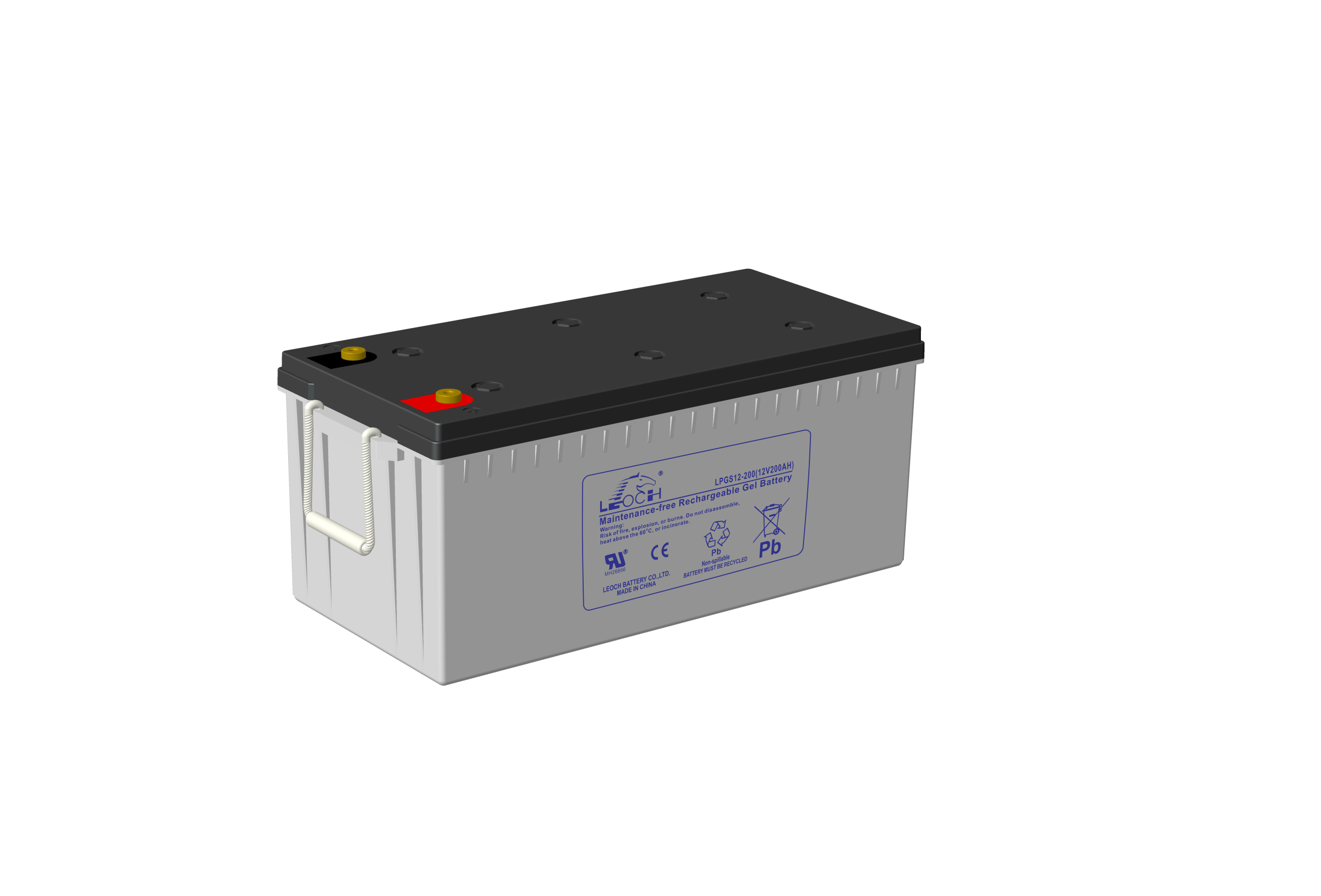

TRUE Hybrid GEL Battery

Contact US

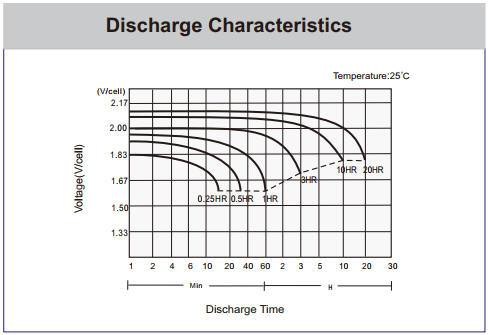

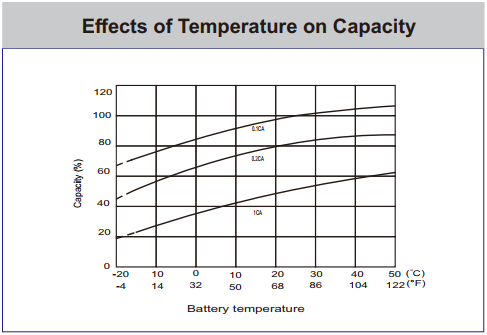

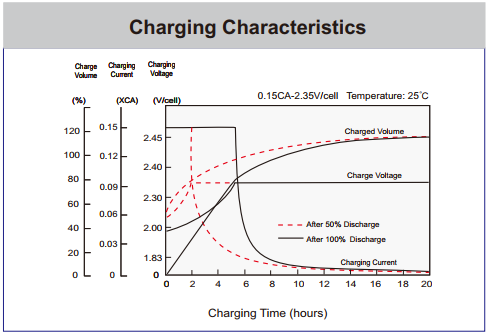

Specification Features Application Curves

Model	Rated Voltage	20HR	10HR	Length	Width	Height	TH	Weight	Terminal
Model	V	1.80V/cell		mm	mm	mm	mm	kg	Terminal

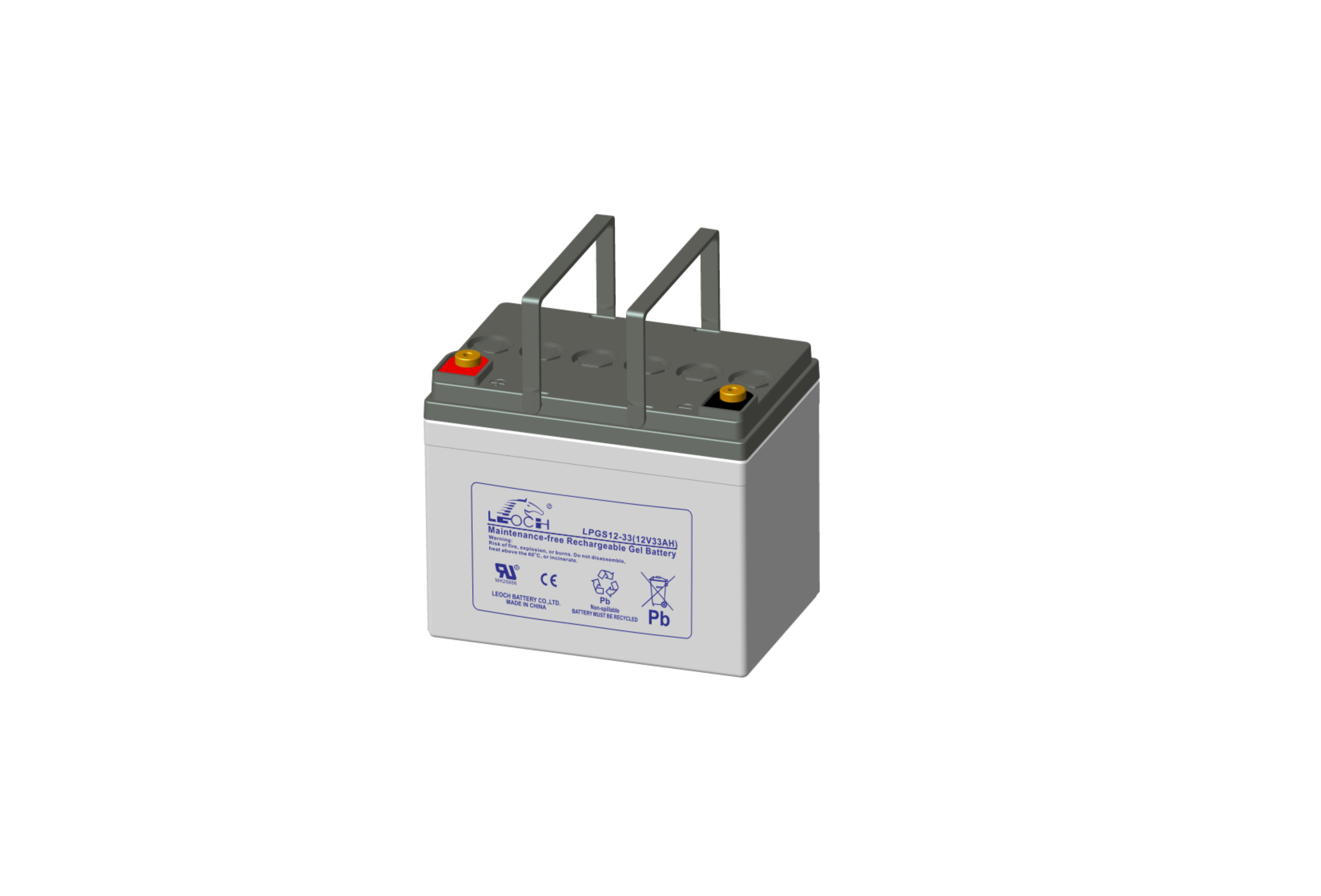

LPGS12-33	12	33		195	130	164	167	10.5	T6-I(M6)
LPGS12-38	12		38	197	165	170	170	12.8	T6(M6)
LPGS12-65	12		65	325	167	174	174	21.05	T6(M6)
LPGS12-75	12		75	260	168	208	214	22.5	T6(M6)
LPGS12-80	12		80	260	168	208	214	24	T6(M6)
LPGS12-90	12		90	306	168	208	214	27	T6(M6)

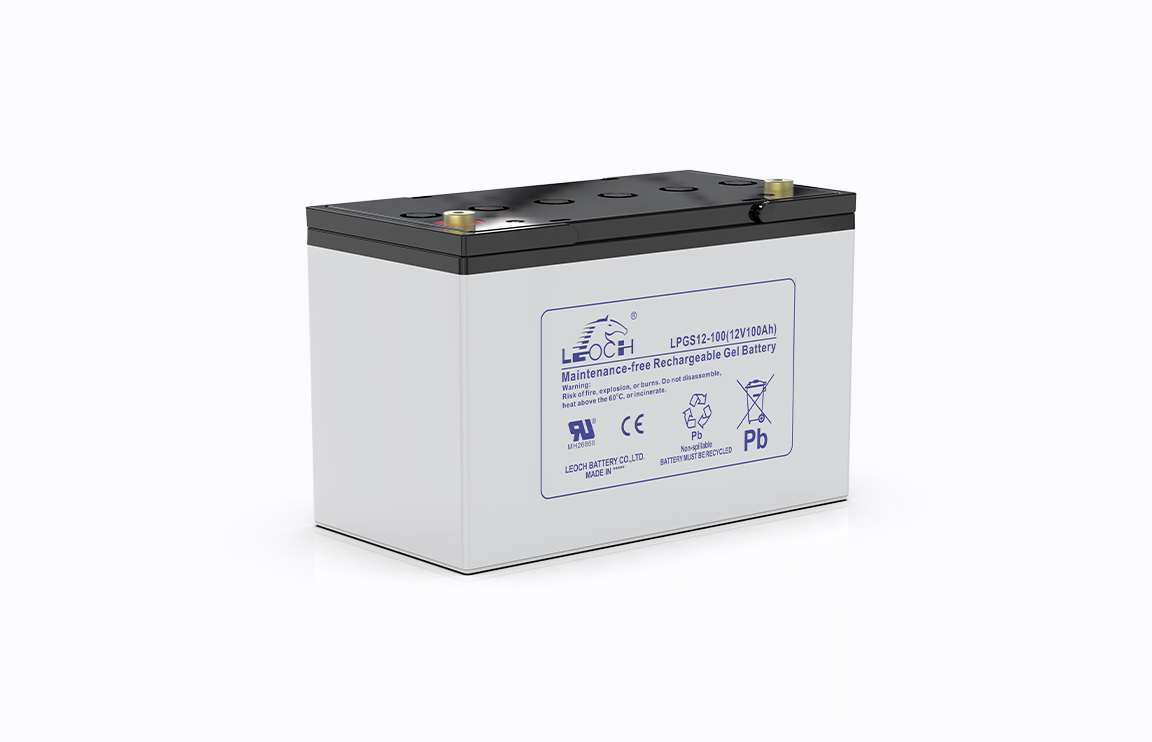

LPGS12-100	12		100	330	173	212	218	30.8	T11(M8)
LPGS12-120	12		120	408	177	225	225	34.78	T11(M8)
LPGS12-140	12		140	483	170	238.5	238.5	41.8	T11(M8)
LPGS12-150	12		150	483	170	238.5	238.5	43.6	T11(M8)
LPGS12-180	12		180	532	207	214	220	54	T11(M8)
LPGS12-200	12		200	522	240	218	224	60.3	T11(M8)
LPGS12-250	12		250	522	268	220	226	73.1	T11(M8)

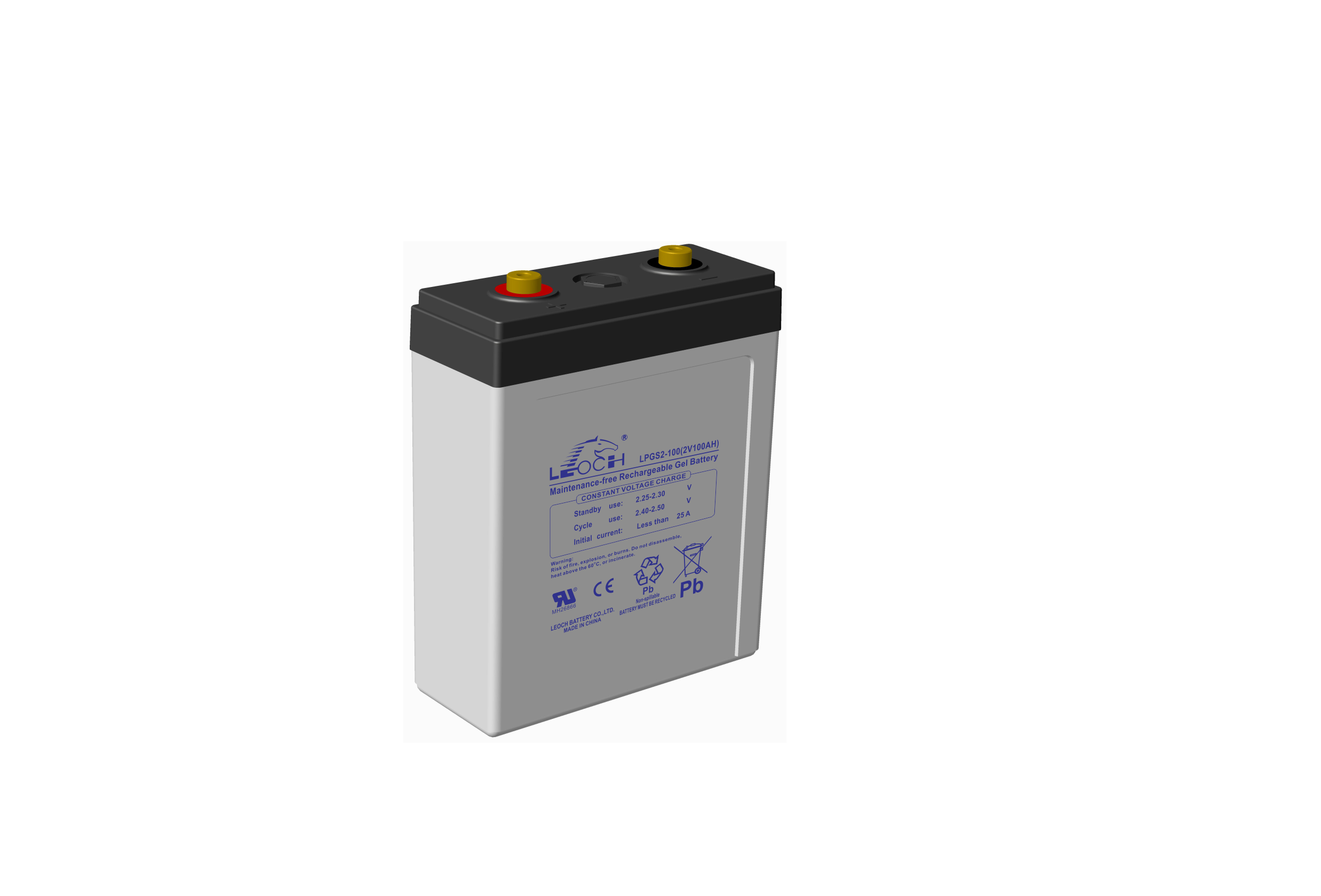

LPGS2-200	2		200	170	110	328	337	13.6	T11(M8)
LPGS2-300	2		300	170	150	328	337	18.9	T11(M8)
LPGS2-400	2		400	210	175	330	339	25.7	T11(M8)
LPGS2-500	2		500	240	175	330	339	30.2	T11(M8)
LPGS2-600	2		600	300	175	330	340	37.2	T11(M8)
LPGS2-800	2		800	410	175	330	340	50.7	T11(M8)

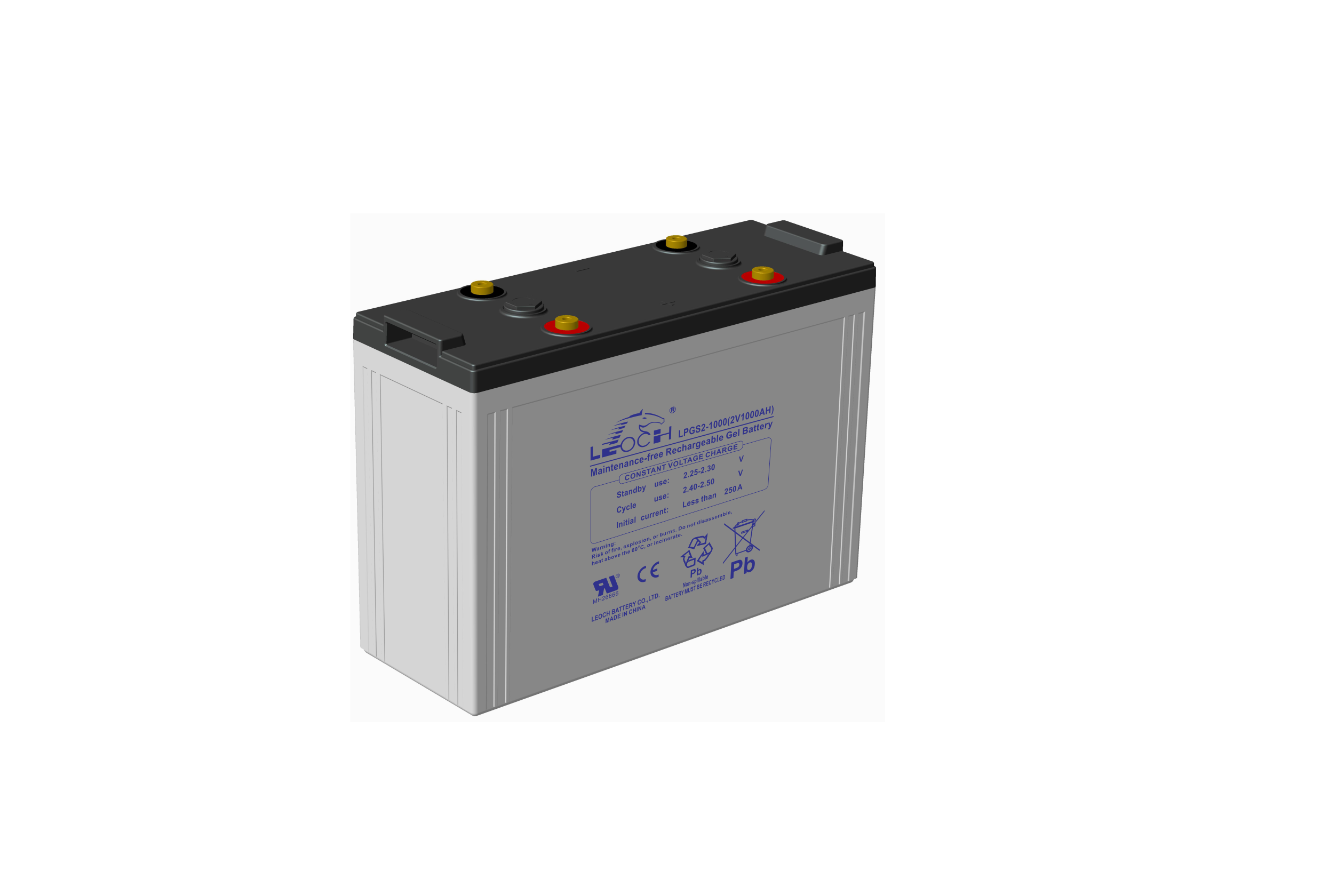

LPFGS12-100	12		100	508	110	238.5	238.5	32.2	T13(M6)
LPFGS12-100L	12		100	545	110	232.5	232.5	34.2	T6(M6)
LPFGS12-150	12		150	551	110	288	288	47.0	T6(M6)
LPFGS12-180	12	180	170	550	125	281.5	281.5	51.4	T8(M6)

Model	Rated Voltage	20Hr	10Hr	Length	Width	Height	TH	Weight	Terminal
	Rated Voltage	20Hr	10Hr	Length	Width	Height	TH	Weight
	V	1.80V/cell	1.80V/cell	mm	mm	mm	mm	kg
	V	1.80V/cell	1.80V/cell	mm	mm	mm	mm	kg
LPFG12-50HS	12		50	390	105	200	200	18.5	T6(M6)
LPFG12-100HS	12		100	394	110	286	286	31.7	T6(M6)
LPFG12-150HS	12		150	551	110	288	288	46.4	T6(M6)
LPFG12-170HS	12		170	550	125	281.5	281.5	51.4	T8(M6)
LPFG12-190HS	12		190	560	126	320	320	60.5	T11(M8)

Parameter information subject to the contract, here for your reference only.

1. AGM separator, flat plate, top terminal series etc.

2. Adopted advantage AGM-GEL technology

3. Nano-meter fumed siica GEL

4. ABS material (UL94 V-0, optional)

5. Comply with PVRS 5A, IEC61427, Kds standards

6. Operation temperature:-20~60°C

7. 12 years design life

8. ≥500 Cycles @ 80%DOD

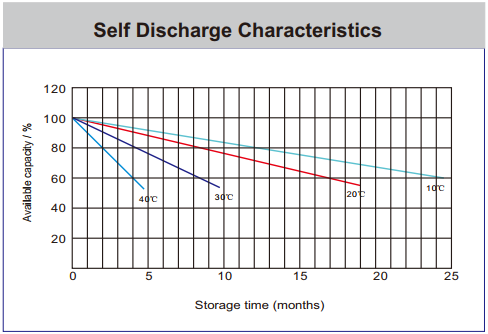

9. ≤2% Self discharge

10. ≥A+B CYCLES @PSoC

11. Fast recharge

1. Wind & solar & renewable energy

2. Street lamp & CATV & oil and gas

3. Poor grid reliability back-up applications

4. Hybrid telecom remote base stations

5. All extreme environment off-grid applications

6. They are compliant with both AGM and Gel applications

7. UPS
