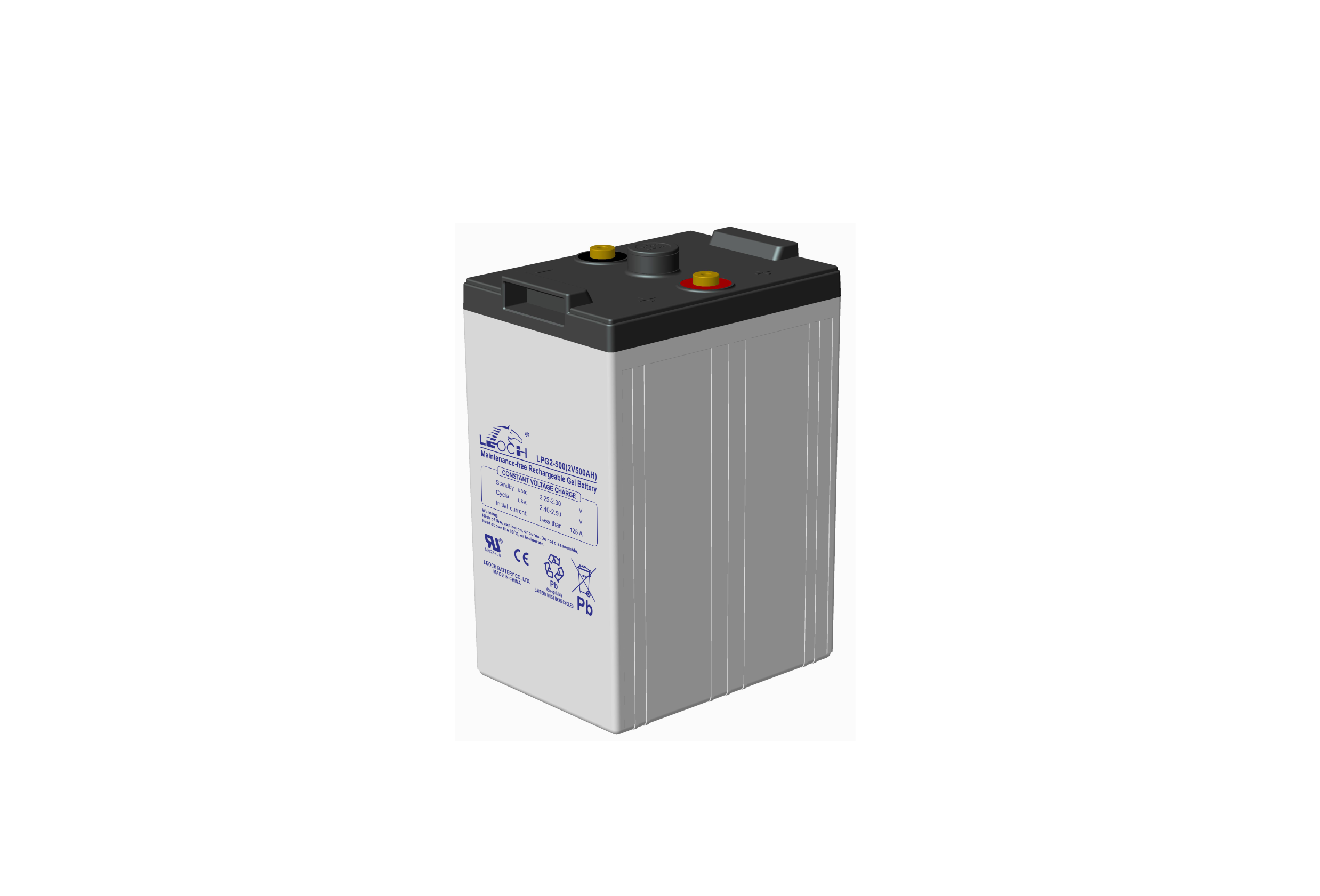

LPG Series

LPG Series

LPG battery contains gel electrolyte primarily produced by the homogeneous distributed SiO in a diluted sulfuric acid named gel 2SOL with thixotropic properties. The special designed vent valves are also used to control the gassing and water losing rate. Since no maintenance is required and valve regulated, they are classified as one type of VRLA batteries (The other type is VRLA-AGM batteries).

Contact US

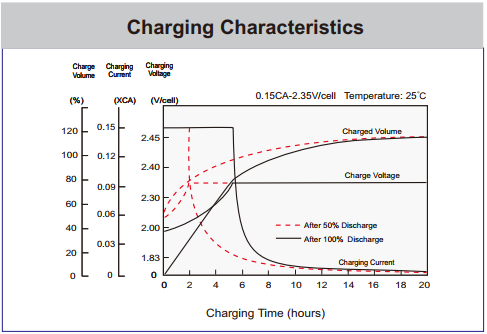

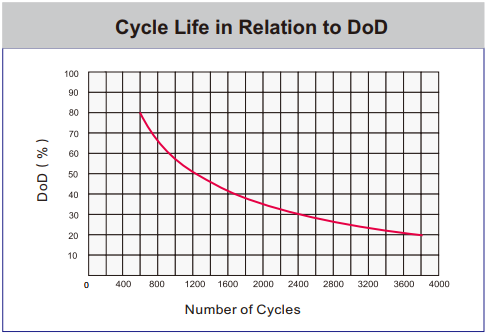

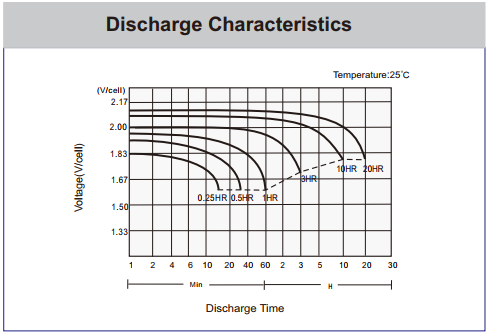

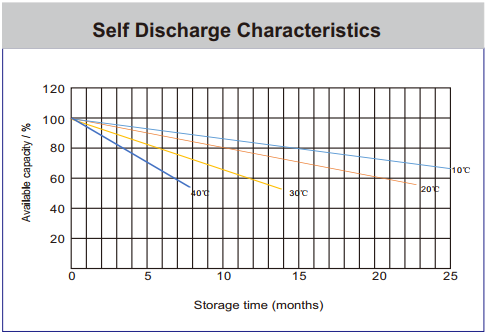

Specification Features Application Curves
ModelRated  Voltage20Hr10HrLengthWidthHeightTHWeightTerminal
V1.80V/cell1.80V/cellmmmmmmmmkg

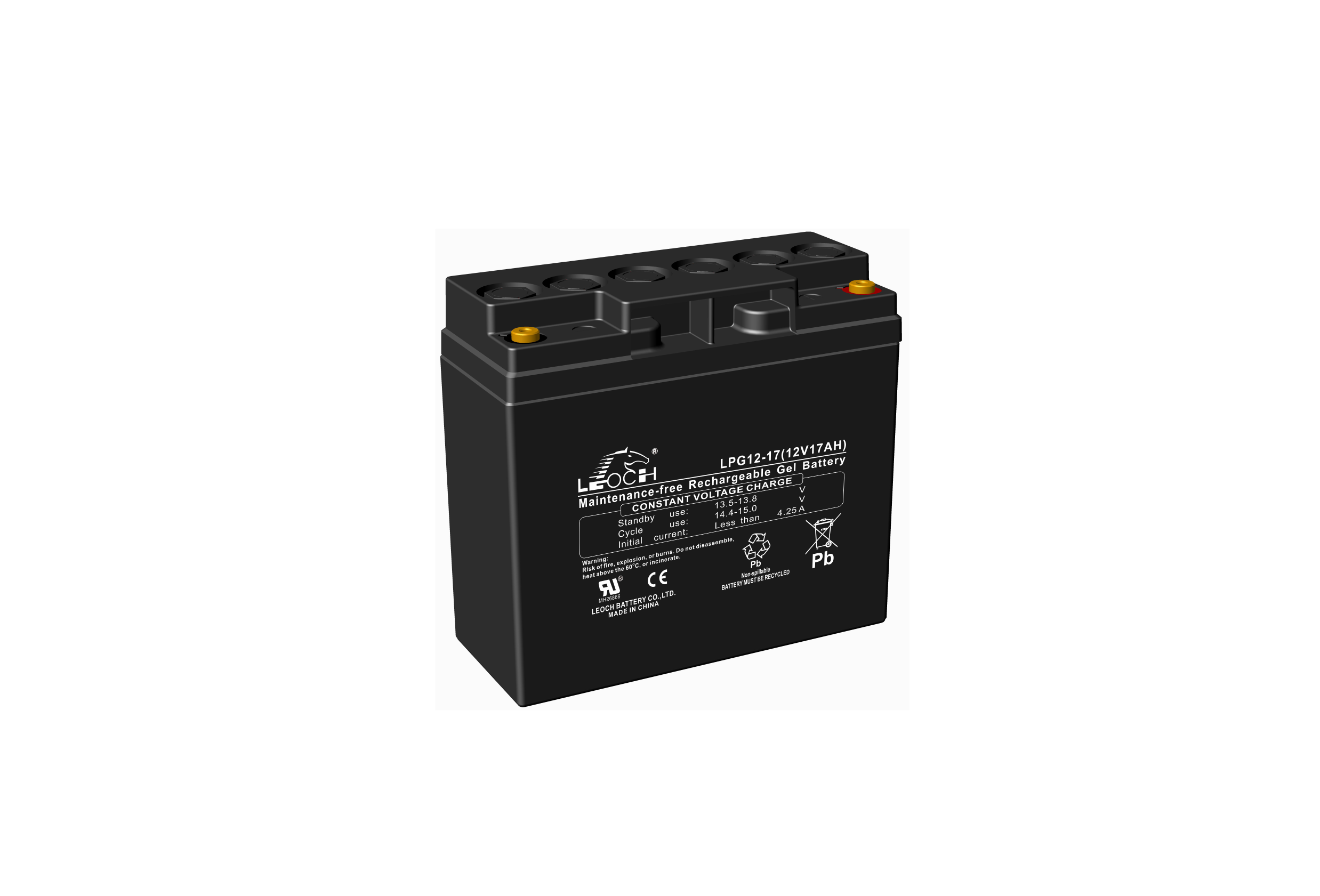

LPG12-171217
181.576.5167.5167.55.8T12(M5)
LPG12-241224
1661751251258.5T12(M5)
LPG12-311230
19513016417810.2T5
LPG12-381238
19716517017012.8T6(M6)
LPG12-451245
25713220020015.5T6(M6)
LPG12-501250
22913820521116.1T6(M6)
LPG12-601260
255170174.5177.518.5T6(M6)
LPG12-651265
32516717417420.5T6(M6)
LPG12-70H1270
26016820821422.9T6(M6)
LPG12-851285
30616820821427.5T6(M6)

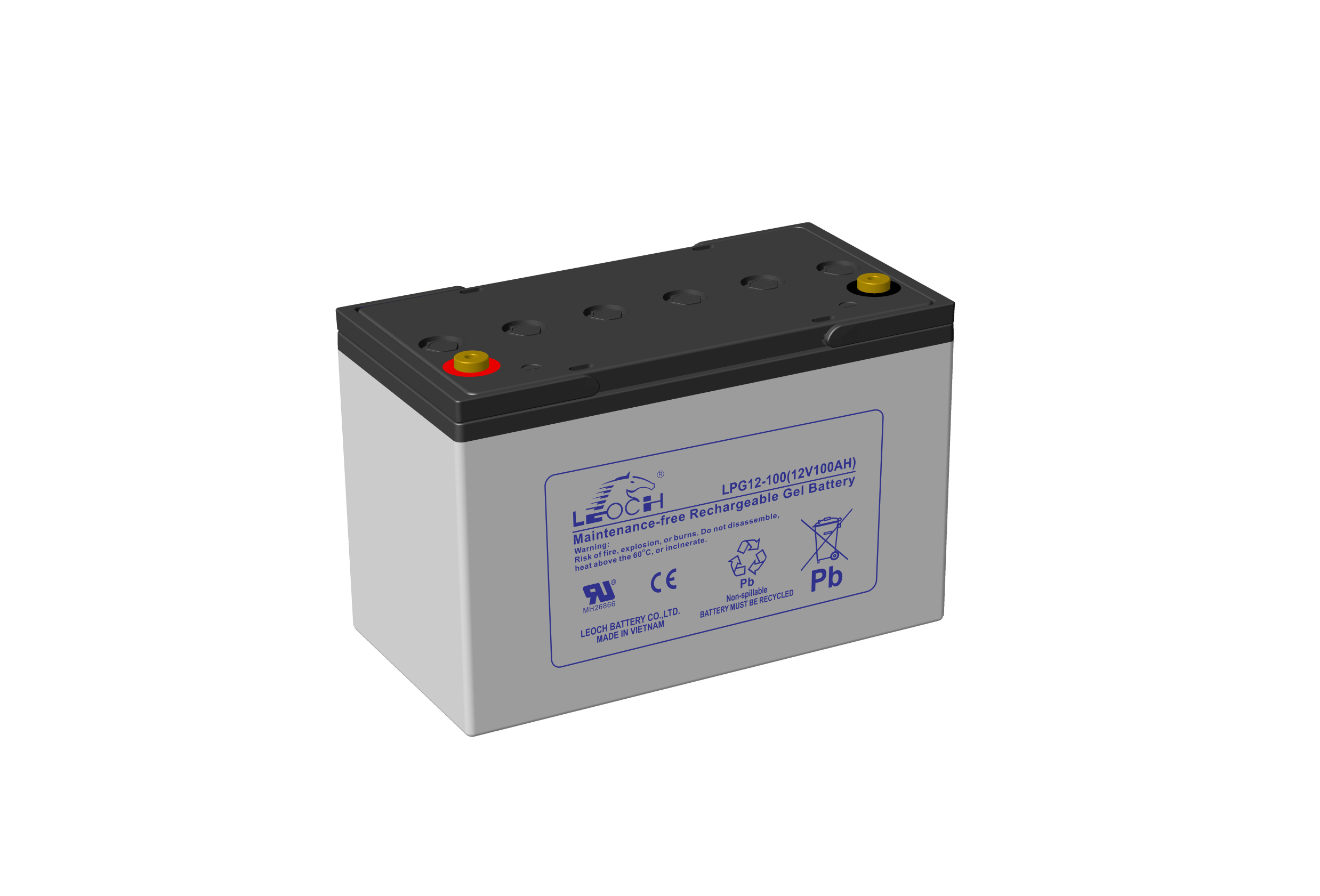

LPG12-10012100
33017321221831.2T11(M8)
LPG12-11012110
40817722522534.5T11(M8)
LPG12-12512125
34517227428040T11(M8)
LPG12-14012140
483170238.5238.543.8T11(M8)
LPG12-16012160
52224021822457.5T11(M8)
LPG12-20012200
52224021822462.3T11(M8)
LPG12-24012240
52226822022673.3T11(M8)
LPG2-1002
100170722052146T6(M6)
LPG2-2002
20017011032833714.1T11(M8)
LPG2-3002
30017015033033919.5T11(M8)
LPG2-4002
40021017533033927T11(M8)

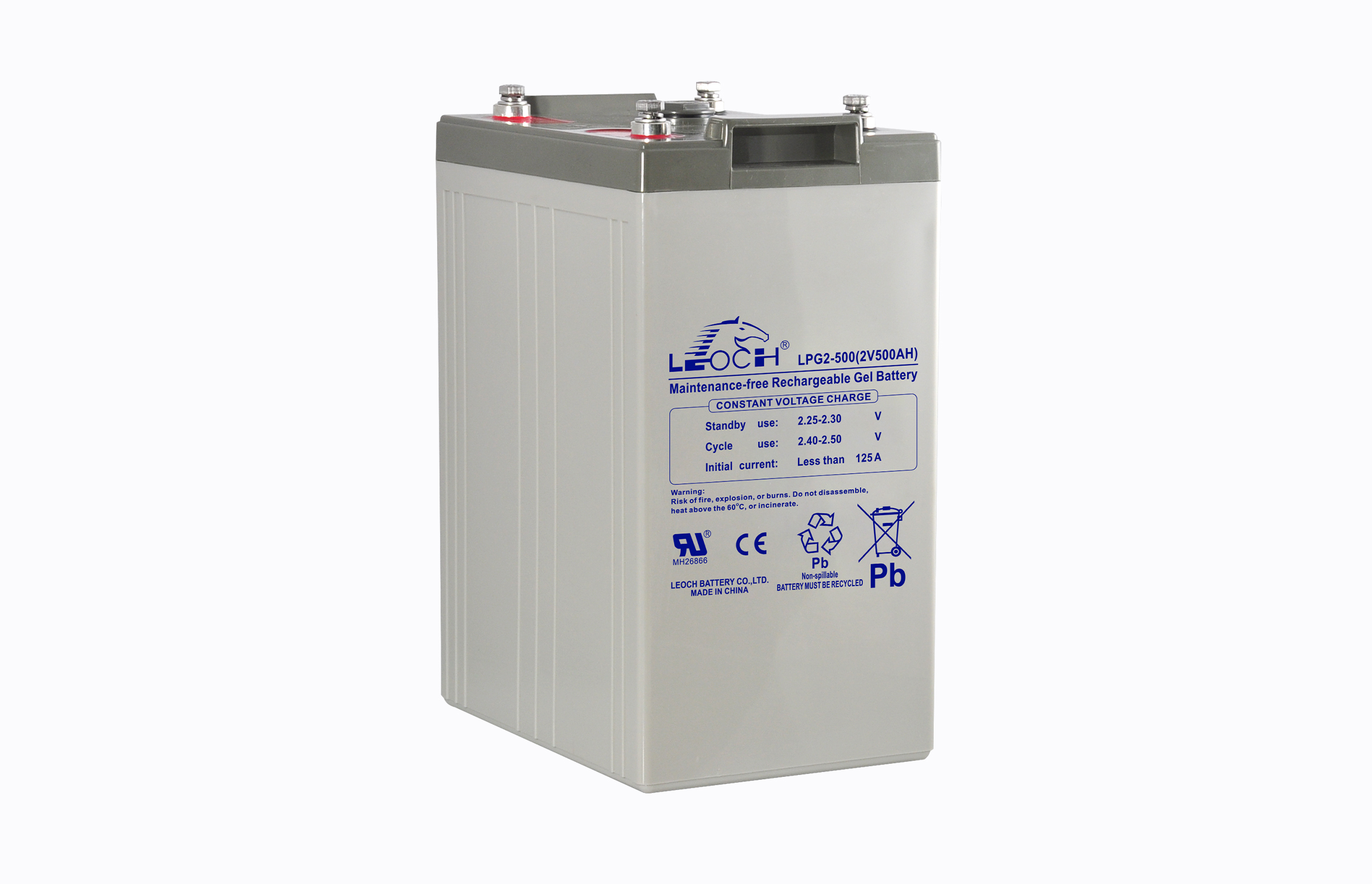

LPG2-5002
500240175327.533831.8T11(M8)
LPG2-6002
60030017533034040.0T11(M8)
LPG2-8002
80041017533034054.0T11(M8)
LPG2-10002
100047517532832864.1T11(M8)
LPG2-15002
1500403354339349102
T11(M8)
LPG2-20002
2000490350339349130.0T11(M8)
LPG2-30002
3000709350337347190T11(M8)


Parameter information subject to the contract, here for your reference only.


1. The maximum design life up to 16 years

2. Long time discharge

3. Suitable for space and storage electric power use

4. Special plate design, long cycle lifetime

5. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime

6. Using special separator to boost up the battery performance inside

7. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment

8. High gas recombined reaction efficiency

9. Little water losing, no electrolyte stratification phenomenon

10. Long storage time

11. Good deep discharge resilience performance

12. Using gas silicon dioxide, small granule degree, bigger than surface area


Terminal

  • 1. Telecommunication backup
  • 2. Power plants
  • 3. Burglar alarms
  • 4. Medical equipments (stationary and portable i.e. X- ray)
  • 5. Computer back-up (high power)
  • 6. Communication systems
  • 7. Fire alarm systems
  • 8. Transmitter systems
  • 9. Cash register systems
  • 10. Emergency lights signal systems
