LPC Series
Cycle Application
Contact USModel | Weight (kg) | Rated Voltage(V) | 20h 1.75V/cell | 10hr 1.80V/cell | L(mm) | W(mm) | H(mm) | TH(mm) | IR(mΩ) | Terminal | Short Current(A) |
LPC6-5.6 | 0.90 | 6 | 5.5 | 70 | 47 | 100 | 106 | 16 | T1/T2 | 154 | |
LPC6-13 | 1.90 | 6 | 14 | 151 | 50.5 | 94 | 100 | 10 | T1/T2 | 392 | |
LPC12-3.5 | 1.19 | 12 | 3.5 | 134 | 67 | 59.5 | 65.5 | 40 | T1 | 98 | |
LPC12-5.6 | 1.80 | 12 | 5.4 | 90 | 70 | 101 | 107 | 25 | T1/T2 | 151.2 | |
LPC12-8.0 | 2.50 | 12 | 8.0 | 151 | 65 | 93.5 | 99.5 | 20 | T2 | 224 | |
LPC12-12 | 3.43 | 12 | 12 | 151 | 98 | 95 | 101 | 16 | T1/T2 | 336 | |
LPC12-13 | 3.78 | 12 | 14 | 151 | 98 | 95 | 101 | 14 | T1/T2 | 392 | |
LPC12-18 | 5.65 | 12 | 20 | 181.5 | 76.5 | 167.5 | 167.5 | 16 | T3 | 560 | |
LPC12-20 | 6.00 | 12 | 20 | 181.5 | 76.5 | 167.5 | 167.5 | 14 | M5 | 560 | |
LPC12-24 | 8.57 | 12 | 26 | 166 | 175 | 126 | 126 | 12 | M5 | 728 | |
LPC12-24H | 9.10 | 12 | 28 | 164 | 125 | 176 | 176 | 14 | T3-A | 700 | |
LPC12-26 | 7.80 | 12 | 26 | 166 | 175 | 125 | 125 | 14 | T3 | 650 | |
LPC12-33 | 10.15 | 12 | 33 | 195 | 130 | 164 | 178 | 12 | T5 | 825 | |

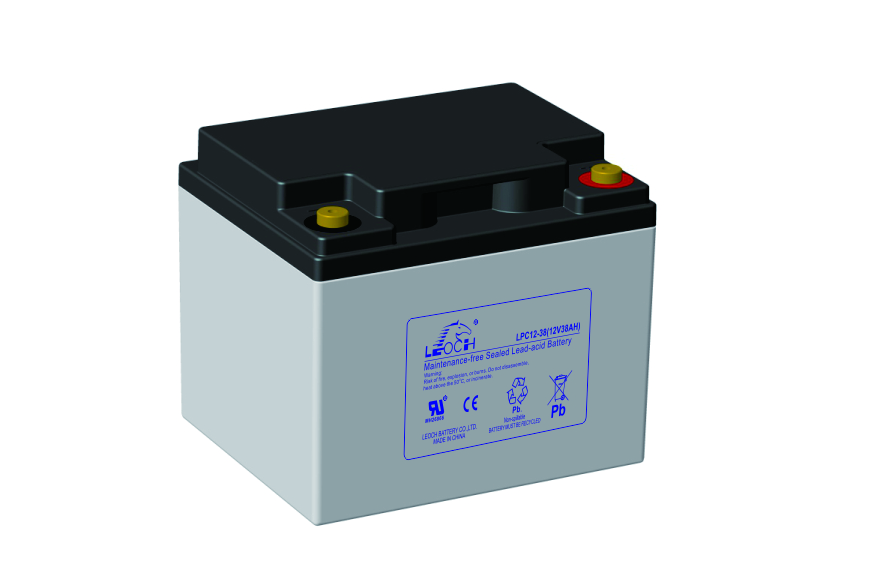

LPC12-38 | 12.00 | 12 | 38 | 197 | 165 | 170 | 170 | 10 | M6 | 950 | |
LPC12-42 | 14.60 | 12 | 42 | 197 | 165 | 170 | 170 | 9.0 | M6 | 1050 | |
LPC12-50 | 17.60 | 12 | 50 | 257 | 132 | 200 | 200 | 9.0 | M6 | 1250 | |
LPC12-55 | 16.20 | 12 | 55 | 229 | 138 | 205 | 211 | 9.0 | M6 | 1375 | |

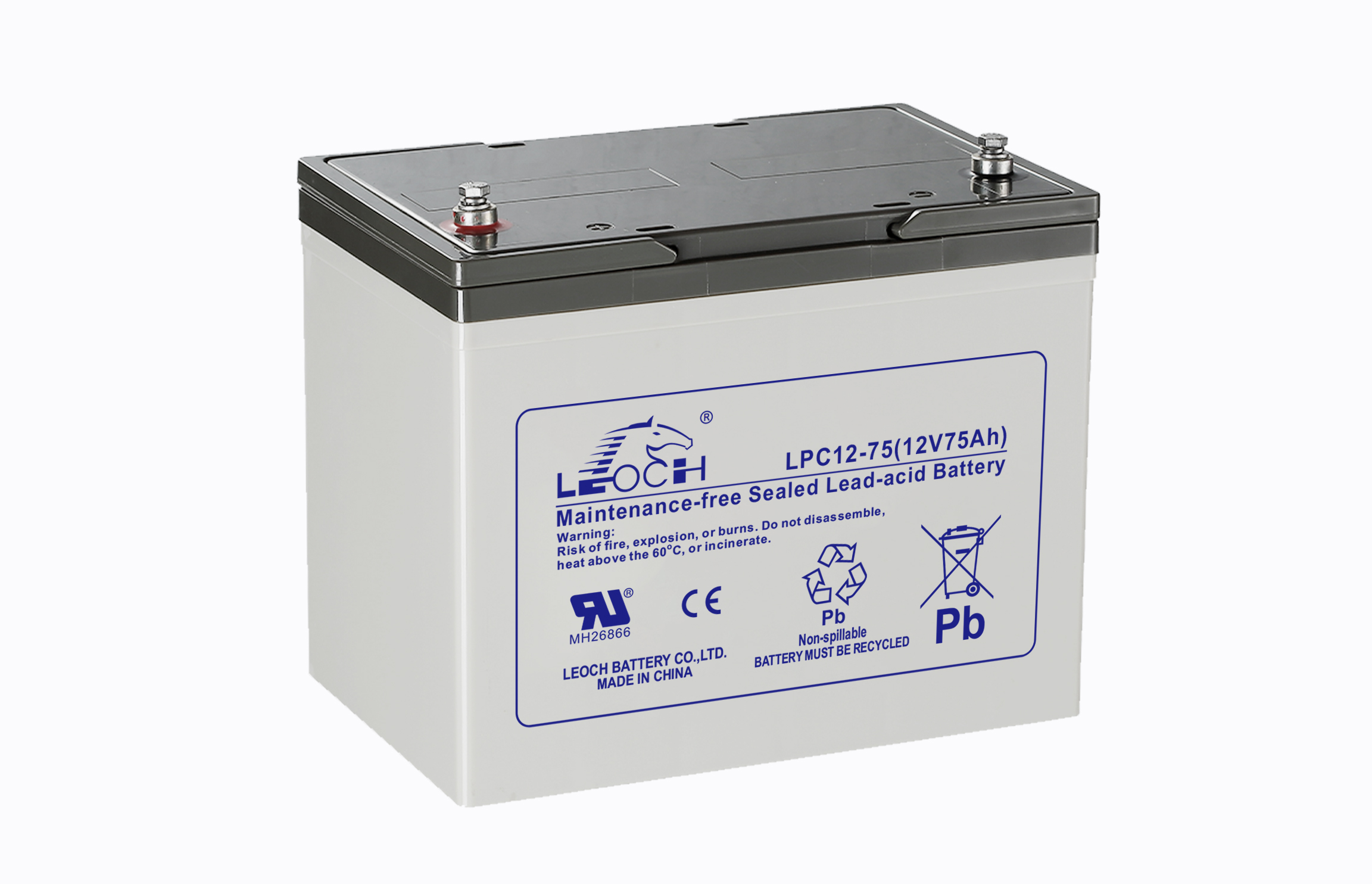

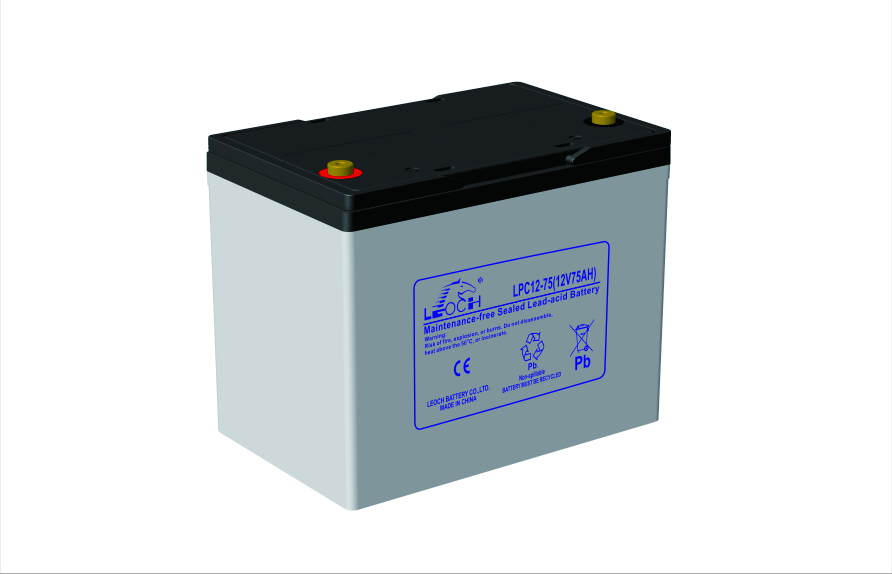

LPC12-75 | 22.30 | 12 | 75 | 260 | 168 | 208 | 214 | 6.6 | M6 | 1875 | |
LPC12-90 | 26.80 | 12 | 90 | 306 | 168 | 208 | 214 | 5.5 | M6 | 2070 | |
LPC12-100 | 30.60 | 12 | 100 | 330 | 173 | 212 | 220 | 4.9 | M8 | 2000 | |
LPC12-120 | 37.30 | 12 | 120 | 408 | 177 | 225 | 225 | 3.6 | M8 | 2400 | |

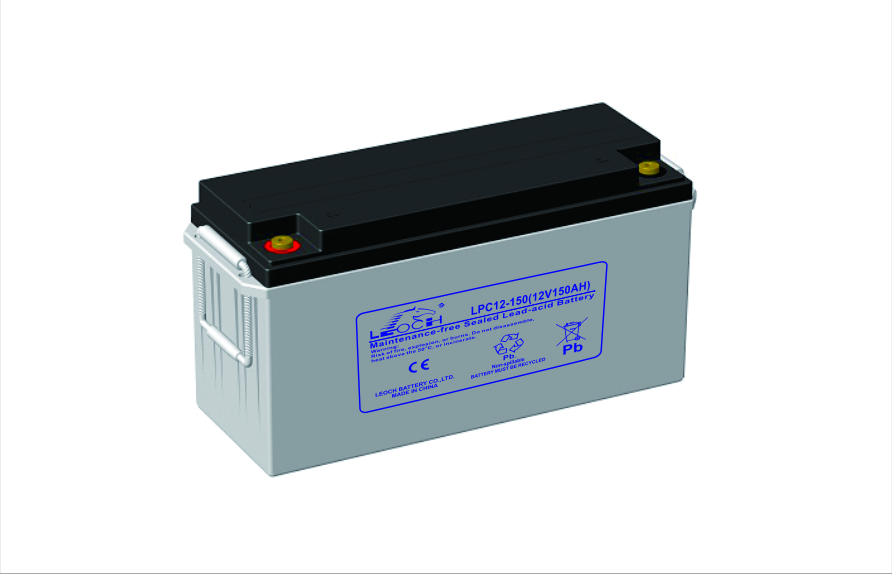

LPC12-150 | 43.20 | 12 | 150 | 483 | 170 | 238.5 | 238.5 | 3.5 | M8 | 3000 |
Parameter information subject to the contract, here for your reference only.
1. Good cyclic property. Enhanced overcharge endurance and overdischarge recovery property
2. Using oxygen recombination technology: maintenance-free
3. Lower acid density, excess of electrolyte and larger distance between plates to keep battery at low temperature and slow down plate grid corrosion speed
4. Unique plate group configuration, high quality AGM separator and battery management system ensure battery with a longer service life
1. Electric tools
2. Mobility Scooter
3. Golf trolleys
4. Portable lights and instruments
5. Electric toys
6. Portable power
7. Electric wheelchair
