LTC Series -By Electric Wheelchair

LTC series batteries have carbon nanotube patented technology for superior charge acceptance, low-temperature performance, and long cycle life. With a new alloy formula and nanoscale silicon technology, they enhance grid corrosion resistance, improved electrolyte utilization, reduced stratification, and extended overall cycle life. They are suitable for cycling and other applications in electric vehicles, including e-scooters, e-bikes, e-tricycles, electric equipment, electric wheelchairs, and small warehouse vehicles.

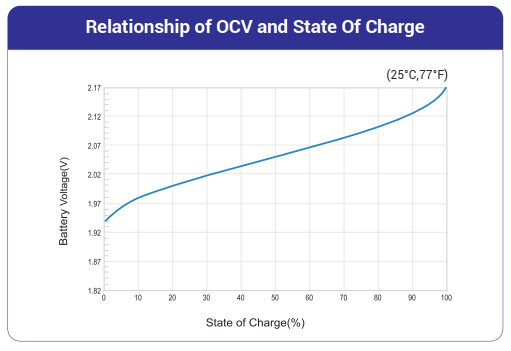

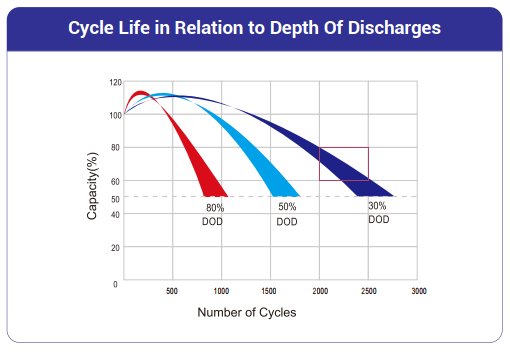

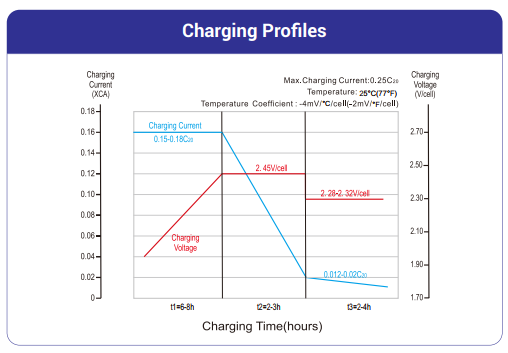

Specification Features Application Curves

Model	Rated Voltage	Rated Capacity(AH)			Dimension(mm)				Weight
Model	V	20hr	5hr	3hr	L	W	H	TH	kg

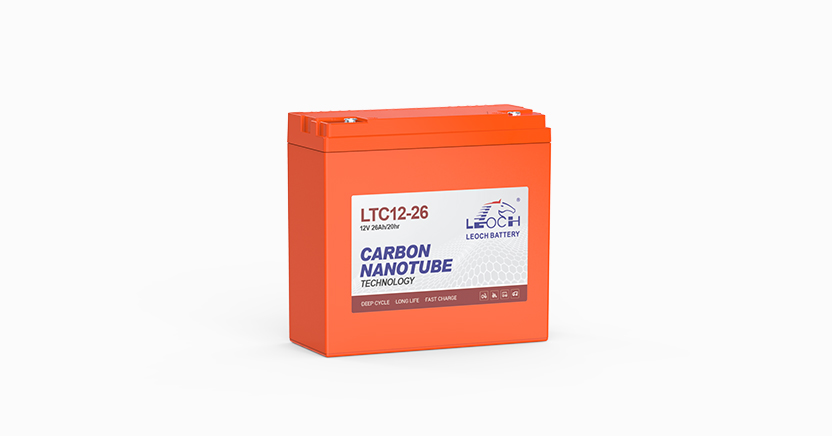

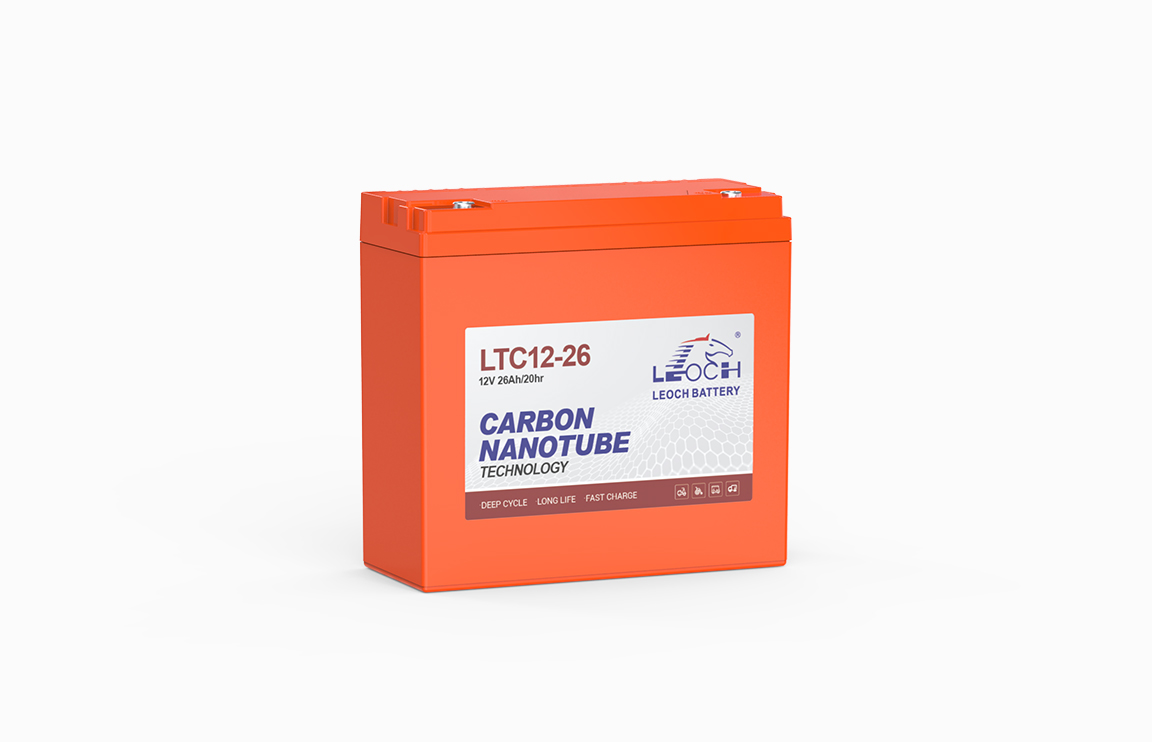

LTC12-26	12	26	24	23	181	76.5	171	171	6.9
LTC12-40	12	40	36	35	267.5	77.5	171	171	10.2
LTC12-54	12	54	48	46.5	223	123	175	175	13.6
LTC12-60	12	60	57	54	224	135.5	177.5	177.5	15.3

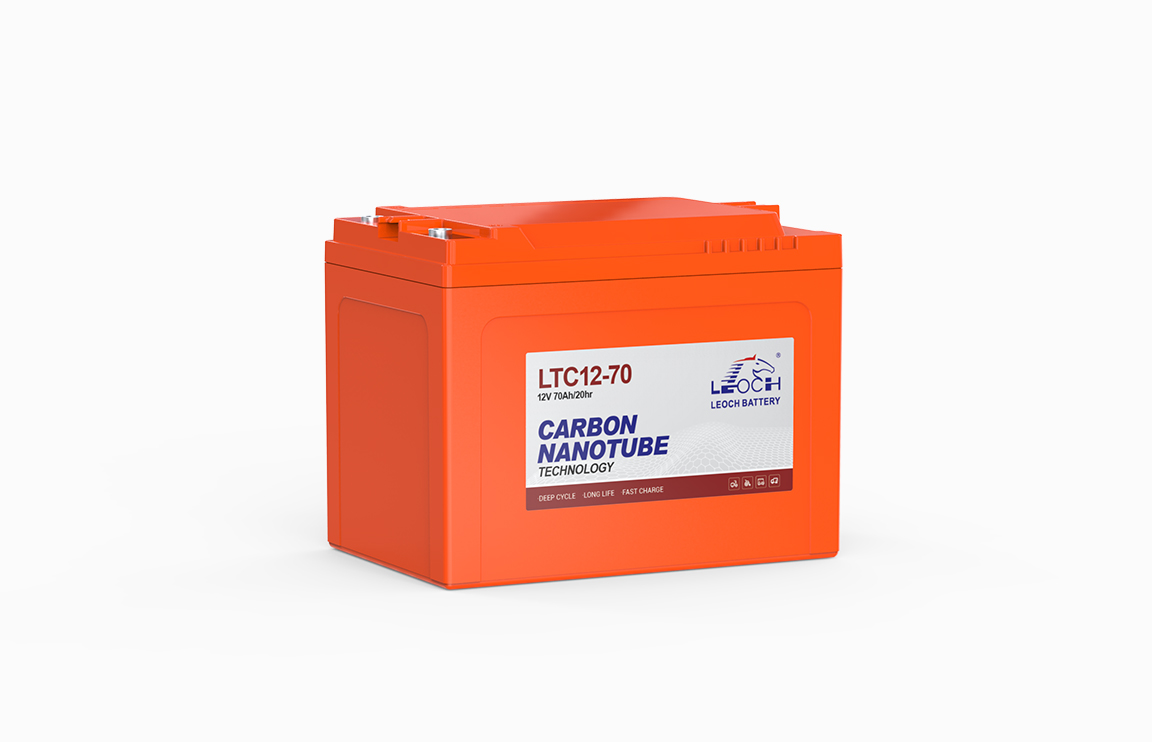

LTC12-70	12	70	61	59	224	150	177	177	16.9

Parameter information subject to the contract, here for your reference only.

1. The ally employs multiple new-type alloy, resuting in excellent corrosion resistance of the grid and significantly extendingits service life.

2. The positive uses a special composite binder and carbon material. This makes it stronger and high conductive, allowing forhigher discharge capacity and a longer cycle life.

3. The negative utlizes modified single-walled carbon nanotube sand a high-dispersion ball-milled composite. Thiscombination grants the battery a much better charge/discharge performance, low-temperature resistance and longer cycle life.

4. The 3D-structured composite separator prevents dendrite-induced short circuits and enables superior acid retention.

5. The electrolyte employs a nanoscale slicon-based technology. This enhances its utilization efficiency, suppressesstratification, and consequently extends the battery's cycle life.

1. Electric vehicle

2. Electric wheelchair

3. Sightseeing

4. Cleaning equipment,

5. E-bike

6. Mobility

7. Golf cart

8. AWP
