LDC battery is mainly used on various electric vehicles. It mainly includes electric bike, electric tricycles, electric bus, golf cart, tourist sightseeing vehicles, electric cleaning equipment, and they are widely used in the tourist scenic spots, hospitals, markets, industrial and mining enterprises, warehouses, docks and stations.
Contact US| Model | Rated Voltage | Rated Capacity(AH) | Dimension(mm) | Weight | ||||||
| V | 20hr | 10hr | 5hr | 3hr | L | W | H | TH | kg | |
| LDC12-13 | 12 | 13 | 12 | 11 | 10.6 | 152 | 99 | 97 | 99 | 3.65 |
| LDC12-15 | 12 | 15 | 14.4 | 13.5 | 13 | 151.5 | 99.5 | 98 | 98.2 | 3.95 |

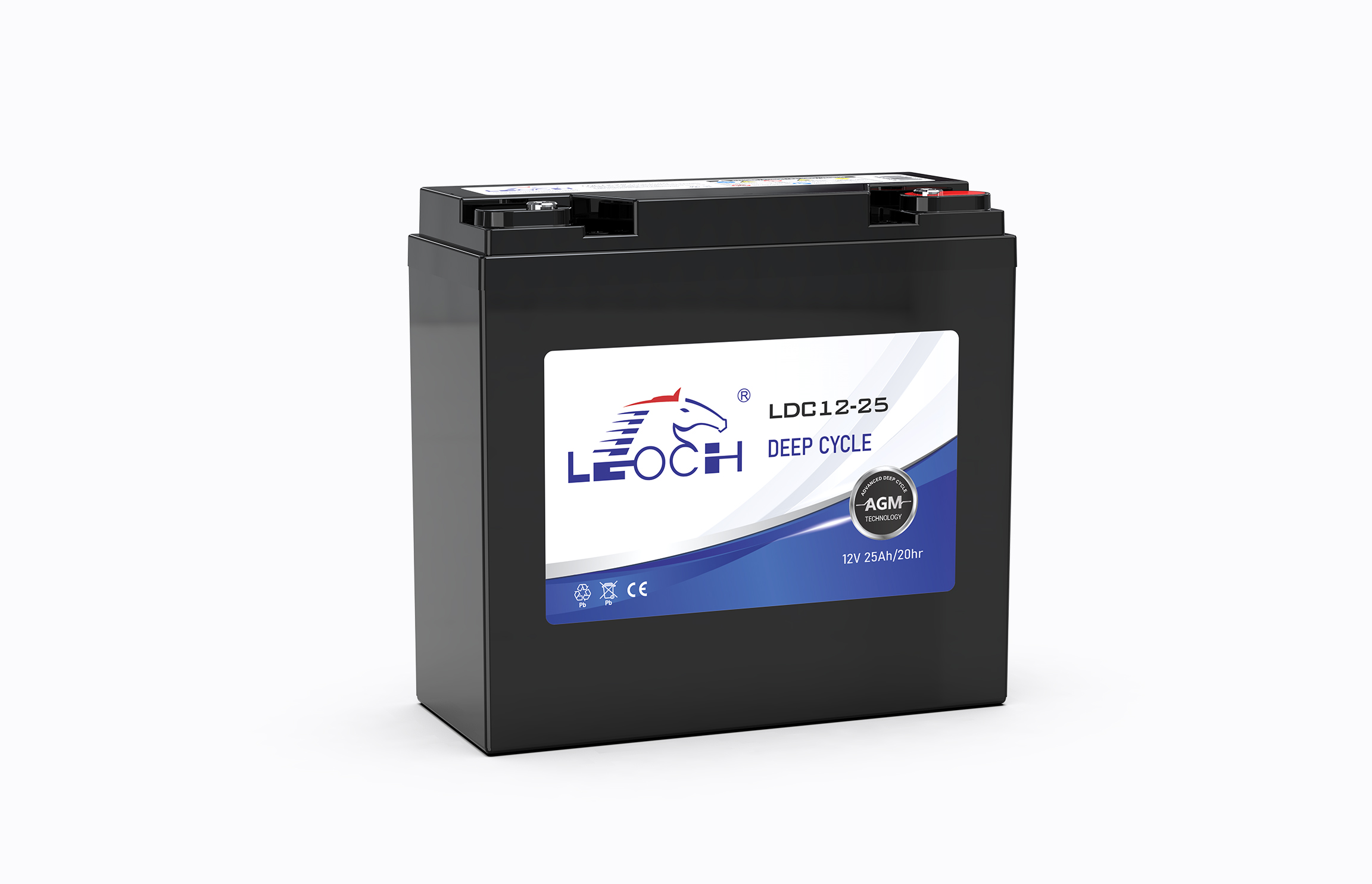

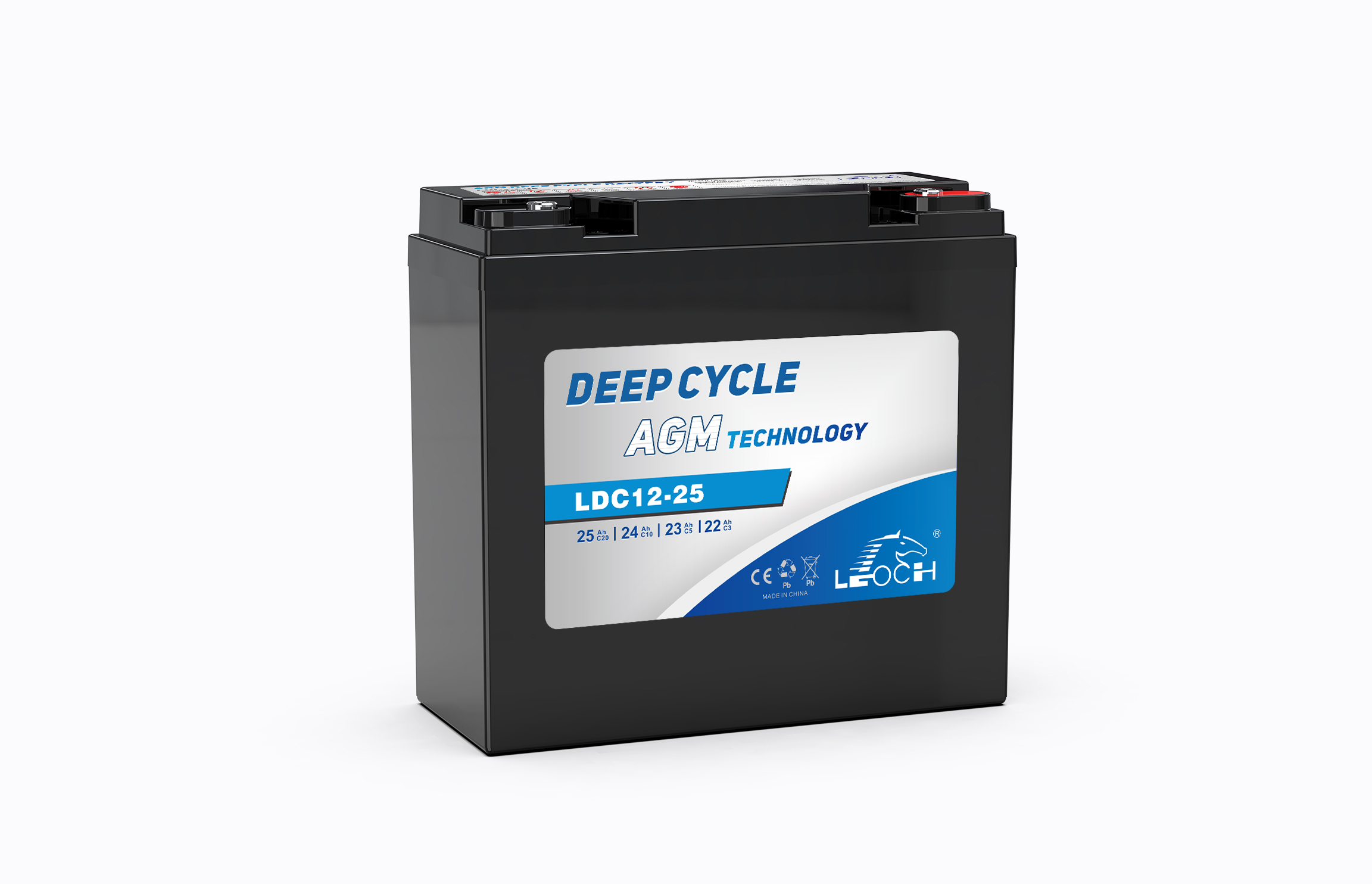

| LDC12-25 | 12 | 25 | 24 | 22.6 | 21.7 | 181.4 | 77 | 170 | 170 | 6.4 |
| LDC12-26 | 12 | 26 | 25 | 24 | 23 | 181 | 76.5 | 171 | 171 | 6.85 |
| LDC12-39 | 12 | 39 | 37 | 35 | 33 | 195 | 130 | 164 | 167 | 11.3 |
| LDC12-43 | 12 | 43 | 37 | 34 | 32 | 267.5 | 77.5 | 171 | 171 | 10.1 |
| LDC12-44 | 12 | 44 | 40 | 36 | 34 | 197 | 166 | 170 | 170 | 13.4 |
| LDC12-53 | 12 | 53 | 46 | 44 | 40 | 197 | 166 | 170 | 170 | 14.2 |
| LDC12-55 | 12 | 55 | 50 | 48 | 45 | 223 | 123 | 175 | 175 | 13.4 |
| LDC12-63 | 12 | 63 | 57 | 54 | 50 | 224 | 135.5 | 177.5 | 177.5 | 15.15 |
| LDC12-68 | 12 | 68 | 60 | 57 | 53 | 229 | 138 | 210 | 216.5 | 17.5 |
| LDC12-76 | 12 | 76 | 70 | 65 | 60 | 260 | 168 | 173 | 176 | 20.0 |
| LDC12-90C | 12 | 90 | 85 | 77 | 72 | 260 | 168 | 208 | 214 | 23.3 |
| LDC12-100 | 12 | 100 | 92 | 89 | 80 | 260 | 168 | 211 | 214 | 25.8 |

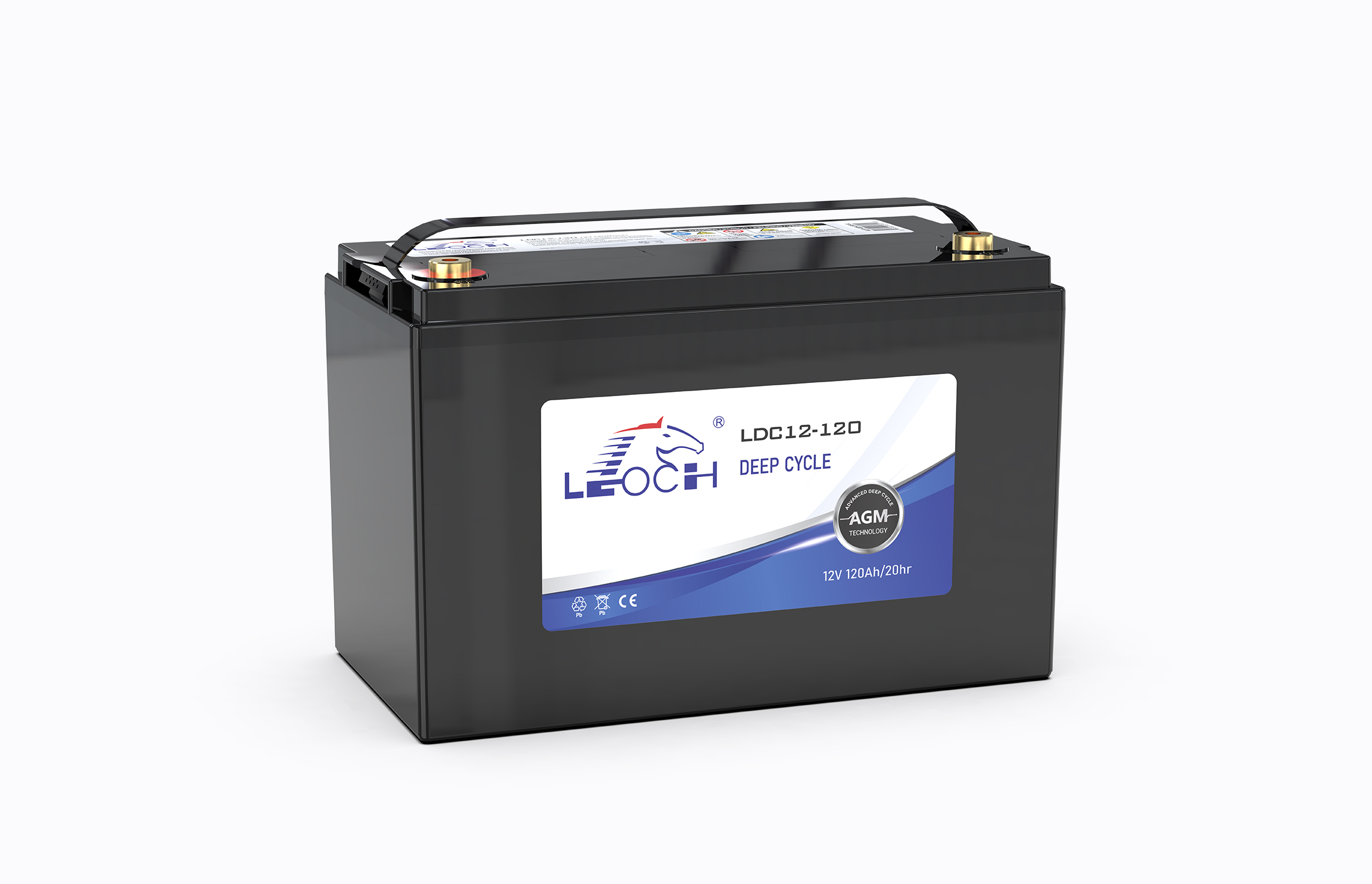

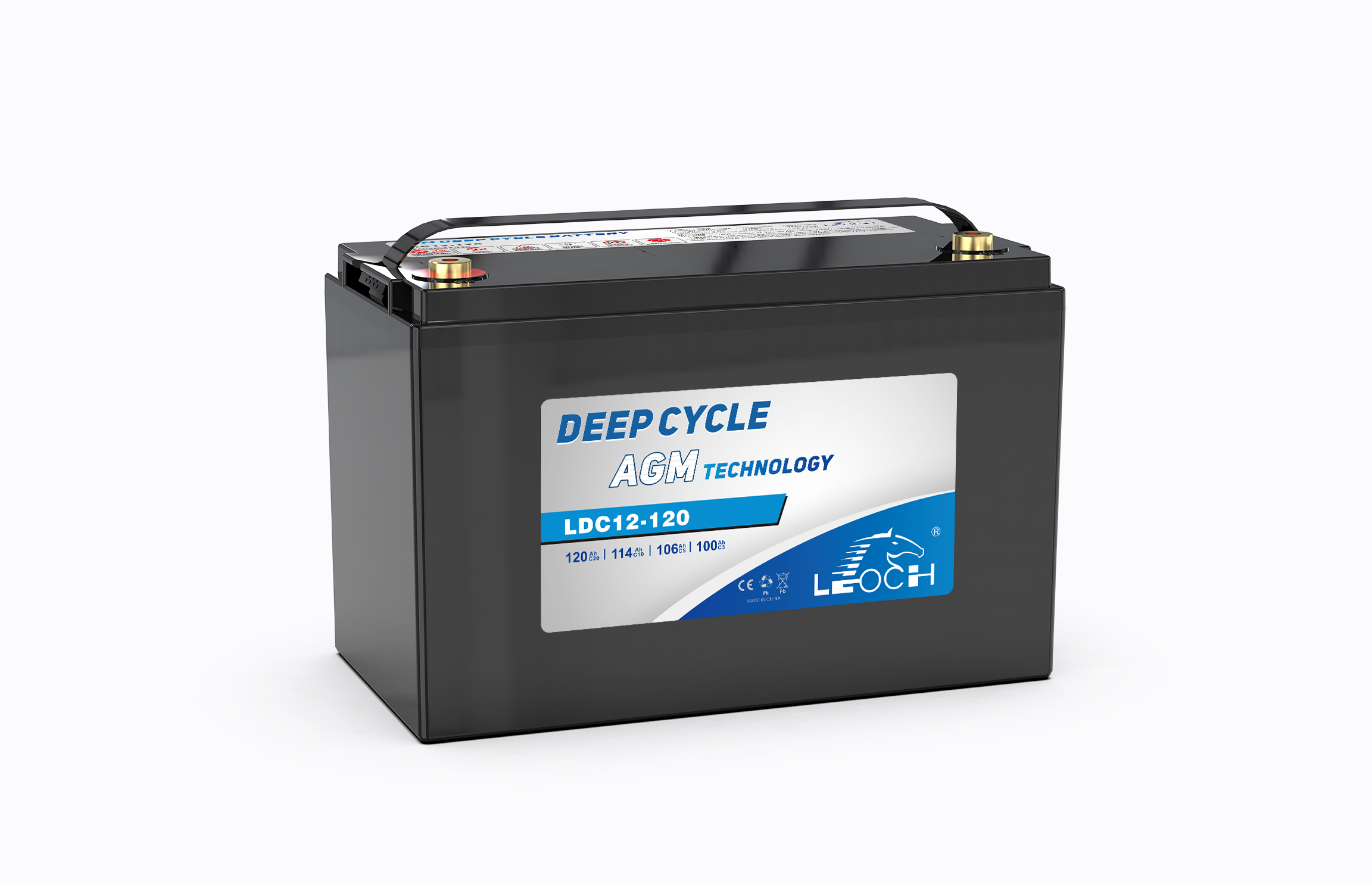

| LDC12-120 | 12 | 120 | 114 | 106 | 100 | 330 | 173 | 213 | 220 | 32.8 |
Parameter information subject to the contract, here for your reference only.
1.True deep cycle AGM-GEL technology-GREEN SOLUTION
2 .Over 99.99% virgin lead for grid plate
3. Carbon active material
4. Electrolyte + Gel for longer cycle life
5. Heavy duty grid/paste design for deep cycle application
6. Maintenance free, non-spillable, valve-regulated
7. Double separator configuration :long cycle life &High energy density and super anti-vibration design
8. Low self-discharge for longer shelf lifetification

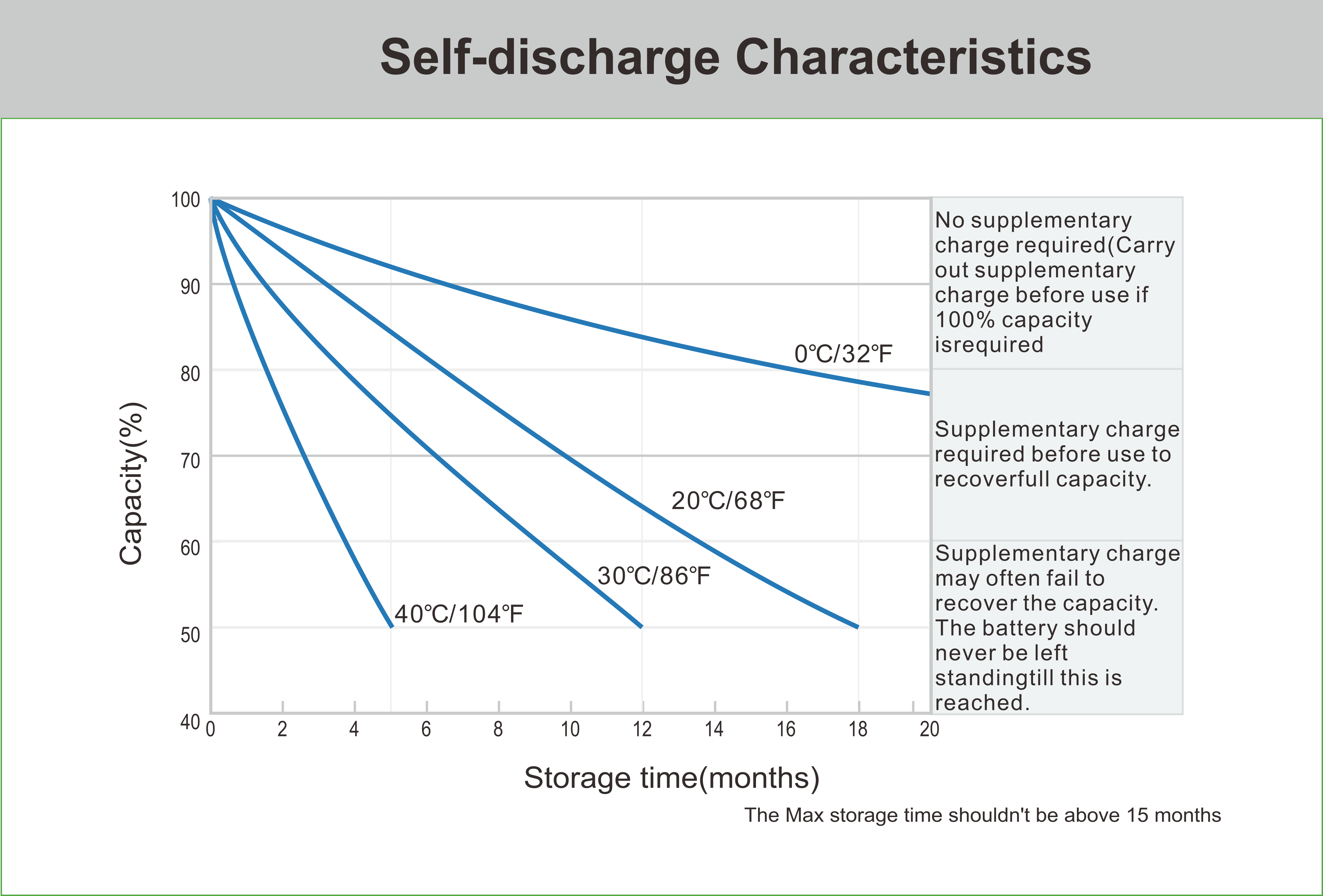

1. Electric bicycle
2. Electric tricycles
3. Electric bus
4. Golf cart
5. Tourist sightseeing vehicles
6. Electric cleaning equipment
7. AWP
8. Electric scooter
9. Lawn-mower
10. Electric toys
11. Elecctric wheelchair
