Flooded EN Series(MF)

LEOCH flooded maintenance-free automotive battery has very good starting ability at low temperature, super long shelf life and maintenance free under normal situation. These batteries feature lower electrolyte consumption and good vibration resistance. They are suitable forstarting, lighting, and other applications in automobiles, tractors, mining trucks, and construction engineering vehicles.

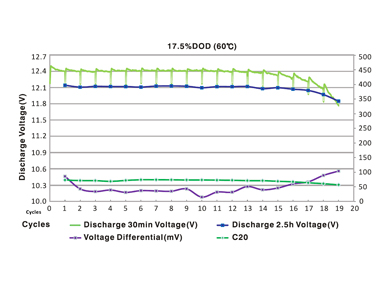

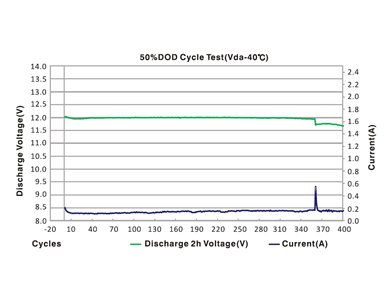

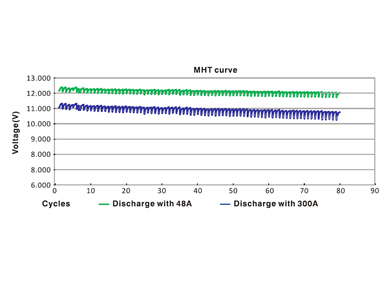

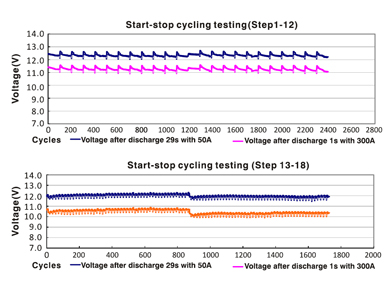

Specification Features Application Curves

Series	Model	magic eye	Rated Voltage	20hr@ 1.75V/cell	RC	CCA (-18°C)	Length	Width	Height	Weight	Cell layout	Terminal	Hold Down	Handle
Series	Model	magic eye	V	20hr@ 1.75V/cell	min	A	mm	mm	mm	kg	Cell layout	Terminal	Hold Down	Handle
L0	53511	×	12	35	52	300	175	175	190	10.0	0	1	B13	无
L0	54011	√	12	40	61	350	175	175	190	10.6	0	1	B13	无
L0	54011	×	12	40	61	350	175	175	190	10.6	0	1	B13	无
L1	54459	×	12	44	68	410	207	175	190	12.2	0	1	B13	TS2
L1	54459	√	12	44	68	410	207	175	190	12.2	0	1	B13	TS2
L1	55025	√	12	49	77	450	207	175	190	12.8	0	1	B13	TS2
L1	55025	×	12	49	77	450	207	175	190	12.8	0	1	B13	TS2
L1	55026	√	12	49	77	450	207	175	190	12.8	1	1	B13	TS2
L2	54049	√	12	40	61	330	242	175	190	12.9	0	1	B13	TS2
L2	54554	√	12	45	70	350	242	175	190	13.5	0	1	B13	TS2
L2	54550	√	12	45	70	350	242	175	190	13.5	1	1	B13	TS2
L2	55532	√	12	50	79	450	242	175	190	14.0	0	1	B13	TS2
L2	55030	√	12	50	79	450	242	175	190	14	1	1	B13	TS2
L2	55530/55559/55573	√	12	55	88	500	242	175	190	14.5	0	1	B13	TS2
L2	55565	√	12	55	88	500	242	175	190	14.6	1	1	B13	TS2
L2	55530/55559/55573	×	12	55	88	500	242	175	190	14.6	0	1	B13	TS2
L2	55565	×	12	55	88	500	242	175	190	14.6	1	1	B13	TS2
L2	56219	√	12	60	98	550	242	175	190	15.1	0	1	B13	TS2
L2	56219	×	12	60	98	550	242	175	190	15.1	0	1	B13	TS2
L2	56221	√	12	60	98	550	242	175	190	15.1	1	1	B13	TS2
L2	56221	×	12	60	98	550	242	175	190	15.1	1	1	B13	TS2
L3	55453	√	12	54	87	470	278	175	190	15.5	0	1	B13	TS6
L3	55455	√	12	54	87	470	278	175	190	15.5	1	1	B13	TS6
L3	56645	√	12	66	110	560	278	175	190	16.6	0	1	B13	TS6
L3	56646	×	12	66	110	560	278	175	190	16.6	1	1	B13	TS6
L3	57220	√	12	72	122	620	278	175	190	17.2	0	1	B13	TS6
L3	57220	×	12	72	122	620	278	175	190	17.2	0	1	B13	TS6
L3	57219	√	12	72	122	620	278	175	190	17.2	1	1	B13	TS6
L3	57219	×	12	72	122	620	278	175	190	17.2	1	1	B13	TS6
L3	57545	√	12	75	128	640	278	175	190	17.7	0	1	B13	TS6
L3	57545	×	12	75	128	640	278	175	190	17.7	0	1	B13	TS6
L3	57546	√	12	75	128	640	278	175	190	17.7	1	1	B13	TS6
L4	56518	√	12	65	108	500	314	174	190	18.0	0	1	B13	TS6
L4	57547	√	12	75	128	600	314	174	190	19.1	0	1	B13	TS6
L4	58043	√	12	80	138	650	314	174	190	19.7	0	1	B13	TS6
L4	58043	×	12	80	138	650	314	174	190	19.7	0	1	B13	TS6
L4	58521	√	12	85	148	820	314	174	190	21.9	1	1	B13	TS6
L5	57019	√	12	70	118	520	351	174	188	19.9	0	1	B13	TS6
L5	57528	√	12	75	128	560	351	174	188	20.2	0	1	B13	TS6
L5	58025	√	12	80	138	600	351	174	188	20.5	0	1	B13	TS6
L5	58520	×	12	85	148	650	351	174	188	21	0	1	B13	TS6
L5	58827	√	12	88	154	690	351	174	188	22.0	0	1	B13	TS6
L5	58827	×	12	88	154	690	351	174	188	22.0	0	1	B13	TS6
L5	60038	√	12	98	175	770	351	174	188	23.1	0	1	B13	TS6
L5	60038	×	12	98	175	770	351	174	188	23.1	0	1	B13	TS6
L5	60044	×	12	100	179	810	351	174	188	23.5	0	1	B13	TS6
L5	60044	√	12	100	179	810	351	174	188	23.5	0	1	B13	TS6
L6	61042	×	12	110	201	850	394	175	190	25.5	0	1	B13	TS6
L6	61042	√	12	110	201	850	394	175	190	25.5	0	1	B13	TS6
LB1	54045	√	12	40	61	380	206	174	173	11.0	0	1	B13	TS2
LB1	54045	×	12	40	61	380	206	174	173	11.0	0	1	B13	TS2
LB1	54465	√	12	44	68	410	206	174	173	11.6	0	1	B13	TS2
LB1	54465	×	12	44	68	410	206	174	173	11.6	0	1	B13	TS2
LB1	54466	√	12	44	68	410	206	174	173	11.6	1	1	B13	TS2
LB1	54466	×	12	44	68	410	206	174	173	11.6	1	1	B13	TS2
LB2	54513	√	12	45	70	430	242	175	175	12.7	0	1	B13	TS2
LB2	54514	√	12	45	70	430	242	175	175	12.7	1	1	B13	TS2
LB2	54519	×	12	45	70	430	242	175	175	12.7	1	1	B13	TS2
LB2	55040	×	12	50	79	470	242	175	175	13.2	0	1	B13	TS2
LB2	55046	×	12	50	79	470	242	175	175	13.2	1	1	B13	TS2
LB2	55519	√	12	55	88	520	242	175	175	13.7	0	1	B13	TS2
LB2	55519	×	12	55	88	520	242	175	175	13.7	0	1	B13	TS2
LB3	55059	√	12	50	79	420	276	174	174	14.6	0	1	B13	TS1
LB3	55415	×	12	54	87	460	276	174	174	15.1	0	1	B13	TS1
LB3	56067	×	12	60	98	520	276	174	174	15.4	0	1	B13	TS1
LB3	56420	×	12	65	108	570	276	174	174	16.0	0	1	B13	TS1
LB3	56420	√	12	65	108	570	276	174	174	16.0	0	1	B13	TS1
LB3	57113	×	12	68	114	600	276	174	174	16.4	0	1	B13	TS1
LB3	57113	√	12	68	114	600	276	174	174	16.4	0	1	B13	TS1
LB3	57115	×	12	68	114	600	276	174	174	16.4	1	1	B13	TS1
LB3	57313	√	12	70	118	620	278	175	175	17.2	1	1	B13	TS6
LB4	56825	√	12	68	114	550	314	174	174	17.7	0	1	B13	TS6
LB4	57539	√	12	75	128	660	314	174	174	18.4	0	1	B13	TS6
LB4	58211	√	12	78	134	700	314	174	174	19.0	0	1	B13	TS6
LB5	58015	√	12	80	138	650	351	174	173	20.2	0	1	B13	TS6
LB5	58515	√	12	85	148	670	351	174	173	20.6	0	1	B13	TS6

Parameter information subject to the contract, here for your reference only.

1.High Capacity.

2.Long life.

3.High CCA and good starting performance.

4.Good charging acceptance and vibration resistant performance.

5.Application of advanced PE type separator.

6.Application of TTP technology.

7.Advanced sulfate-resistant technology.

8.Advanced calcium lead alloy technology, maintenance-free design.

9.Reliable labyrinth-like seal design.

10.Lead alloy terminal apply heavy load.

11.Full ranges models, good appearance and high standard design.

1. Starting, light and ignition for car, Tractor, Mine vehicle and Mobile machinery shop

2. Starting and ignition for the diesel motor or gasoline motor

3. It can be used as power for car, Tractor, Mine vehicle and Mobile machinery shop
