Flooded-HT

Vehicle starting, developed for use in high temperature areas, suitable for small and medium-sized vehicles without start-stop system

Specification Features Application Curves

Model	Electric eye	Rated Voltage (V)	20hr @1.75V /cell	RC (min)	CCA -18℃ (A)	L(mm) ±2	W(mm) ±2	H(mm) ±2	TH(mm) ±2	Gross Weight (kg)	Dry Weight (kg)	Cell layout	Terminal	Hold -Down	Handles
85-450HT	N	12	60	98	450	229	171	183	205	14.7	10.6	0	1	B01	TS3
86-490HT	N	12	63	104	490	229	171	183	205	15.2	11.3	1	1	B01	TS3
54024HT	Y	12	40	61	310	207+0-2	175+0-2	190+0-3	190+0-3	11.3	7.7	0	1	B13	TS2
54459HT	Y	12	44	68	350	207+0-2	175+0-2	190+0-3	190+0-3	12.1	8.4	0	1	B13	TS2
55025HT	Y	12	49	77	380	207+0-2	175+0-2	190+0-3	190+0-3	12.5	9.0	0	1	B13	TS2
55025HT	N	12	49	77	380	207+0-2	175+0-2	190+0-3	190+0-3	12.5	9.0	0	1	B13	TS2

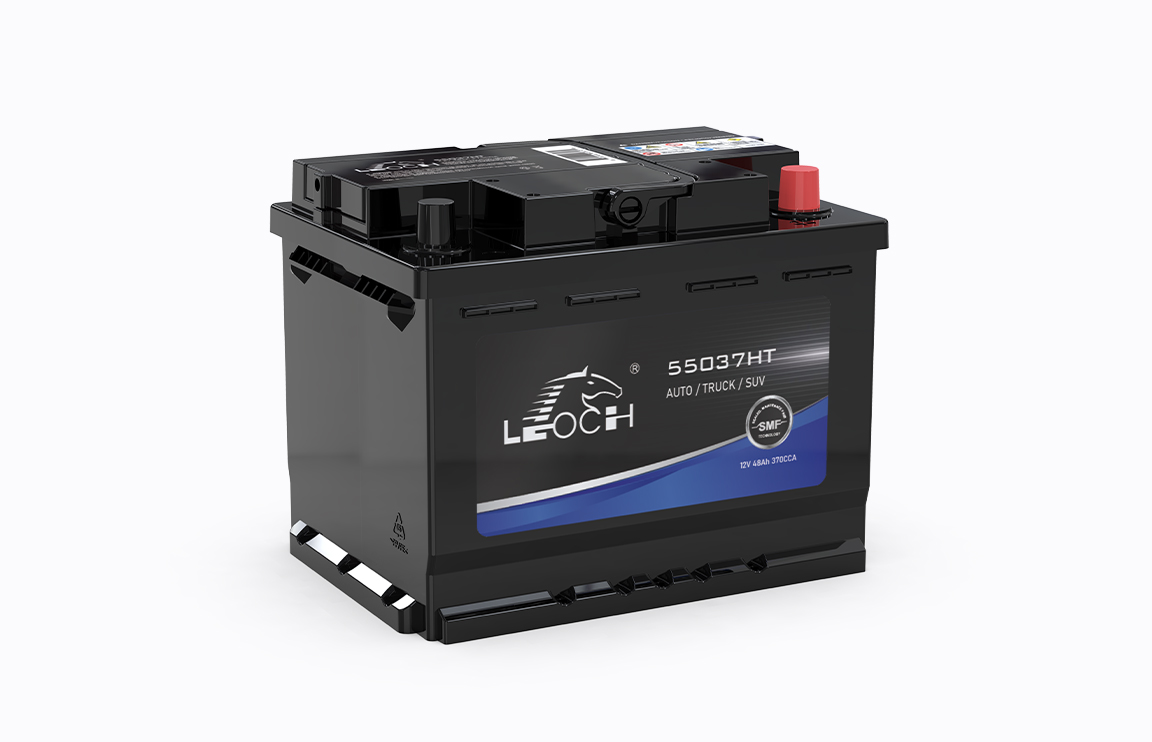

55037HT	N	12	48	75	370	242+0-2	175+0-2	190+0-3	190+0-3	13.9	9.2	0	1	B13	TS2
55530HT	Y	12	55	88	420	242+0-2	175+0-2	190+0-3	190+0-3	14.4	9.9	0	1	B13	TS2
56219HT	Y	12	60	98	470	242+0-2	175+0-2	190+0-3	190+0-3	15.0	10.6	0	1	B13	TS2
56219HT	N	12	60	98	470	242+0-2	175+0-2	190+0-3	190+0-3	15.0	10.6	0	1	B13	TS2
56221HT	N	12	60	98	470	242+0-2	175+0-2	190+0-3	190+0-3	15.0	10.6	1	1	B13	TS2
56053HT	Y	12	60	98	440	278+0-2	175+0-2	190+0-3	190+0-3	16.0	10.9	0	1	B13	TS6
56545HT	Y	12	65	108	480	278+0-2	175+0-2	190+0-3	190+0-3	16.4	11.6	0	1	B13	TS6
57220HT	Y	12	72	122	520	278+0-2	175+0-2	190+0-3	190+0-3	17.2	12.2	0	1	B13	TS6
57220HT	N	12	72	122	520	278+0-2	175+0-2	190+0-3	190+0-3	17.2	12.3	0	1	B13	TS6
57219HT	N	12	72	122	520	278+0-2	175+0-2	190+0-3	190+0-3	17.2	12.3	1	1	B13	TS6
57543HT	Y	12	75	128	540	314	174	190	190	19.2	13.4	0	1	B13	TS6
58043HT	N	12	80	138	580	314	174	190	190	19.6	13.9	0	1	B13	TS6
58519HT	Y	12	85	148	560	351	174	188	188	21.2	14.7	0	1	B13
59524HT	Y	12	95	169	640	351	174	188	188	22.7	16.2	0	1	B13	TS6
60038HT	N	12	98	175	680	351	174	188	188	23.0	17.0	0	1	B13	TS6
61042HT	N	12	110	201	780	394	175+0-2	190+0-3	190+0-3	25.5	18.4	0	1	B13	TS6
56420HT	N	12	65	108	500	276	174	174	174	16.1	11.5	0	1	B13	TS1
57539HT	Y	12	75	128	540	314	174	174	174	18.3	13.0	0	1	B13	TS6
36B20LHT	Y	12	32	47	260	195	126	201	222	9.10	6.20	0	1	B0	TS1

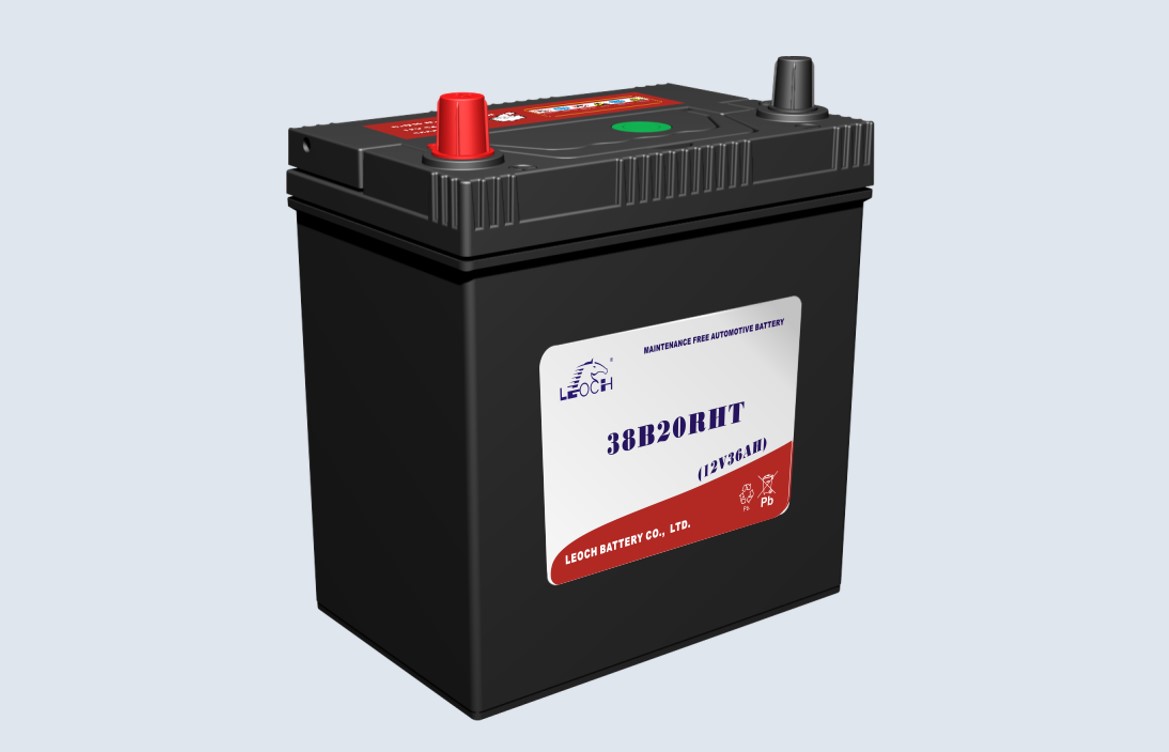

36B20RHT	Y	12	32	47	260	195	126	201	222	9.1	6.2	1	3	B0	TS1
38B20LHT	Y	12	36	54	300	195	126	201	222	9.6	6.9	0	3	B0	TS1
38B20LHT	N	12	36	54	300	195	126	201	222	9.6	6.9	0	3	B0	TS1
38B20RHT	Y	12	36	54	300	195	126	201	222	9.6	6.9	1	3	B0	TS1
38B20RHT	N	12	36	54	300	195	126	201	222	9.6	6.9	1	3	B0	TS1
38B24LSHT	N	12	36	54	300	236	128	200	222	10.9	7.3	0	1	B0	TS1
38B24LHT	N	12	36	54	300	236	128	200	222	10.9	7.2	0	3	B0	TS1
38B24RSHT	N	12	36	54	300	236	128	200	222	10.9	7.3	1	1	B0	TS1
40B24LSHT	Y	12	40	61	350	236	128	200	222	11.3	7.7	0	1	B0	TS1
40B24RSHT	Y	12	40	61	350	236	128	200	222	11.3	7.7	1	1	B0	TS1
40B24LHT	Y	12	40	61	350	236	128	200	222	11.2	7.6	0	3	B0	TS1
40B24RHT	Y	12	40	61	350	236	128	200	222	11.9	8.5	1	1	B0	TS1

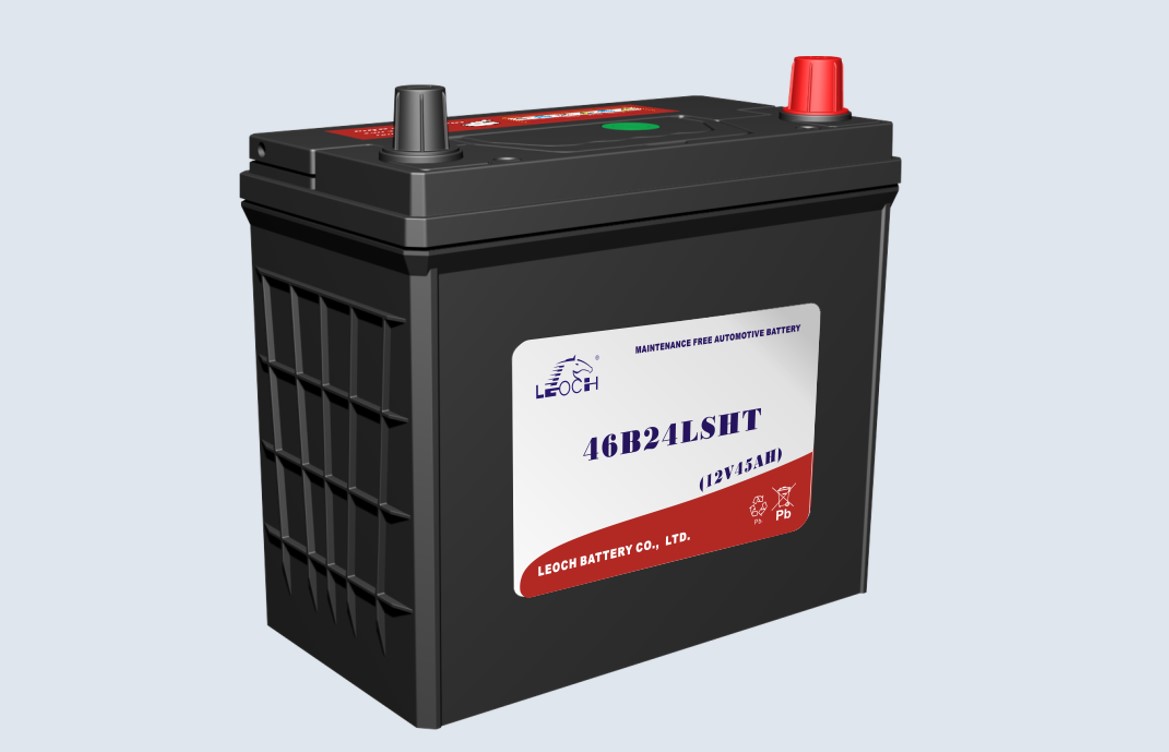

46B24LSHT	Y	12	45	70	380	236	128	200	222	11.9	8.5	0	1	B0	TS1
46B24LSHT	N	12	45	70	380	236	128	200	222	11.8	8.4	0	1	B0	TS1
46B24LHT	N	12	45	70	350	236	128	200	222	11.7	8.2	0	3	B0	TS1
46B24XLSHT	N	12	45	70	380	236	136	200	222	11.8	8.4	0	1	B1	TS1
46B24RSHT	Y	12	45	70	380	236	128	200	222	11.9	8.5	1	1	B0	TS1
46B24RSHT	N	12	45	70	380	236	128	200	222	11.8	8.4	1	1	B0	TS1
46B24RHT	N	12	45	70	350	236	128	200	222	11.7	8.2	1	3	B0	TS1
48D23LHT	N	12	48	75	380	231.5	174.5	202	223	14.2	9.5	0	1	B1	TS1
55D23LHT	N	12	60	98	450	231.5	174.5	202	223	15.4	10.8	0	1	B1	TS1
75D23LHT	N	12	63	104	490	231.5	172	202	223	15.9	11.5	0	1	B0	TS1
48D26LHT	Y	12	48	75	360	260	172	200+1-2	221	15.2	9.5	0	1	B01	TS1
48D26LHT	N	12	48	75	360	260	172	200+1-2	221	15.4	9.5	0	1	B01	TS1
48D26RHT	Y	12	48	75	360	260	172	200+1-2	221	15.2	9.5	1	1	B01	TS1
48D26RHT	N	12	48	75	360	260	172	200+1-2	221	15.4	9.5	1	1	B01	TS1
50D26LHT	Y	12	55	88	400	260	172	200+1-2	221	15.7	10.1	0	1	B01	TS1
50D26RHT	Y	12	55	88	400	260	172	200+1-2	221	15.7	10.1	1	1	B01	TS1
65D26LHT	Y	12	65	108	480	260	172	200+1-2	221	17.2	11.7	0	1	B01	TS1
65D26RHT	Y	12	65	108	480	260	172	200+1-2	221	17.2	11.7	1	1	B01	TS1
62D31LHT	N	12	67	112	450	303	170	201	222	18.5	12.3	0	1	B1	TS1
62D31RHT	N	12	67	112	450	303	170	201	222	18.5	12.3	1	1	B1	TS1
75D31LHT	Y	12	75	128	500	303	170	201	222	19.6	13.5	0	1	B1	TS1
75D31RHT	Y	12	75	128	500	303	170	201	222	19.6	13.5	1	1	B1	TS1
95D31LHT	N	12	80	138	550	303	170	201	222	20.3	14.3	0	1	B1	TS1
95D31RHT	N	12	80	138	550	303	170	201	222	20.3	14.3	1	1	B1	TS1
105D31LHT	Y	12	90	158	600	303	170	201	222	21.1	14.9	0	1	B1	TS1
105D31RHT	Y	12	90	158	600	303	170	201	222	21.1	14.9	1	1	B1	TS1
110D31LHT	Y	12	95	169	640	303	170	201	222	21.8	15.8	0	1	B1	TS1
110D31RHT	Y	12	95	169	640	303	170	201	222	21.8	15.8	1	1	B1	TS1
80E41RHT	N	12	85	148	570	408±3	170	209	233	23.9	15.2	1	1	B0	TS8
80E41RHT	N	12	85	148	570	408±3	170	209	237	24.0	15.3	1	4	B0	TS8
85E41LHT	N	12	90	158	600	408±3	170	209	233	24.5	15.4	0	1	B0	TS8
85E41RHT	N	12	90	158	600	408±3	170	209	233	24.5	15.4	1	1	B0	TS8
90E41LHT	Y	12	95	169	640	408±3	170	209	233	25.0	16.5	0	1	B0	TS8
90E41RHT	Y	12	95	169	640	408±3	170	209	233	25.0	16.5	1	1	B0	TS8
95E41LHT	N	12	100	179	680	408±3	170	209	233	25.7	17.1	0	1	B0	TS8
95F51RHT	N	12	100	179	650	504±3	183.5	200	223	31.4	19.7	3	1	B0	TS8
95F51RHT	N	12	100	179	650	504±3	183.5	200	232.5	31.6	19.9	3	4	B0	TS8
105F51RHT	N	12	110	201	750	504±3	183.5	200	223	32.9	21.7	3	1	B0	TS8
105F51RHT	N	12	110	201	750	504±3	183.5	200	232.5	33.2	21.9	3	4	B0	TS8
120G51RHT	N	12	120	223	700	510+2-5	222+0/-5	196±3	217±3	36.1	22.2	3	1	B0	TS8
120G51RHT	N	12	120	223	700	510+2-5	222+0/-5	196±3	226.5±3	36.4	22.4	3	4	B0	TS8
135G51RHT	N	12	135	256	800	510+2-5	222+0/-5	196±3	217±3	38.4	25.2	3	1	B0	TS8
135G51RHT	N	12	135	256	800	510+2-5	222+0/-5	196±3	226.5±3	38.5	25.4	3	4	B0	TS8
150G51LHT	N	12	155	301	900	510+2-5	222+0/-5	196±3	217±3	40.2	27.1	4	1	B0	TS8
150G51RHT	N	12	155	301	900	510+2-5	222+0/-5	196±3	217±3	40.2	27.1	3	1	B0	TS8
170G51LHT	N	12	170	336	1000	510+2-5	222+0/-5	196±3	217±3	42.8	30.1	4	1	B0	TS8
170G51RHT	N	12	170	336	1000	510+2-5	222+0/-5	196±3	217±3	42.8	30.1	3	1	B0	TS8
170G51RHT	Y	12	170	336	1000	510+2-5	222+0/-5	196±3	226.5±3	43.1	30.1	3	4	B0	TS8
195G51LHT	N	12	180	360	1000	510+2-5	222+0/-5	196±3	217±3	47.7	35.8	4	1	B0	TS8
195G51RHT	N	12	180	360	1000	510+2-5	222+0/-5	196±3	217±3	47.7	35.8	3	1	B0	TS8
155H52RHT	N	12	165	324	900	521±3	261±3	217.5±3	240.5±3	50.5	30.5	3	1	B0	TS8
155H52RHT	N	12	165	324	900	521±3	261±3	217.5±3	250±3	50.9	30.8	3	4	B0	TS8
180H52RHT	N	12	190	383	1050	521±3	261±3	217.5±3	240.5±3	54.5	35.1	3	1	B0	TS8
180H52RHT	N	12	190	383	1050	521±3	261±3	217.5±3	250±3	54.5	35.5	3	4	B0	TS8
210H52LHT	N	12	220	456	1280	521±3	261±3	217.5±3	240.5±3	59.8	41.2	4	1	B0	TS8
210H52RHT	N	12	220	456	1280	521±3	261±3	217.5±3	240.5±3	59.8	41.2	3	1	B0	TS8

Parameter information subject to the contract, here for your reference only.

1.High-performance charging acceptance, slow down battery sulfation

2.Patented labyrinth structure, improve the efficiency of electrolyte return, electrolyte is not easy to leak, safe and reliable

3.Adopt thicker grid design to increase the tin content of the positive grid and improve corrosion resistance

4.Adopt special formula of the negative plate to ensure the battery's CCA and improve the battery's high temperature resistance lOptimize the size of the plate, increase the amount of electrolyte, and reduce the loss of electrolyte due to high-temperature evaporation and charging effect

5.Increase the apparent density of lead paste, enhance the binding force of active material, extend the service life of the battery lIncrease the glue injection to restrain the growth of the plate and prolong the service life of the battery

6.Adjust the battery electrolyte density, reduce the corrosion rate of the plate, and improve the battery cycle life

1.Vehicle starting

2.Developed for use in high temperature areas

3.Suitable for small and medium-sized vehicles without start-stop system
