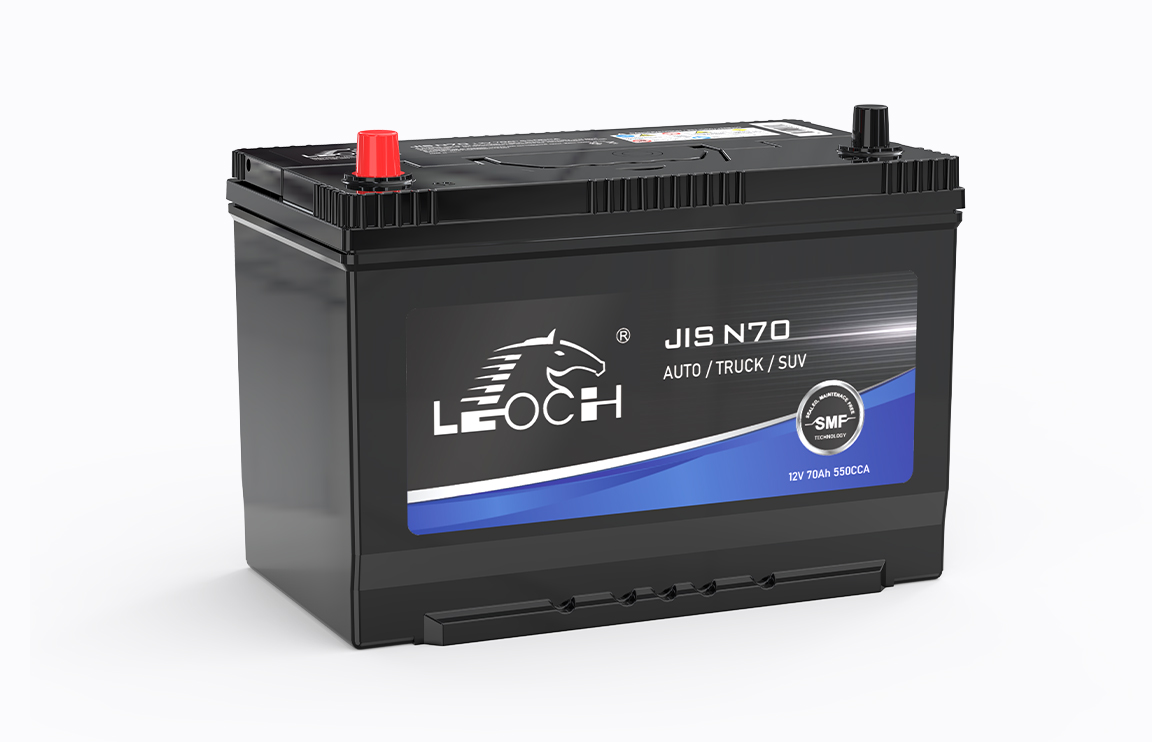

Flooded JIS Series(MF)

LEOCH JIS series flooded maintenances-free car battery has very good low temperature starting ability,super long shelf life and maintenance free under normal situation.Those batteries are manufactured under JIS technology standard,less electrolyte is consumed,good anti-vibration capacity.It's good used for car, tractor,mine-truck and the starting,lighting for the construction engineer vehicles,etc.

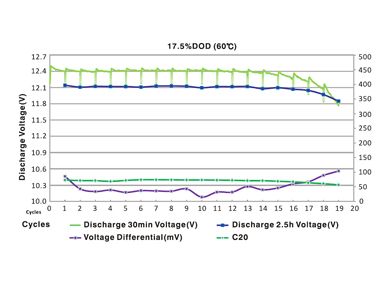

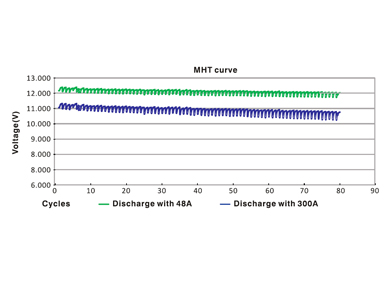

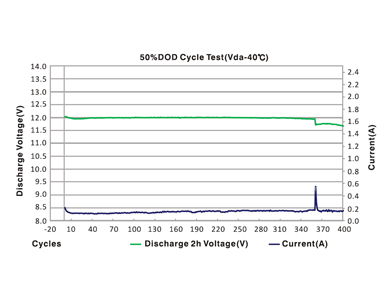

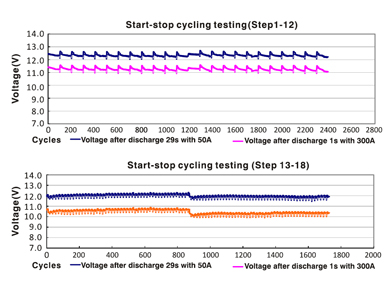

Specification Features Application Curves

Series	Model	magic eye	Rated Voltage	20hr@ 1.75V/cell	RC	CCA (-18°C)	Length	Width	Height	Weight	Cell layout	Terminal	Hold Down	Handle
Series	Model	magic eye	V	20hr@ 1.75V/cell	min	A	mm	mm	mm	kg	Cell layout	Terminal	Hold Down	Handle
B20	36B20L	√	12	32	47	310	195	126	222	9.2	0	3	B0	TS1
B20	36B20L	×	12	32	47	310	195	126	222	9.2	0	3	B0	TS1
B20	36B20R	√	12	32	47	310	195	126	222	9.2	1	3	B0	TS1
B20	36B20R	×	12	32	47	310	195	126	222	9.2	1	3	B0	TS1
B20	38B20L	√	12	36	54	330	195.5	128	222	9.8	0	3	B0	TS9
B20	38B20LS	×	12	36	54	335	195	126	222	9.7	0	1	B0	TS1
B20	38B20RS	×	12	36	54	335	195	126	222	9.7	1	1	B0	TS1
B20	38B20LS	√	12	36	54	335	195	126	222	9.7	0	1	B0	TS1
B20	38B20L	√	12	36	54	335	195	126	222	9.6	0	3	B0	TS1
B20	38B20L	×	12	36	54	335	195	126	222	9.6	0	3	B0	TS1
B20	38B20R	√	12	36	54	335	195	126	222	9.6	1	3	B0	TS1
B20	38B20R	×	12	36	54	335	195	126	222	9.6	1	3	B0	TS1
B24	36B24L	√	12	32	47	290	236	128	222	10.3	0	3	B0	TS1
B24	36B24LS	√	12	32	47	290	236	128	222	10.5	0	1	B0	TS1
B24	36B24RS	√	12	32	47	290	236	128	222	10.5	1	1	B0	TS1
B24	38B24LS	√	12	36	54	320	236	128	222	10.9	0	1	B0	TS1
B24	38B24RS	√	12	36	54	320	236	128	222	10.9	1	1	B0	TS1
B24	38B24RS	×	12	36	54	320	236	128	222	10.9	1	1	B0	TS1
B24	38B24L	√	12	36	54	320	236	128	222	10.7	0	3	B0	TS1
B24	38B24R	√	12	36	54	320	236	128	222	10.7	1	3	B0	TS1
B24	40B24L	×	12	40	61	350	236	128	222	11.2	0	3	B0	TS1
B24	40B24L	√	12	40	61	350	236	128	222	11.2	0	3	B0	TS1
B24	40B24R	×	12	40	61	350	236	128	222	11.2	1	3	B0	TS1
B24	40B24R	√	12	40	61	350	236	128	222	11.2	1	3	B0	TS1
B24	40B24LS	×	12	40	61	380	236	128	222	11.4	0	1	B0	TS1
B24	40B24LS	√	12	40	61	380	236	128	222	11.4	0	1	B0	TS1
B24	40B24RS	×	12	40	61	380	236	128	222	11.4	1	1	B0	TS1
B24	40B24RS	√	12	40	61	380	236	128	222	11.4	1	1	B0	TS1
B24	46B24L	√	12	45	70	380	237	128	222	11.8	0	3	B0	TS9
B24	46B24LS	√	12	45	70	380	237	128	222	12	0	1	B0	TS9
B24	46B24LS	×	12	45	70	410	236	128	222	11.7	0	1	B0	TS1
B24	46B24LS	√	12	45	70	410	236	128	222	11.7	0	1	B0	TS1
B24	46B24RS	×	12	45	70	410	236	128	222	11.7	1	1	B0	TS1
B24	46B24RS	√	12	45	70	410	236	128	222	11.7	1	1	B0	TS1
B24	46B24L	×	12	45	70	350	236	128	222	11.6	0	3	B0	TS1
B24	46B24L	√	12	45	70	350	236	128	222	11.6	0	3	B0	TS1
B24	46B24R	×	12	45	70	350	236	128	222	11.6	1	3	B0	TS1
B24	46B24R	√	12	45	70	350	236	128	222	11.6	1	3	B0	TS1
B24	55B24L	√	12	48	75	350	236	128	222	12.0	0	3	B0	TS1
B24	55B24R	√	12	48	75	350	236	128	222	12.0	1	3	B0	TS1
D23	50D23L	√	12	55	88	480	231.5	172	223	14.7	0	1	B0	TS1
D23	50D23R	√	12	55	88	480	231.5	172	223	14.7	1	1	B0	TS1
D23	50D23R	×	12	55	88	480	231.5	172	223	14.7	1	1	B0	TS1
D23	55D23L	√	12	60	98	500	231.5	172	222.5	15.7	0	1	B0	TS7
D23	55D23L	×	12	60	98	520	231.5	174.5	223	15.2	0	1	B1	TS1
D23	55D23R	√	12	60	98	520	231.5	174.5	223	15.2	1	1	B1	TS1
D23	55D23L	√	12	60	98	520	231.5	174.5	223	15.2	0	1	B1	TS1
D23	75D23L	×	12	63	104	550	231.5	172	223	15.9	0	1	B0	TS1
D23	75D23L	√	12	63	104	550	231.5	172	223	15.9	0	1	B0	TS1
D23	75D23R	×	12	63	104	550	231.5	172	223	15.9	1	1	B0	TS1
D23	75D23R	√	12	63	104	550	231.5	172	223	15.9	1	1	B0	TS1
D26	46D26L	√	12	43	66	360	259	174.8	221	14.8	0	1	B1	TS1
D26	46D26R	√	12	43	66	360	259	174.8	221	14.8	1	1	B1	TS1
D26	48D26L	×	12	50	79	410	259	174.8	221	15.3	0	1	B1	TS1
D26	48D26L	√	12	50	79	410	259	174.8	221	15.3	0	1	B1	TS1
D26	48D26R	×	12	50	79	410	259	174.8	221	15.3	1	1	B1	TS1
D26	48D26R	√	12	50	79	410	259	174.8	221	15.3	1	1	B1	TS1
D26	50D26L	×	12	55	88	450	259	174.8	221	16.1	0	1	B1	TS1
D26	50D26R	×	12	55	88	450	259	174.8	221	16.1	1	1	B1	TS1
D26	55D26L	×	12	60	98	500	259	174.8	221	16.5	0	1	B1	TS1
D26	55D26L	√	12	60	98	500	259	174.8	221	16.5	0	1	B1	TS1
D26	55D26R	×	12	60	98	500	259	174.8	221	16.5	1	1	B1	TS1
D26	55D26R	√	12	60	98	500	259	174.8	221	16.5	1	1	B1	TS1
D26	65D26L	×	12	65	108	540	259	174.8	221	17.2	0	1	B1	TS1
D26	65D26L	√	12	65	108	540	259	174.8	221	17.2	0	1	B1	TS1
D26	65D26R	×	12	65	108	540	259	174.8	221	17.2	1	1	B1	TS1
D26	65D26R	√	12	65	108	540	259	174.8	221	17.2	1	1	B1	TS1
D26	80D26L	√	12	70	118	600	259	174.8	221	17.7	0	1	B1	TS1
D26	80D26L	×	12	70	118	600	259	174.8	221	17.7	0	1	B1	TS1
D26	80D26R	√	12	70	118	600	259	174.8	221	17.7	1	1	B1	TS1
D26	80D26R	×	12	70	118	600	259	174.8	221	17.7	1	1	B1	TS1
D26	85D26R	×	12	75	128	630	259	174.8	221	18.4	1	1	B1	TS1
D26	85D26R	√	12	75	128	630	259	174.8	221	18.4	1	1	B1	TS1
D26	85D26L	√	12	75	128	630	259	174.8	221	18.4	0	1	B1	TS1
D26	90D26L	×	12	80	138	660	259	174.8	221	18.9	0	1	B1	TS1
D26	90D26L	√	12	80	138	660	259	174.8	221	18.9	0	1	B1	TS1
D26	90D26R	√	12	80	138	660	259	174.8	221	18.9	1	1	B1	TS1
D31	55D31L	√	12	55	88	410	303	170	222	17.3	0	1	B1	TS1
D31	55D31R	√	12	55	88	410	303	170	222	17.5	1	1	B1	TS1
D31	58D31L	√	12	60	98	450	303	170	222	17.9	0	1	B1	TS1
D31	58D31R	√	12	60	98	450	303	170	222	17.9	1	1	B1	TS1
D31	60D31L	√	12	65	108	500	303	170	222	18.5	0	1	B1	TS1
D31	60D31L	×	12	65	108	500	303	170	222	18.5	0	1	B1	TS1
D31	60D31R	√	12	65	108	500	303	170	222	18.5	1	1	B1	TS1
D31	60D31R	×	12	65	108	500	303	170	222	18.5	1	1	B1	TS1
D31	65D31L	√	12	70	118	550	303	170	222	19.2	0	1	B1	TS1
D31	65D31R	√	12	70	118	550	303	170	222	19.2	1	1	B1	TS1
D31	75D31L	√	12	75	128	590	303	170	222	19.7	0	1	B1	TS1
D31	75D31L	×	12	75	128	590	303	170	222	19.7	0	1	B1	TS1
D31	75D31R	×	12	75	128	590	303	170	222	19.7	1	1	B1	TS1
D31	75D31R	√	12	75	128	590	303	170	222	19.7	1	1	B1	TS1
D31	95D31L	√	12	80	138	630	303	170	222	20.2	0	1	B1	TS1
D31	95D31L	×	12	80	138	630	303	170	222	20.2	0	1	B1	TS1
D31	95D31R	√	12	80	138	630	303	170	222	20.2	1	1	B1	TS1
D31	95D31R	×	12	80	138	630	303	170	222	20.2	1	1	B1	TS1
D31	100D31L	√	12	83	144	660	303	170	222	20.9	0	1	B1	TS1
D31	100D31R	√	12	83	144	660	303	170	222	20.9	1	1	B1	TS1
D31	105D31L	√	12	90	158	720	303	170	222	22.1	0	1	B1	TS1
D31	105D31L	×	12	90	158	720	303	170	222	22.1	0	1	B1	TS1
D31	105D31R	√	12	90	158	720	303	170	222	22.1	1	1	B1	TS1
D31	105D31R	×	12	90	158	720	303	170	222	22.1	1	1	B1	TS1
E41	65E41R	√	12	70	118	510	408	170	233	22.5	1	1	B0	TS8
E41	75E41R	√	12	80	138	590	408	170	233	23.7	1	1	B0	TS8
E41	85E41L	√	12	90	158	670	408	170	233	24.8	0	1	B0	TS8
E41	85E41R	√	12	90	158	670	408	170	233	24.8	1	1	B0	TS8
E41	85E41R	×	12	90	158	670	408	170	233	24.8	1	1	B0	TS8
E41	85E41R	×	12	90	158	670	408	170	237	24.9	1	4	B0	TS8
E41	90E41R	√	12	95	169	700	408	170	233	25.3	1	1	B0	TS8
E41	90E41L	×	12	95	169	700	408	170	233	25.3	0	1	B0	TS8
E41	90E41L	√	12	95	169	700	408	170	233	25.3	0	1	B0	TS8
E41	95E41L	×	12	100	179	750	408	170	233	25.9	0	1	B0	TS8
E41	95E41L	√	12	100	179	750	408	170	233	25.9	0	1	B0	TS8
E41	95E41R	×	12	100	179	750	408	170	233	25.9	1	1	B0	TS8
E41	95E41R	√	12	100	179	750	408	170	233	25.9	1	1	B0	TS8
E41	105E41L	×	12	120	223	750	408	170	233	27.5	0	1	B0	TS8
E41	105E41R	√	12	120	223	750	408	170	233	27.5	1	1	B0	TS8
F51	80F51L	√	12	85	148	550	504	183.5	223	29.1	4	1	B0	TS8
F51	80F51R	√	12	85	148	550	504	183.5	223	29.1	3	1	B0	TS8
F51	105F51L	√	12	110	201	750	504	183.5	223	32.0	4	1	B0	TS8
F51	115F51L	√	12	120	223	800	504	183.5	223	32.6	4	1	B0	TS8
F51	115F51R	√	12	120	223	800	504	183.5	223	32.6	3	1	B0	TS8
F51	115F51R	×	12	120	223	800	504	183.5	223	32.6	3	1	B0	TS8
F51	135F51R	√	12	130	245	880	504	183.5	223	34.1	3	1	B0	TS8
F51	135F51R	×	12	130	245	880	504	183.5	223	34.1	3	1	B0	TS8
G51	120G51R	×	12	120	223	730	510	222	217	35.8	3	1	B0	TS8
G51	130G51R	√	12	130	245	800	510	222	217	37.2	3	1	B0	TS8
G51	135G51R	√	12	135	256	800	510	222	217	37.7	3	1	B0	TS8
G51	145G51L	√	12	150	290	900	510	222	217	39.6	4	1	B0	TS8
G51	145G51R	√	12	150	290	900	510	222	217	39.6	3	1	B0	TS8
G51	145G51R	×	12	150	290	900	510	222	217	39.0	3	1	B0	TS8
G51	160G51L	√	12	160	313	950	510	222	217	40.3	4	1	B0	TS8
G51	160G51R	√	12	160	313	950	510	222	217	40.3	3	1	B0	TS8
G51	165G51R	√	12	165	324	1000	510	222	217	41.2	3	1	B0	TS8
G51	165G51R	√	12	165	324	1000	510	222	217	41.2	3	1	B0	TS8
G51	170G51R	×	12	170	336	1000	510	222	217	41.5	3	1	B0	TS8
G51	170G51R	√	12	170	336	1000	510	222	217	41.8	3	1	B0	TS8
G51	175G51R	√	12	175	348	1050	510	222	217	42.7	3	1	B0	TS8
G51	175G51R	√	12	175	348	1050	510	222	217	42.7	3	1	B0	TS8
G51	195G51R	√	12	180	360	1080	510	222	217	43.5	3	1	B0	TS8
G51	195G51L	√	12	180	360	1080	510	222	217	43.5	4	1	B0	TS8
G51	195G51L	×	12	180	360	1000	510	222	217	45.0	4	1	B0	TS8
G51	195G51R	×	12	180	360	1000	510	222	217	45.0	3	1	B0	TS8
H52	125H52L	√	12	135	256	750	521	261	240.5	46.4	4	1	B0	TS8
H52	155H52L	√	12	165	324	920	521	261	240.5	49.5	4	1	B0	TS8
H52	155H52R	√	12	165	324	920	521	261	240.5	49.5	3	1	B0	TS8
H52	155H52R	×	12	165	324	950	521	261	240.5	49.2	3	1	B0	TS8
H52	180H52L	√	12	190	383	1050	521	261	240.5	52.8	4	1	B0	TS8
H52	180H52R	√	12	190	383	1050	521	261	240.5	52.8	3	1	B0	TS8
H52	180H52R	√	12	190	383	1050	521	261	250	53.3	3	4	B0	TS8
H52	180H52R	×	12	190	383	1050	521	261	240.5	52.5	3	1	B0	TS8
H52	190H52R	√	12	200	407	1150	521	261	240.5	54.5	3	1	B0	TS8
H52	190H52L	√	12	200	407	1150	521	261	240.5	54.5	4	1	B0	TS8
H52	210H52R	×	12	220	456	1280	521	261	240.5	57.1	3	1	B0	TS8
H52	225H52L	√	12	225	468	1280	521	261	240.5	57.5	4	1	B0	TS8
H52	225H52R	√	12	225	468	1280	521	261	240.5	57.5	3	1	B0	TS8

Parameter information subject to the contract, here for your reference only.

1.High Capacity.

2.Long life.

3.High CCA and good starting performance.

4.Good charging acceptance and vibration resistant performance.

5.Application of advanced PE type separator.

6.Application of TTP technology.

7.Advanced sulfate-resistant technology.

8.Advanced calcium lead alloy technology, maintenance-free design.

9.Reliable labyrinth-like seal design.

10.Lead alloy terminal apply heavy load.

11.Full ranges models, good appearance and high standard design.

1. Starting, light and ignition for car, Tractor, Mine vehicle and Mobile machinery shop.
2. Starting and ignition for the diesel motor or gasoline motor
3. It can be used as power for car, Tractor, Mine vehicle and Mobile machinery shop.
