Marine & RV Battery-TC Series

Leoch TC series battery offer stable power supply for electrical devices of RV, caravans, boats, motorhomes, camper etc.

Specification Features Application Curves

Model	Voltage	20Hr 1.80V /cell	Length		Width		Height		TH		Weight		Terminal
Model	Voltage	20Hr 1.80V /cell	mm	in.	mm	in.	mm	in.	mm	in.	kg	lbs	Terminal

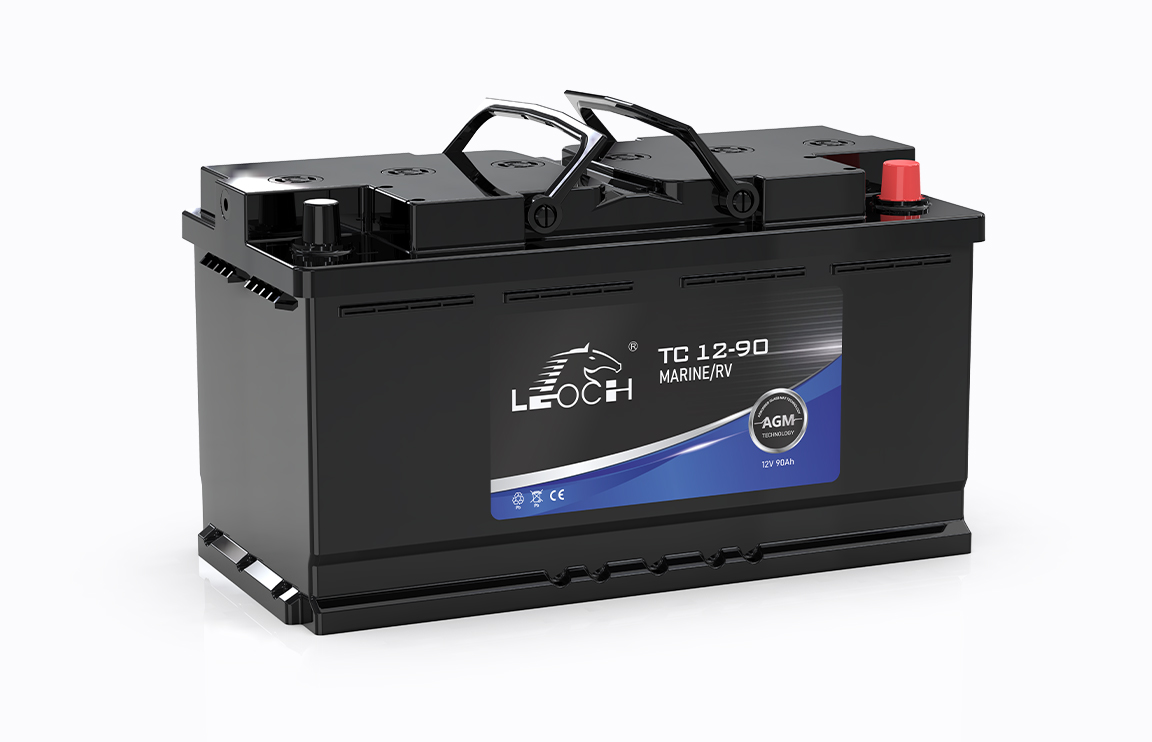

TC12-90	12	90	353	13.9	175	6.9	168	6.6	190	7.5	26.2	57.8	/
TC12-105	12	105	306	12.0	168	6.6	208	8.2	214	8.4	29.3	64.6	T6
TC12-120	12	120	330	13.0	173	6.8	212	8.3	220	8.7	34.2	75.4	T11

Parameter information subject to the contract, here for your reference only.

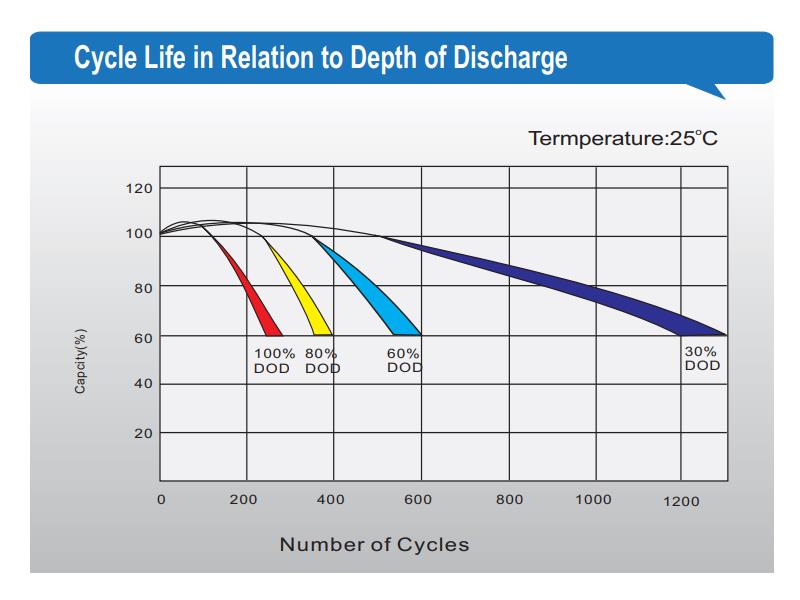

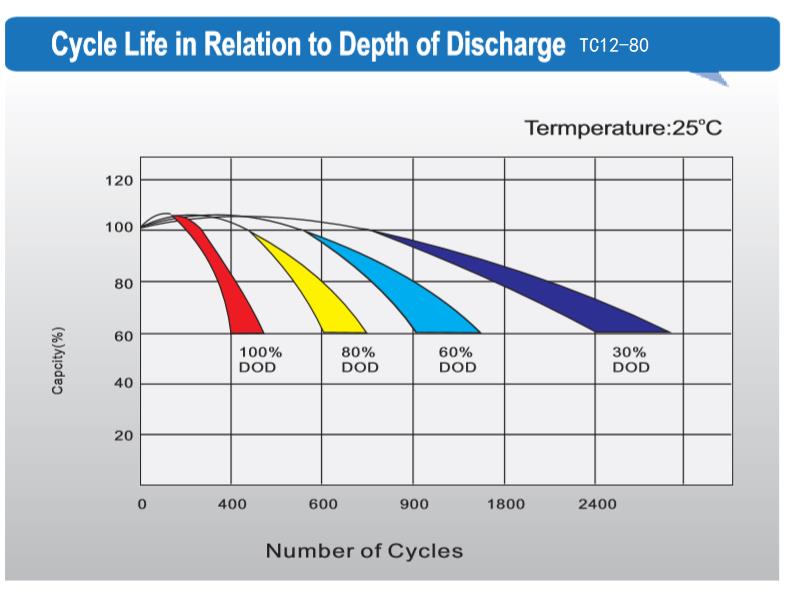

1. Long deep Cycle life：≥550 Cycles@60% DOD (TC12-80: 600 Cycles @ 80%DOD)
2. Wide temperature range：-20°C~55°C
3. Low self-discharge rate：≤3% per month
4. Excellent discharge resilience performance
5. Lead calcium high tin alloy is used to improve the corrosion resistance of grid

6. Advanced formula, high charging acceptance and strong anti sulfurization ability

7. The unique design of grid makes the combination of active material and grid better, which improves the charging acceptance of battery

8. High temperature curing process is adopted to strengthen the combination ability of lead paste and grid, and improve the charging acceptance of battery by 35%

9. Advanced colloidal electrolyte formula to avoid stratification of sulfuric acid;

- RV/ caravans

- Marine，Boats

- Motorhomes

- Camper
