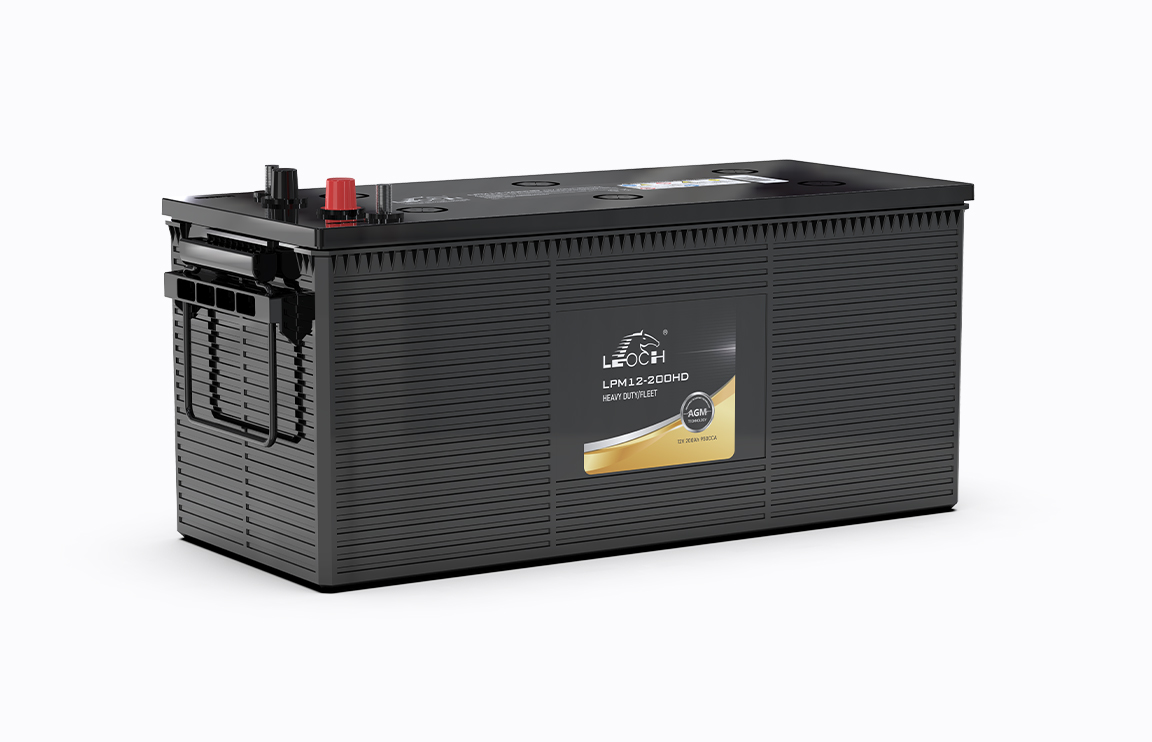

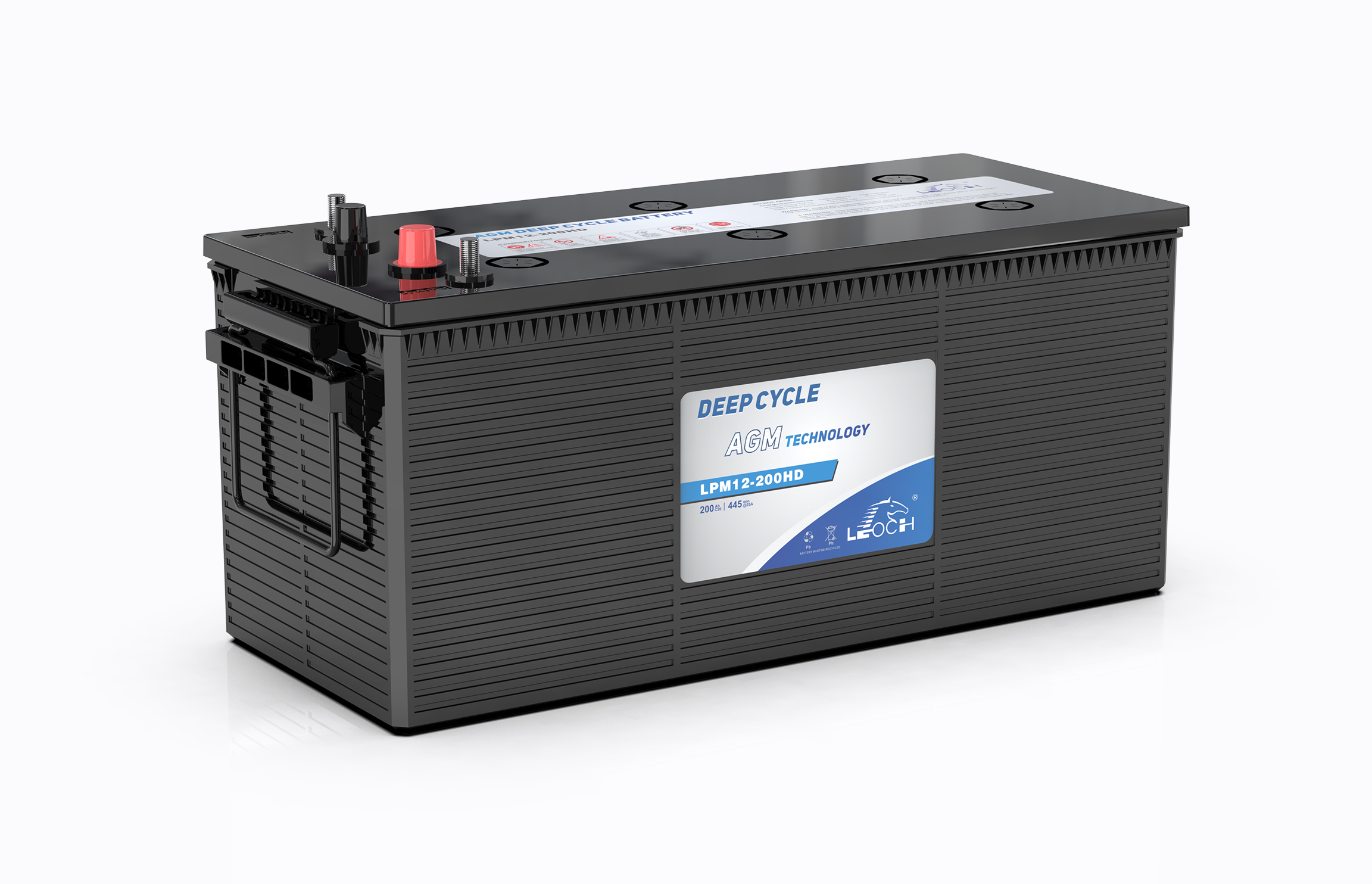

Heavy Duty- AGM Dual Purpose
Large starting current, can be ignition starting instantly, with good low temperature adaptability, can be used in a broad rangebetween -20 to 55 degrees.
Contact US
Large starting current, can be ignition starting instantly, with good low temperature adaptability, can be used in a broad rangebetween -20 to 55 degrees.
Contact US| Model | Rated Voltage | 20hr@ 1.75V/cell | RC | CCA (-18°C) | Length | Width | Height | TH | Weight | Cell layout | Terminal | Hold Down | Handle |
| V | min | A | mm | mm | mm | mm | kg | ||||||
| LPM12-140HD | 12 | 140 | 247 | 700 | 512 | 188 | 196 | 218 | 41.2 | 3 | 1 | B0 | TS8 |
| LPM12-170HD | 12 | 170 | 380 | 900 | 512 | 222 | 196 | 216 | 50.5 | 3 | 5 | B0 | TS8 |
| LPM12-200HD | 12 | 200 | 445 | 950 | 527 | 214 | 222 | 244 | 55.1 | 4 | 12 | B0 | TS8 |
| LPM12-210HD | 12 | 210 | 450 | 1200 | 517 | 272 | 218 | 238 | 63 | 3 | 5 | B0 | TS8 |
| LPM12-240HD | 12 | 240 | 525 | 1300 | 517 | 272 | 218 | 238 | 71 | 3 | 5 | B0 | TS8 |
| LPM12-330LHD | 12 | 330 | 745 | 1400 | 527 | 280 | 230 | 250 | 87.5 | 4 | 5 | B0 | TS8 |
Parameter information subject to the contract, here for your reference only.
1. Long life: Leoch marine battery has long life, adopts advanced valve-controlled AGM technology, and takes both deep cycle performance and high starting performance into consideration.
2. Valve control technology: Leoch marine battery uses a special high-sensitivity integrated safety valve to ensure certain internal pressure inside the battery, reduce water loss during using, and increase battery life.
3. Application of AGM separator : Leoch marine battery uses high strength, high porosity, and high resilience AGM separator, the separator porosity is as high as 90% or more, which improves the acid absorption of the separator and improves the battery capacity and starting ability; The resilience ensures the assembly pressure during the battery life, avoids the lead paste falling and improves the battery life
4. Bold parts design: Leoch marine battery adopts thick lead parts design, and the battery has the ability of continuous high current discharge.
5. High starting ability: Leoch marine battery adopts a unique lead paste formula , high CCA performance and stronger starting ability. At the same time, special carbon materials are added to the formula, and the battery has a higher charge acceptance ability
6. Reliable sealing structure: Leoch marine sealed lead-acid battery has a unique sealing structure to ensure the acid will not overflow
7. Low self-discharge rate: The use of high-purity raw materials and strict quality control greatly reduce the self-discharge during storage. The monthly self-discharge rate of the battery is less than 3%
8. Safe explosion-proof system: Leoch marine battery adopts a unique structure to ensure the safety of the battery
9. Super battery elasticity: Due to the unique design and additives, when it is deeply discharged to 0V, it can recover 90% of its capacity when charged with an initial current of less than 0.3C and limited 2.4V/cell for 2 weeks
10. Wide applicable temperature range: Using unique technology, it has excellent discharge performance at low temperature and strong corrosion resistance at high temperature. The temperature range is -20 to 55 ℃
11. Safety: Using AGM separator, maintenance-free design, to ensure that it can be placed in any direction
12. Simple maintenance: Excellent oxygen circulation capacity, no need to replenish water; only need to keep the battery connection line firmly, the surface clean and ventilation , the maintenance is very simple
