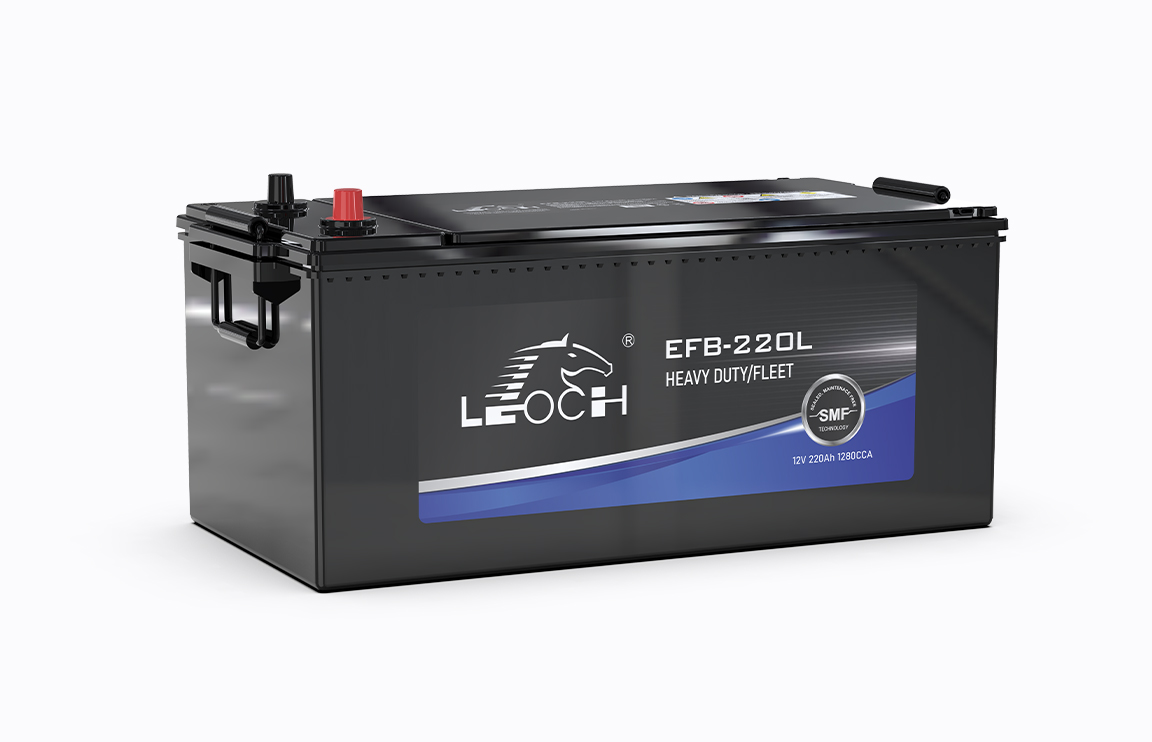

Heavy Duty- EFB Dual Purpose
Large starting current, can be ignition starting instantly, with good low temperature adaptability, can be used in a broad rangebetween -20 to 55 degrees.
Contact US
Large starting current, can be ignition starting instantly, with good low temperature adaptability, can be used in a broad rangebetween -20 to 55 degrees.
Contact US| Model | Rated Voltage | 20hr@ 1.75V/cell | RC | CCA (-18°C) | Length | Width | Height | Weight | Cell layout | Terminal | Hold Down | Handle |
| V | min | A | mm | mm | mm | kg | ||||||
| EFB-180L | 12 | 180 | 360 | 1000 | 510 | 222 | 217 | 47.4 | 4 | 1 | B0 | TS8 |
| EFB-180R | 12 | 180 | 360 | 1000 | 510 | 222 | 217 | 47.4 | 3 | 1 | B0 | TS8 |
| EFB-180R | 12 | 180 | 360 | 1100 | 513 | 222 | 216.5 | 47.7 | 3 | 1 | B0 | TS8 |
| EFB-220L | 12 | 220 | 456 | 1280 | 521 | 261 | 240.5 | 59.8 | 4 | 1 | B0 | TS8 |
| EFB-220R | 12 | 220 | 456 | 1280 | 521 | 261 | 240.5 | 59.8 | 3 | 1 | B0 | TS8 |
| EFB-225R | 12 | 225 | 468 | 1280 | 518 | 274 | 237.5 | 61.0 | 3 | 1 | B0 | TS8 |
Parameter information subject to the contract, here for your reference only.
1. Long life: Leoch marine battery has long life, adopts advanced valve-controlled EFB technology, and takes both deep cycle performance and high starting performance into consideration.
2. Application of EFB separator : Leoch marine battery uses high strength, high porosity, and high resilience EFB separator, the separator porosity is as high as 90% or more, which improves the acid absorption of the separator and improves the battery capacity and starting ability; The resilience ensures the assembly pressure during the battery life, avoids the lead paste falling and improves the battery life
3. Bold parts design: Leoch marine battery adopts thick lead parts design, and the battery has the ability of continuous high current discharge.
4. High starting ability: Leoch marine battery adopts a unique lead paste formula , high CCA performance and stronger starting ability. At the same time, special carbon materials are added to the formula, and the battery has a higher charge acceptance ability
5. Reliable sealing structure: Leoch marine sealed lead-acid battery has a unique sealing structure to ensure the acid will not overflow
6. Low self-discharge rate: The use of high-purity raw materials and strict quality control greatly reduce the self-discharge during storage. The monthly self-discharge rate of the battery is less than 3%
7. Safe explosion-proof system: Leoch marine battery adopts a unique structure to ensure the safety of the battery
8. Super battery elasticity: Due to the unique design and additives, when it is deeply discharged to 0V, it can recover 90% of its capacity when charged with an initial current of less than 0.3C and limited 2.4V/cell for 2 weeks
9. Wide applicable temperature range: Using unique technology, it has excellent discharge performance at low temperature and strong corrosion resistance at high temperature. The temperature range is -20 to 55 ℃
10. Safety: Using EFB separator, maintenance-free design, to ensure that it can be placed in any direction
11. Simple maintenance: Excellent oxygen circulation capacity, no need to replenish water; only need to keep the battery connection line firmly, the surface clean and ventilation , the maintenance is very simple
