EB PP/ Maintenance free

EB PP/Dry Series(MF)，Dry Charged AGM VRLA Maintenance Free type --PP case, Battery terminal setting into battery cover.

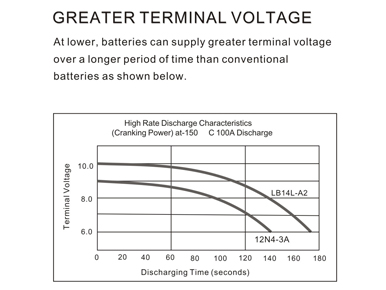

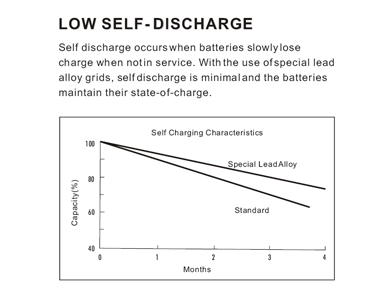

Specification Features Application Curves

Model	Voltage	Capacity	CCA	Dimensions						Weight	Terminal
	(V)	(10Hr)	@	mm			in			Weight
		Ah	(-18℃)	L	W	H	L	W	H	Kg
EBX4L-BS	12	3	50	113	70	85	4 7/16	2 3/4	3 1/2	1.39	A
EBX4L-BS(J)	12	3	40	113	70	85	4 7/16	2 3/4	3 1/2	1.31	A
EBX4L-BS-I	12	3	50	113	70	85	4 7/16	2 3/4	3 1/2	1.31	A
EBX4L-BS-I(J)	12	3	40	113	70	85	4 7/16	2 3/4	3 1/2	1.25	A
EBZ5L-BS	12	3.5	50	113	70	85	4 7/16	2 3/4	3 1/2	1.39	A
EBZ4.5L-BS	12	4	55	113	70	85	4 7/16	2 3/4	3 1/2	1.51	A
EBX5L-BS	12	4	70	113	70	105	4 7/16	2 3/4	4	1.83	A
EBX5L-BS(J)	12	4	55	113	70	105	4 7/16	2 3/4	4	1.67	A
EB5AL-BS	12	5	75	120	60	130	4 3/4	2 3/8	5 1/8	1.92	B
EBZ7L-BS	12	6	90	113	70	105	4 7/16	2 3/4	4	2.14	A
EBX7L-BS	12	6	85	113	70	130	4 7/16	2 3/4	5	2.36	A
EBX7L-BS(J)	12	6	70	113	70	130	4 7/16	2 3/4	5	2.17	A
EBX7A-BS-I	12	6	100	150	87	93	5 14/16	3 2/4	3 1/2	2.29	A
EB7B-BS	12	6.5	90	150	66	93	5 14/16	2 2/4	3 1/2	2.29	A
EB7B-BS(J)	12	6.5	70	150	66	93	5 14/16	2 2/4	3 1/2	2.15	A
EBX9-BS	12	8	120	150	87	105	5 14/16	3 2/4	4	3.04	A
EBX9-BS(J)	12	8	100	150	87	105	5 14/16	3 2/4	4	2.85	A
EB9A-BS	12	9	100	135	75	139	5 5/16	3	5 1/2	3.10	A
EB9A-BS(J)	12	8.5	70	135	75	139	5 5/16	3	5 1/2	2.87	A
EB9A-BS-1	12	9	100	135	75	139	5 5/16	3	5 1/2	3.08	B
EB9B-BS	12	8	115	150	70	105	5 14/16	2 3/4	4	2.78	A
EB9B-BS(J)	12	8	95	150	70	105	5 14/16	2 3/4	4	2.60	A
EBZ10-BS	12	8.6	150	150	88	93	5 14/16	3 2/4	3 1/2	3.11	A
EBZ12-BS	12	11	210	150	88	110	5 14/16	3 2/4	4 1/2	3.78	A
EBZ14-BS	12	11.2	210	150	88	110	5 14/16	3 2/4	4 1/2	3.80	A
EBX12-BS	12	10	130	150	87	130	5 14/16	3 2/4	5	3.86	A
EBX12-BS(J)	12	10	140	150	87	130	5 14/16	3 2/4	5	3.58	A
EB12A-BS	12	10	145	150	88	105	5 14/16	3 2/4	4	3.29	A
EB12B-BS	12	10	165	150	70	130	5 14/16	2 3/4	5	3.55	A
EB12B-BS(J)	12	10	120	150	70	130	5 14/16	2 3/4	5	3.36	A
EBX14L-BS	12	12	200	150	87	145	5 14/16	3 2/4	5 1/2	4.37	A
EBX14L-BS(J)	12	12	160	150	87	145	5 14/16	3 2/4	5 1/2	4.06	A
EBX14-BS	12	12	200	150	87	145	5 7/8	3 7/16	5 11/16	4.37	A
EBX14-BS(J)	12	12	160	150	87	145	5 14/16	3 2/4	5 1/2	4.06	A
EB14B-BS	12	12	175	150	70	145	5 14/16	2 3/4	5 1/2	4.11	A
EB14B-BS(J)	12	12	150	150	70	145	5 14/16	2 3/4	5 1/2	3.89	A
EBX14AHL-BS	12	12	220	133	90	164	5 2/8	3 9/16	6 7/16	4.42	A
EBX14AHL-BS(J)	12	12	170	133	90	164	5 2/8	3 9/16	6 7/16	4.24	A
EBX14AH-BS	12	12	220	133	90	164	5 2/8	3 9/16	6 7/16	4.42	A
EBX14AH-BS(J)	12	12	170	133	90	164	5 4/16	3 2/4	6 1/2	4.24	A
EBX16-BS	12	14	230	150	87	161	5 7/8	3 7/16	6 5/16	4.99	A
EBX20L-BS	12	18	270	175	87	155	6 14/16	3 2/4	6	5.94	A
EBX20L-BS(J)	12	18	240	175	87	155	6 14/16	3 2/4	6	5.62	A
EBX20-BS	12	18	270	175	87	155	6 7/8	3 7/16	6 2/16	5.94	A
EBX20-BS(J)	12	18	240	175	87	155	6 14/16	3 2/4	6	5.62	A
EBX20CH-BS	12	18	230	150	87	161	5 7/8	3 7/16	6 5/16	5.53	A
EBX20HL-BS-P	12	18	310	175	87	155	6 14/16	3 2/4	6	161.10	A
EBX20H-BS-P	12	18	310	175	87	155	6 14/16	3 2/4	6	161.10	A

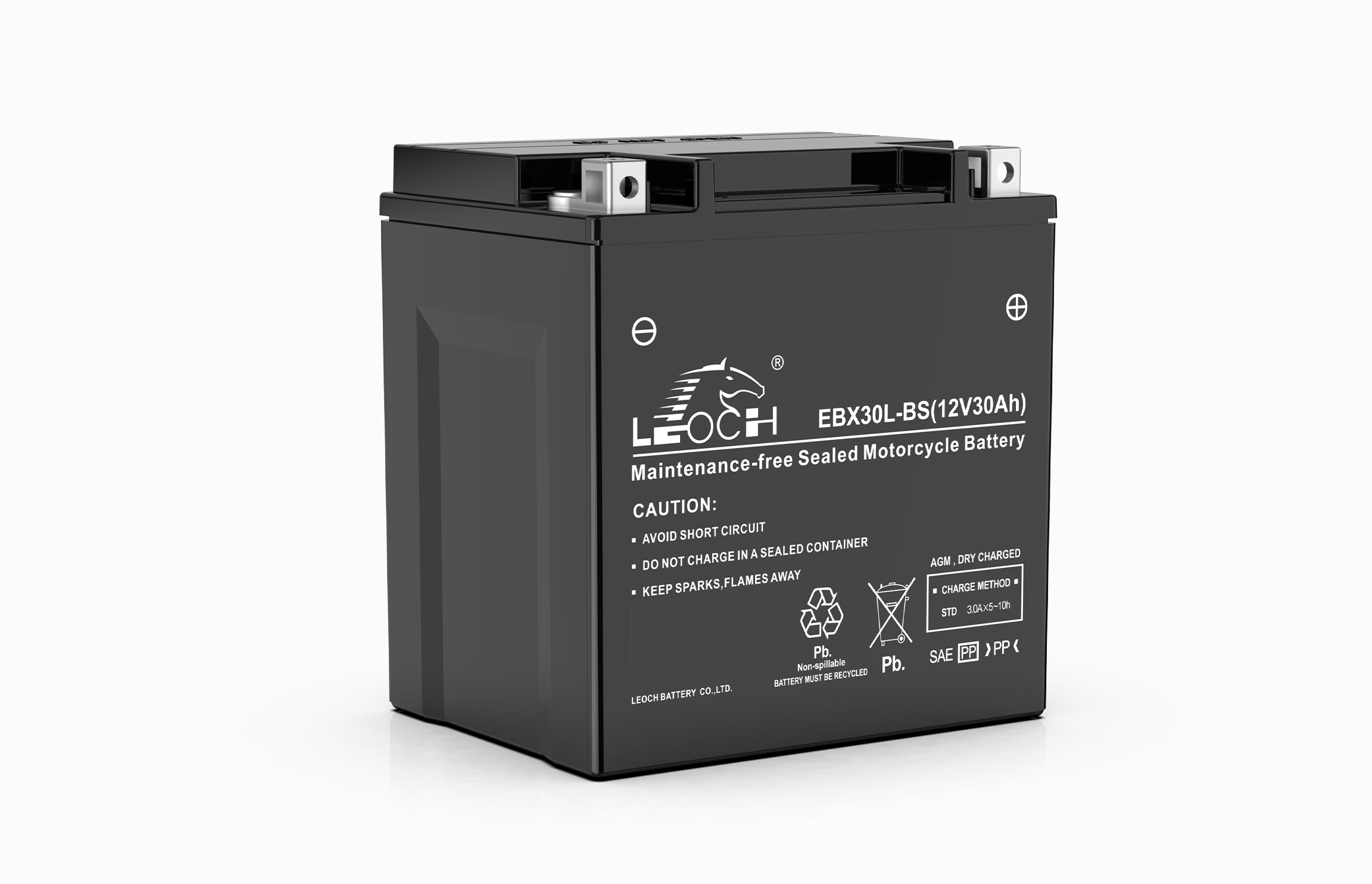

EBX30L-BS	12	30	385	166	126	173	6 4/8	4 15/16	6 13/16	9.48	A

1.Injection molding structure of battery terminal and battery cover.

2.Sealing structure of PP materials.

3.High capacity ,Long life.

4.High CCA and good starting performance.

5.Good charging acceptance and vibration resistant performance.

6.Application of AGM technology.

7.Application of COS and TTP.

8.Advanced sulfate-resistant technology.

9.Advanced calcium lead alloy technology, maintenance-free design.

10.Dependable design of leakage resistant and valve regulated sealing.

11.Dry charged design, long storage time and can be used at any time you want.

12.full ranges models, good appearance and high standard design.

1. ATV.
2. Jet ski.
3. Motorcycle.
4. Snowmobile.
5.Lawn & Garden.
