EB PP/ Factory Activated

EB PP/Wet Series(MF)，Wet Charged AGM VRLA Maintenance Free type --PP case, battery terminal setting into battery cover.

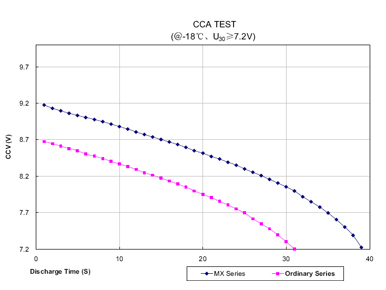

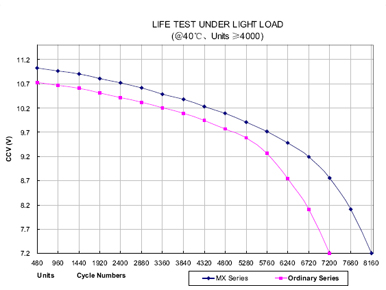

Specification Features Application Curves

Model	Voltage	Capacity	CCA	Dimensions						Weight	Terminal
	(V)	(10Hr)	@	mm			in			Weight
		Ah	(-18℃)	L	W	H	L	W	H	Kg
EBC12-4	12	12	180	150	87	130	5 14/16	3 7/16	5 2/16	3.60	A
EBC20-3	12	20	270	175	87	155	6 14/16	3 7/16	6 2/16	5.47	A

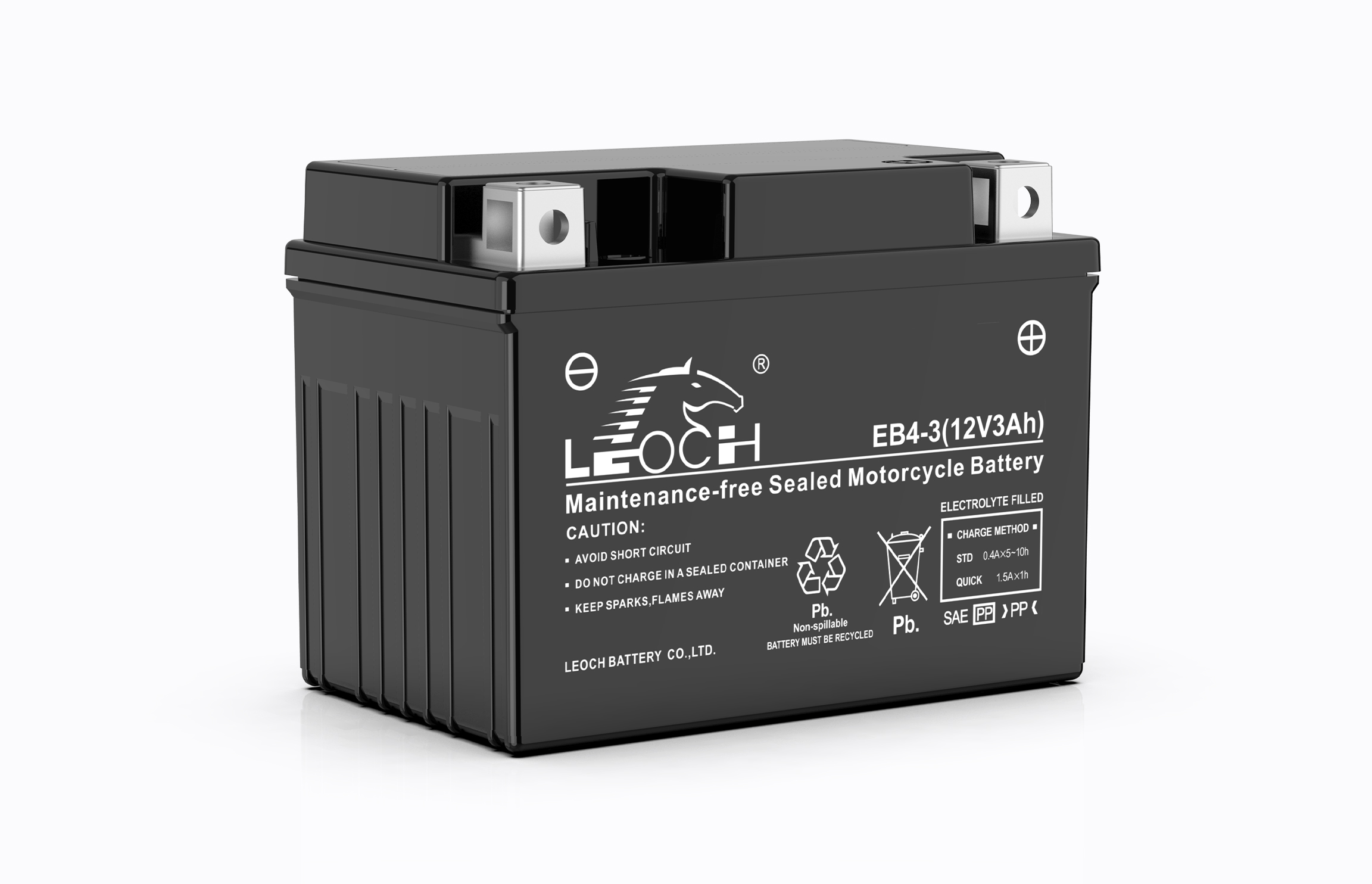

EB4-3-I	12	3	50	113	70	85	4 7/16	2 12/16	3 6/16	1.32	A
EB4-3-I(J)	12	3	40	113	70	85	4 7/16	2 12/16	3 6/16	1.26	A
EBZ5-3	12	3.5	50	113	70	85	4 7/16	2 12/16	3 6/16	1.40	A
EBZ4.5-3	12	4	55	113	70	85	4 7/16	2 12/16	3 6/16	1.52	A
EB5-3	12	4	70	113	70	105	4 7/16	2 12/16	4 2/16	1.80	A
EB5-3(J)	12	4	55	113	70	105	4 7/16	2 12/16	4 2/16	1.70	A
EB5-3-2	12	4	80	113	70	105	4 7/16	2 12/16	4 2/16	1.90	A
EB7-3	12	6	85	113	70	130	4 7/16	2 12/16	5 2/16	2.31	A
EB7-3(J)	12	6	70	113	70	130	4 7/16	2 12/16	5 2/16	2.10	A
EB7A-4-I	12	6	100	150	87	93	5 14/16	3 7/16	3 11/16	2.28	A
EB7A-4-QT	12	6	110	150	87	93	5 14/16	3 7/16	3 11/16	2.52	A
EBZ7-3-1	12	6	90	113	70	105	4 7/16	2 12/16	4 2/16	2.13	A
EBZ7-3-2	12	6	90	113	70	105	4 7/16	2 12/16	4 2/16	2.13	A
EBZ6.5-3	12	6.5	105	113	70	121	4 7/16	2 12/16	4 12/16	2.34	A
EB7B-4-1	12	6.5	90	150	66	93	5 14/16	2 10/16	3 11/16	2.30	A
EB7B-4-1(J)	12	6.5	70	150	66	93	5 14/16	2 10/16	3 11/16	2.15	A
EB7E-3(J)	12	7	65	135	75	123	5 5/16	2 15/16	4 13/16	2.55	B
EBZ8-3	12	7	95	113	70	130	4 7/16	2 12/16	5 2/16	2.35	A
EB8-4-1	12	8	110	135	75	133	5 5/16	2 15/16	5 4/16	2.90	A
EB8-3-1	12	8	110	135	75	133	5 5/16	2 15/16	5 4/16	2.90	A
EB8-4-3(J)	12	8	85	135	75	133	5 5/16	2 15/16	5 4/16	2.67	B
EB9-4-I	12	8	110	150	87	105	5 14/16	3 7/16	4 2/16	2.85	A
EB9B-4-1	12	8	115	150	70	105	5 14/16	2 12/16	4 2/16	2.78	A
EB9B-4-1(J)	12	8	90	150	70	105	5 14/16	2 12/16	4 2/16	2.58	A
EBZ10-4-1	12	8.6	150	150	88	93	5 14/16	3 7/16	3 11/16	3.15	A
EBZ10-4-2	12	8.6	150	150	88	93	5 14/16	3 7/16	3 11/16	3.15	A
EBZ10-4-1(J)	12	8.6	120	150	88	93	5 14/16	3 7/16	3 11/16	2.95	A
EB9A-4-1	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.08	A
EB9A-4-2	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.05	B
EB9A-4-2(J)	12	8.5	70	135	75	139	5 5/16	2 15/16	5 8/16	2.85	B
EB10-3	12	10	120	133	90	142	5 4/16	3 9/16	5 9/16	3.68	A
EB12-4(J)	12	10	130	150	87	130	5 14/16	3 7/16	5 2/16	3.62	A
EB12-4-P	12	11	180	150	87	130	5 14/16	3 7/16	5 2/16	3.92	A
EB12A-4-1	12	10	145	150	88	105	5 14/16	3 7/16	4 2/16	3.29	A
EB12B-4-1	12	10	165	150	70	130	5 14/16	2 12/16	5 2/16	3.59	A
EB12B-4-1(J)	12	10	120	150	70	130	5 14/16	2 12/16	5 2/16	3.39	A
EBZ12-4-1	12	11	210	150	88	110	5 14/16	3 7/16	4 5/16	3.81	A
EBZ14-4-1	12	11.2	210	150	88	110	5 14/16	3 7/16	4 5/16	3.83	A
EBZ14-4-1(J)	12	11.2	170	150	88	110	5 14/16	3 7/16	4 5/16	3.59	A
EBZ14-4-2	12	11.2	210	150	88	110	5 14/16	3 7/16	4 5/16	3.82	A
EB12E-3	12	12	135	134	81	160	5 4/16	3 3/16	6 5/16	3.88	B
EB12E-3(J)	12	12	110	134	81	160	5 4/16	3 3/16	6 5/16	3.60	B
EB12E-4	12	12	135	134	81	160	5 4/16	3 3/16	6 5/16	3.88	B
EB12E-4(J)	12	12	110	134	81	160	5 4/16	3 3/16	6 5/16	3.60	B
EB12E-3-1	12	12	135	134	81	160	5 4/16	3 3/16	6 5/16	3.89	A
EB12E-4-1	12	12	135	134	81	160	5 4/16	3 3/16	6 5/16	3.89	A
EB14C-4-I	12	12	170	150	87	145	5 14/16	3 7/16	5 11/16	4.15	A
EB14C-3-P	12	12	200	150	87	145	5 14/16	3 7/16	5 11/16	4.44	A
EB14C-4-P	12	12	200	150	87	145	5 14/16	3 7/16	5 11/16	4.44	A
EB14A-3	12	12	220	133	90	164	5 4/16	3 9/16	6 7/16	4.40	A
EB14A-3(J)	12	12	170	133	90	164	5 4/16	3 9/16	6 7/16	4.20	A
EB14A-4	12	12	220	133	90	164	5 4/16	3 9/16	6 7/16	4.40	A
EB14A-4(J)	12	12	170	133	90	164	5 4/16	3 9/16	6 7/16	4.20	A
EB14B-4-1	12	12	175	150	70	145	5 14/16	2 12/16	5 11/16	4.10	A
EB14B-4-1(J)	12	12	140	150	70	145	5 14/16	2 12/16	5 11/16	3.88	A
EB16-4	12	14	215	150	87	161	5 14/16	3 7/16	6 5/16	5.02	A
EB20-3	12	18	250	175	87	155	6 14/16	3 7/16	6 2/16	5.91	A
EB20-3(J)	12	18	220	175	87	155	6 14/16	3 7/16	6 2/16	5.60	A
EB20CH-4	12	18	230	150	87	161	5 14/16	3 7/16	6 5/16	5.53	A
EB22-3	12	18	230	186	82	171	7 5/16	3 4/16	6 12/16	5.55	G
EB20H-3-P1	12	18	310	175	87	155	6 14/16	3 7/16	6 2/16	6.15	A
EB16B-3-1	12	19	220	175	100	155	6 14/16	3 15/16	6 2/16	6.30	A
EB16B-4-1	12	19	220	175	100	155	6 14/16	3 15/16	6 2/16	6.30	A
EBU1-4-P	12	25	330	195	125	176	7 11/16	4 15/16	6 15/16	8.34	G
EBU1R-4-P	12	25	330	195	125	176	7 11/16	4 15/16	6 15/16	8.34	G
EBU1-4-P1	12	23	300	195	125	176	7 11/16	4 15/16	6 15/16	8.00	G
EBU1R-4-P1	12	23	300	195	125	176	7 11/16	4 15/16	6 15/16	8.00	G

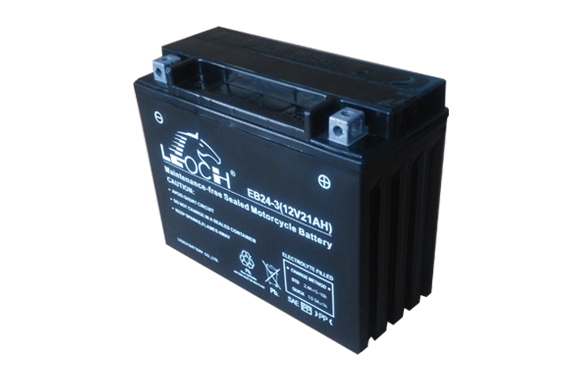

EB24-3-1	12	21	330	205	87	162	8 1/16	3 7/16	6 6/16	7.00	A
EB24A-3(J)	12	24	220	184	124	170	7 4/16	4 14/16	6 11/16	7.64	G
EB24A-4(J)	12	24	220	184	124	170	7 4/16	4 14/16	6 11/16	7.64	G
EB24A-3	12	24	280	184	124	170	7 4/16	4 14/16	6 11/16	8.15	G
EB24A-4	12	24	280	184	124	170	7 4/16	4 14/16	6 11/16	8.15	G
EB30A-3(J)	12	30	325	184	124	170	7 4/16	4 14/16	6 11/16	8.55	G
EB30A-4(J)	12	30	325	184	124	170	7 4/16	4 14/16	6 11/16	8.55	G
EB30-3-1	12	30	385	166	126	173	6 9/16	4 15/16	6 13/16	9.38	A
EB30-3-1(J)	12	30	330	166	126	173	6 8/16	4 15/16	6 13/16	8.88	A
EB30-3-I	12	24	300	166	126	173	6 9/16	4 15/16	6 13/16	8.60	A
EB12D-4	12	11	180	150	87	130	5 14/16	3 7/16	5 2/16	4.25	O
EB14D-4	12	13	200	150	87	145	5 14/16	3 7/16	5 11/16	4.76	O
EB14E-4	12	13	245	150	87	145	5 14/16	3 7/16	5 11/16	5.30	O
JB14-4	12	13	200	150	87	145	5 14/16	3 7/16	5 11/16	4.62	K
MB14-4	12	13	210	150	87	145	5 14/16	3 7/16	5 11/16	4.80	M

Parameter information subject to the contract, here for your reference only.

1.Injection molding structure of battery terminal and battery cover.

2.Sealing structure of PP materials.

3.High capacity ,Long life.

4.High CCA and good starting performance.

5.Good charging acceptance and vibration resistant performance.

6.Application of AGM technology.

7.Application of COS and TTP.

8.Advanced sulfate-resistant technology.

9.Advanced calcium lead alloy technology, maintenance-free design.

10.Dependable design of leakage resistant and valve regulated sealing.

11.Wet charged design, long storage time and can be used at any time you want.

12.full ranges models, good appearance and high standard design.

1. ATV.
2. Jet ski.
3. Motorcycle.
4. Snowmobile.
5.Lawn & Garden.
